1150 - 57
C
ONFIGURATION
Controller 1 (2 to 4) / Configuration
The setpoint limits are not effective if the setpoint is set by the pc via the interface.
In case of correction of an external setpoint the limitation is valid for the sum of both
(setpoint + correction).
Value / selection Description

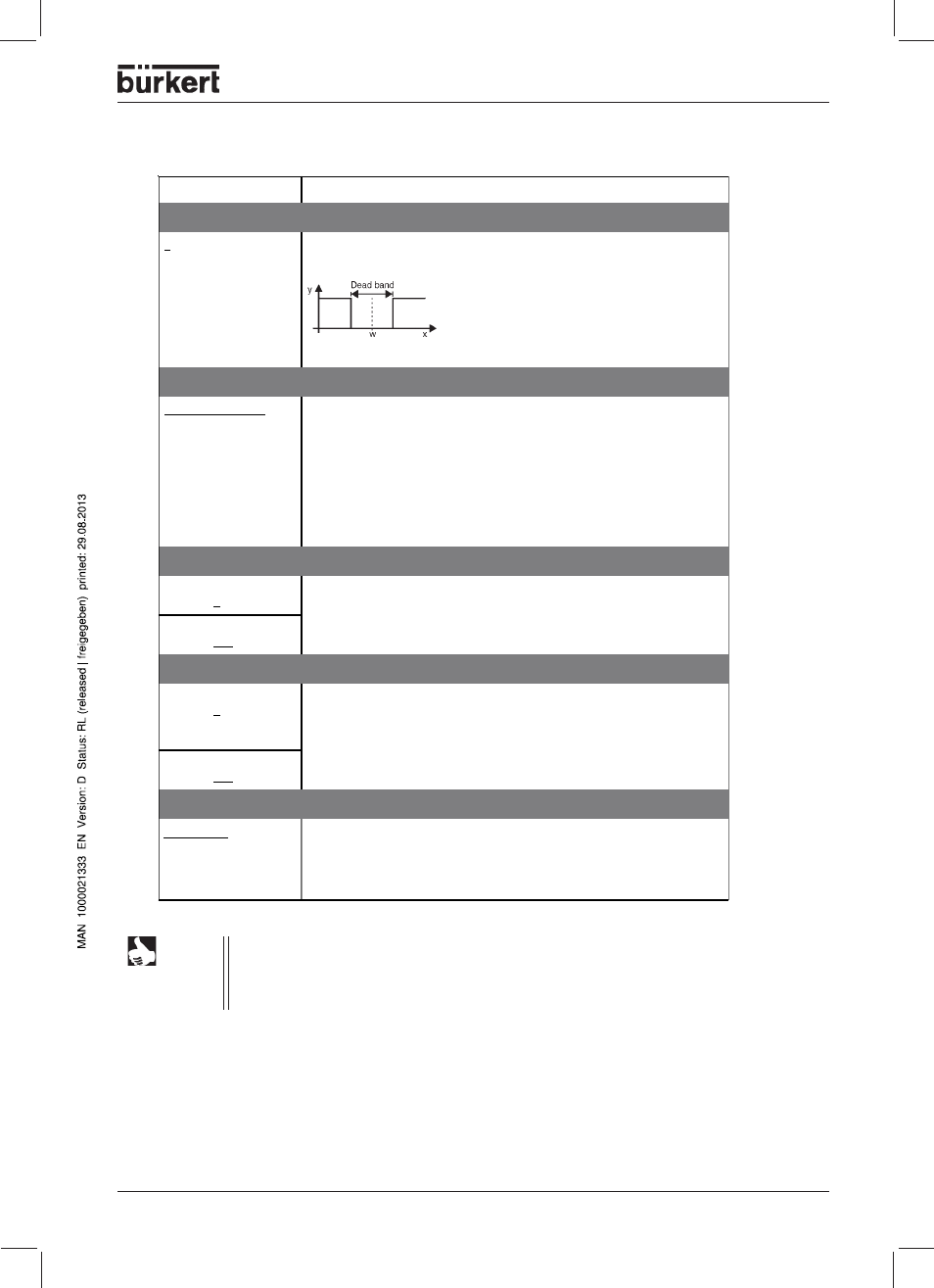

Dead band
0 to 100 The output movement is suppressed within the dead band;
e.g. with noisy signals.
The dead band is only effective for controller structures with an I-component.
External setpoint
without correction
with correction External setpoint input without correction
External setpoint input with correction
External setpoint with correction:
External setpoint + seponit 1 = present setpoint
The external setpoint is corrected up or down from the keypad (setpoint 1). The
display shows the present setpoint.
Activating the function:
Controller 1 / Inputs / External setpoint
Setpoint
Start value
- 1999 to 0 to + 9999 Setpoint limiting prevents the input of values outside the defined range.
End value
- 1999 to 400 to + 9999
Output level
Start value
- 1999 to 0 to + 9999 Output standardization for cascade control:
If the controller channel serves as a master controller, then the controller output
signal (output 0 to 100 %) must be scaled to match the setpoint range of the
slave controller.
End value
- 1999 to 100 to + 9999
Cascade controller
No function
Master controller 1
Slave controller 1
Master controller 2
Slave controller 2 Activates cascade control and defines the control channel as a master or slave
controller for cascade 1 or 2.
NOTE
