11.13.2 end position leDs
The end positions are displayed optically by colored LEDs.
The following functions are shown as standard
color Device status
green end position LED on End position bottom
yellow end position LED on End position top
Table 25: Assignment of the end position LEDs - DeviceNet
End position LED green
Device status LED (two-colored: red/green)
End position LED yellow
Bus LED (two-colored: red/green)
Valve LED yellow (pilot valve)
Status LED (yellow)

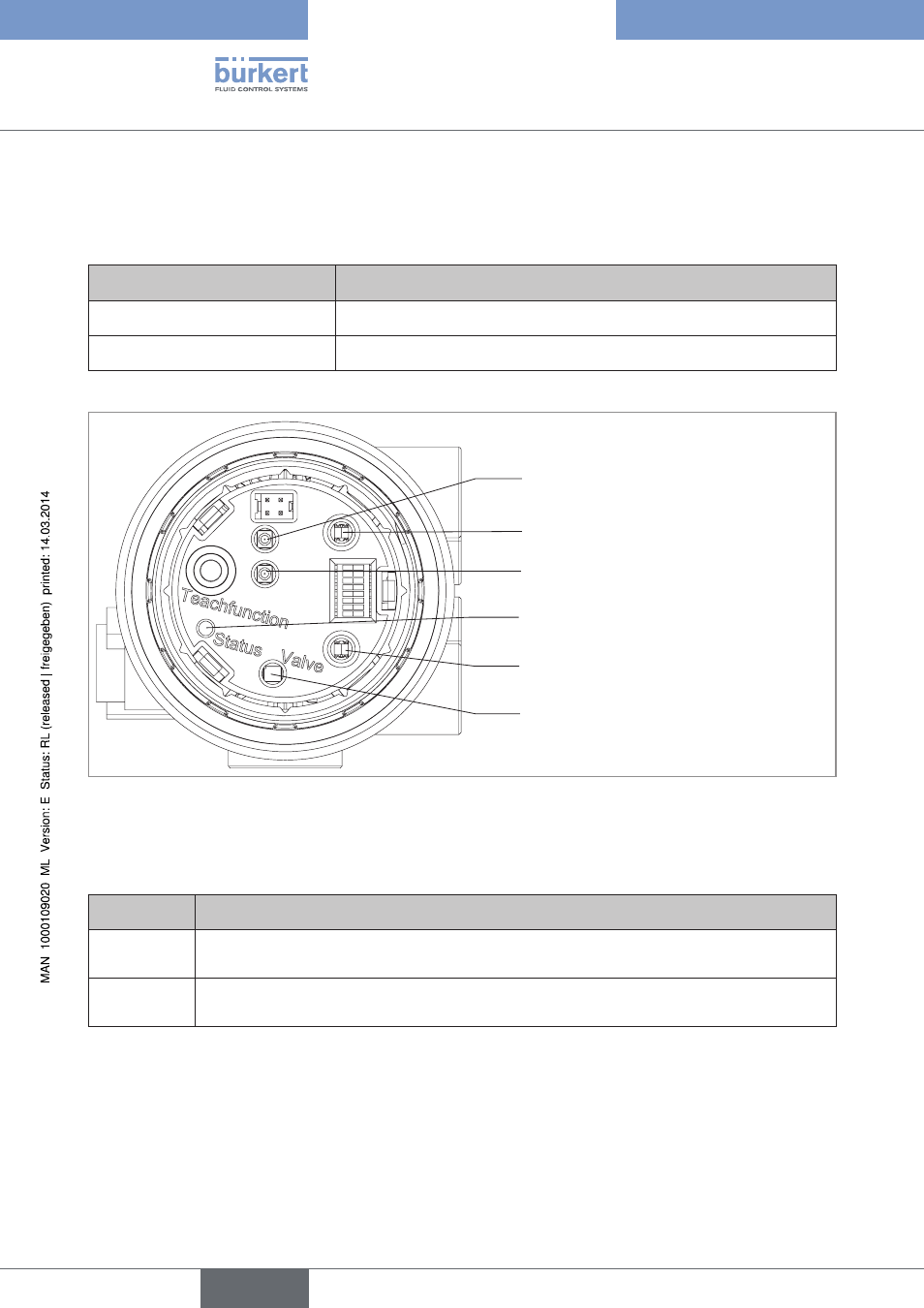

Figure 47: Display elements - DeviceNet
11.13.3 status leD yellow
leD yellow
flashing Teach function is running
flickers
Puck not available
→ Insert puck
Table 26: Status LED yellow - DeviceNet
11.13.4 Valve leD yellow
The yellow valve LED indicates whether the pilot valve is actuated (LED is lit yellow).
