Installation
2. install control head
Guide rail
Puck
Guide rail
Puck

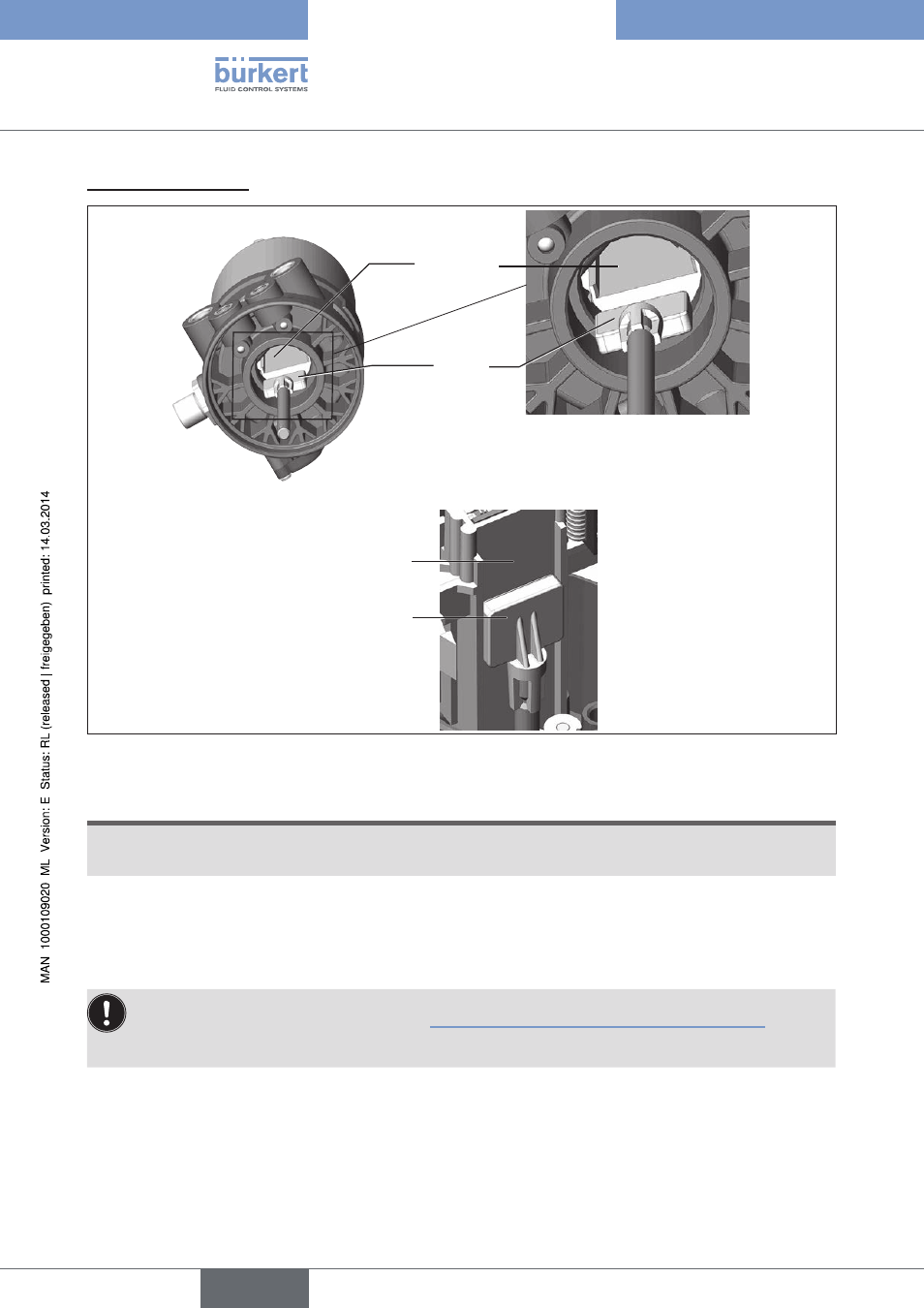

Figure 11: Aligning the puck, series 20xx
noTe!
Damaged printed circuit board or malfunction.
▶ Ensure that the puck is situated flat on the guide rail.
→
Push the control head onto the actuator. The puck must be aligned in such a way that it is inserted into the
guide rail of the control head.
→
Press the control head all the way down as far as the actuator and turn it into the required position.
Ensure that the pneumatic connections of the control head and those of the valve actuator are situated
preferably vertically one above the other (see “Figure 12: Installing the control head, series 20xx”).
If they are positioned differently, longer hoses may be required other than those supplied in the accessory
kit.
