14
Technicaldata
6.5 Type label
Example:
8695 24 V/DC
single act Pilot 0,6
Pmax 7 bar
Tamb 0°C - +55°C
S/N 001000
00185114
D-74653
Ingelfingen
W14UN
ce
Identification number
Supply voltage / Control
Max. operating pressure
Type Control function - Pilot valve
Bar-code
Serial number - CE mark
Max. ambient temperature

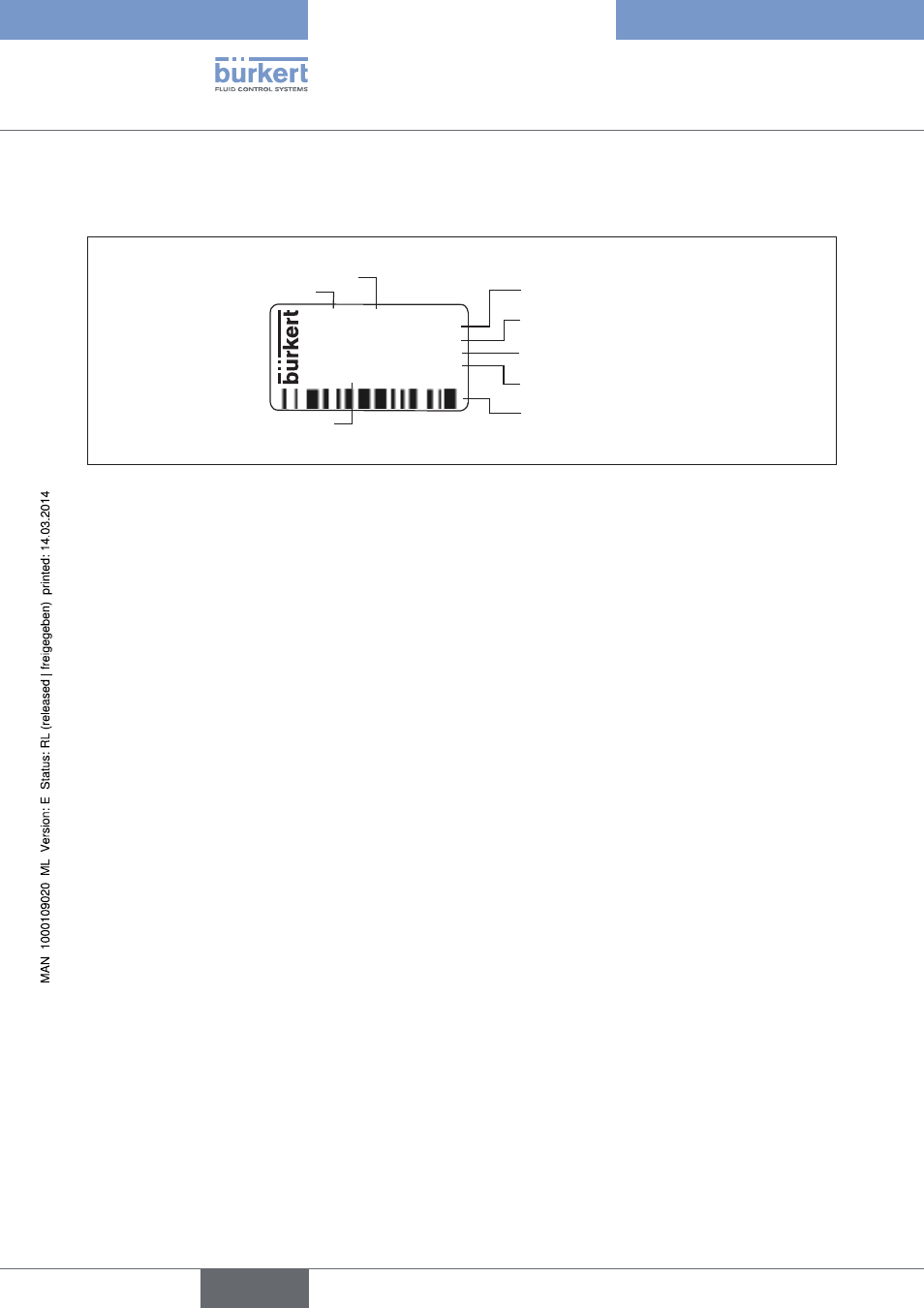

Figure 3: Type label (example)
6.6 pneumatic data
Control medium neutral gases, air
Quality classes in accordance with DIN ISO 8573-1
Dust content Class 5 max. particle size 40 µm, max. particle density 10 mg/m³
Water content Class 3 max. pressure dew point
- 20 °C or min. 10 °C below the lowest operating temperature
Oil content Class 5 max. 25 mg/m³
Temperature range -10 – +50 °C
Pressure range 3 – 7 bar
Air output of pilot valve 7 l
N
/ min (for aeration and deaeration)
(Q
Nn
- value according to definition for pressure drop from 7 to 6 bar absolute)
Connections 21xx (Element) Plug-in hose connector ∅ 6 mm / 1/4“
Socket connection G 1/8
20xx (Classic) Socket connection G 1/8
with M5 connection for connecting to the actuator
