26
Installation
Danger!
risk of injury from high pressure in the equipment/device.
▶ Before working on equipment or device, switch off the pressure and deaerate/drain lines.
Procedure:
→
Clamp valve body in a holding device (only required if the process valve has not yet been installed).
→
Control function A: Open process valve.
Actuator module
Hexagon
Nipple
Series 2100 and 2101
Nipple
Hexagon
Series 2000 and 2012

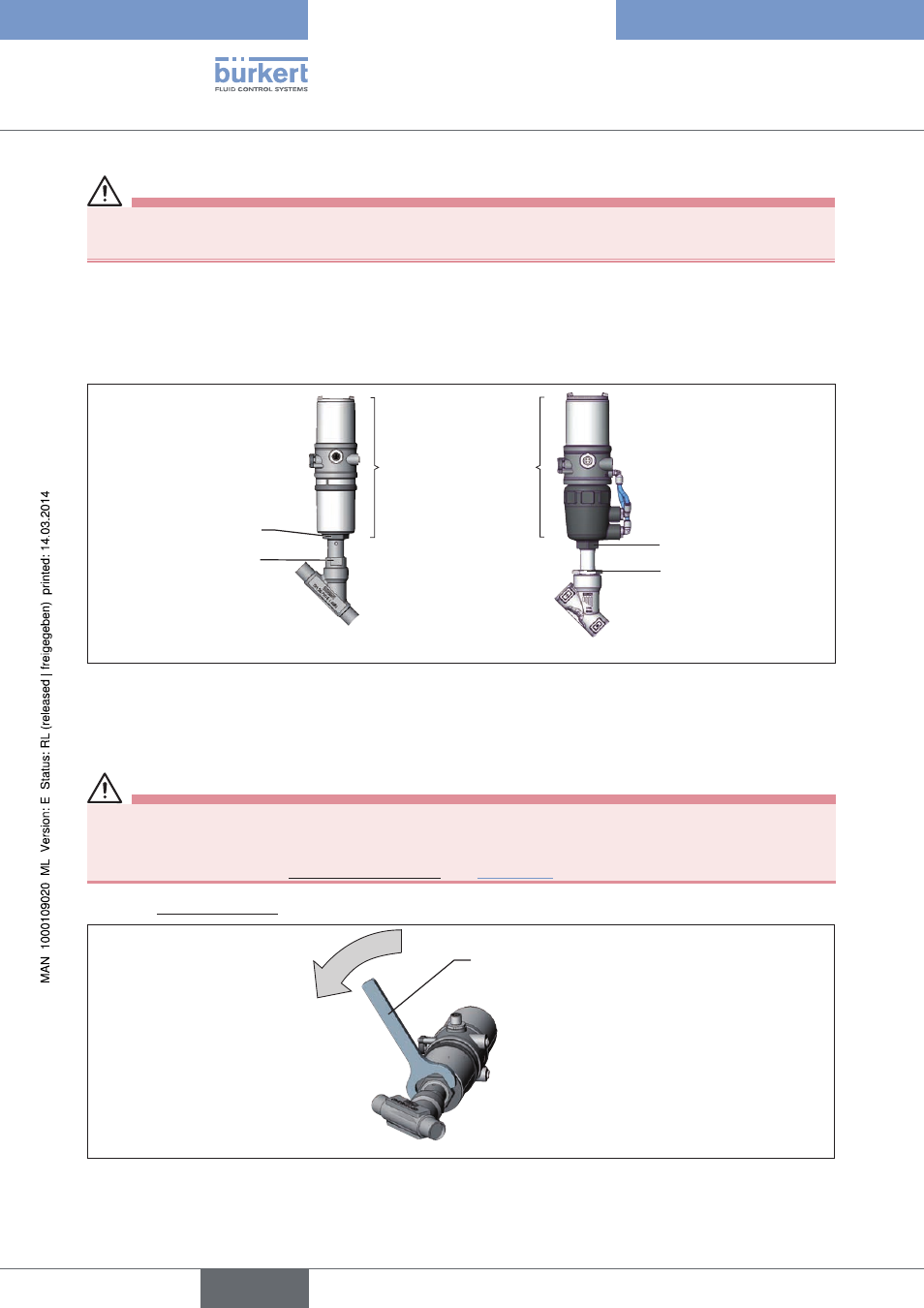

Figure 14: Rotating the actuator module
→
Using a suitable open-end wrench, counter the wrench flat on the pipe.
→
Place suitable open-end wrench on the hexagon of the actuator.
Warning!
risk of injury from discharge of medium and pressure.
If the direction of rotation is wrong, the body interface may become detached.
▶ Rotate the actuator module counter-clockwise only (see “Figure 15”).
→
Rotate counter-clockwise (as seen from below) to bring the actuator module into the required position.
Open-end wrench
Figure 15: Rotating with open-end wrench
english
Type 8695
