38
AS-Interfaceinstallation
10.4 electrical installation as-interface
10.4.1 safety instructions
Danger!
risk of electric shock.
▶ Before working on equipment or device, switch off the power supply and secure to prevent reactivation.
▶ Observe applicable accident prevention and safety regulations for electrical equipment.
Warning!
risk of injury from improper installation.
▶ Installation may be carried out by authorized technicians only and with the appropriate tools.
risk of injury from unintentional activation of the system and an uncontrolled restart.
▶ Secure system from unintentional activation.
▶ Following installation, ensure a controlled restart.
10.4.2 connection with circular plug-in connector m12 x 1, 4-pole,
male
→
Connect the control head according to the table.
Bus connection (circular plug M12 x 1, 4-pole, male)
4
1
3
2
Bus -
NC
NC
Bus +

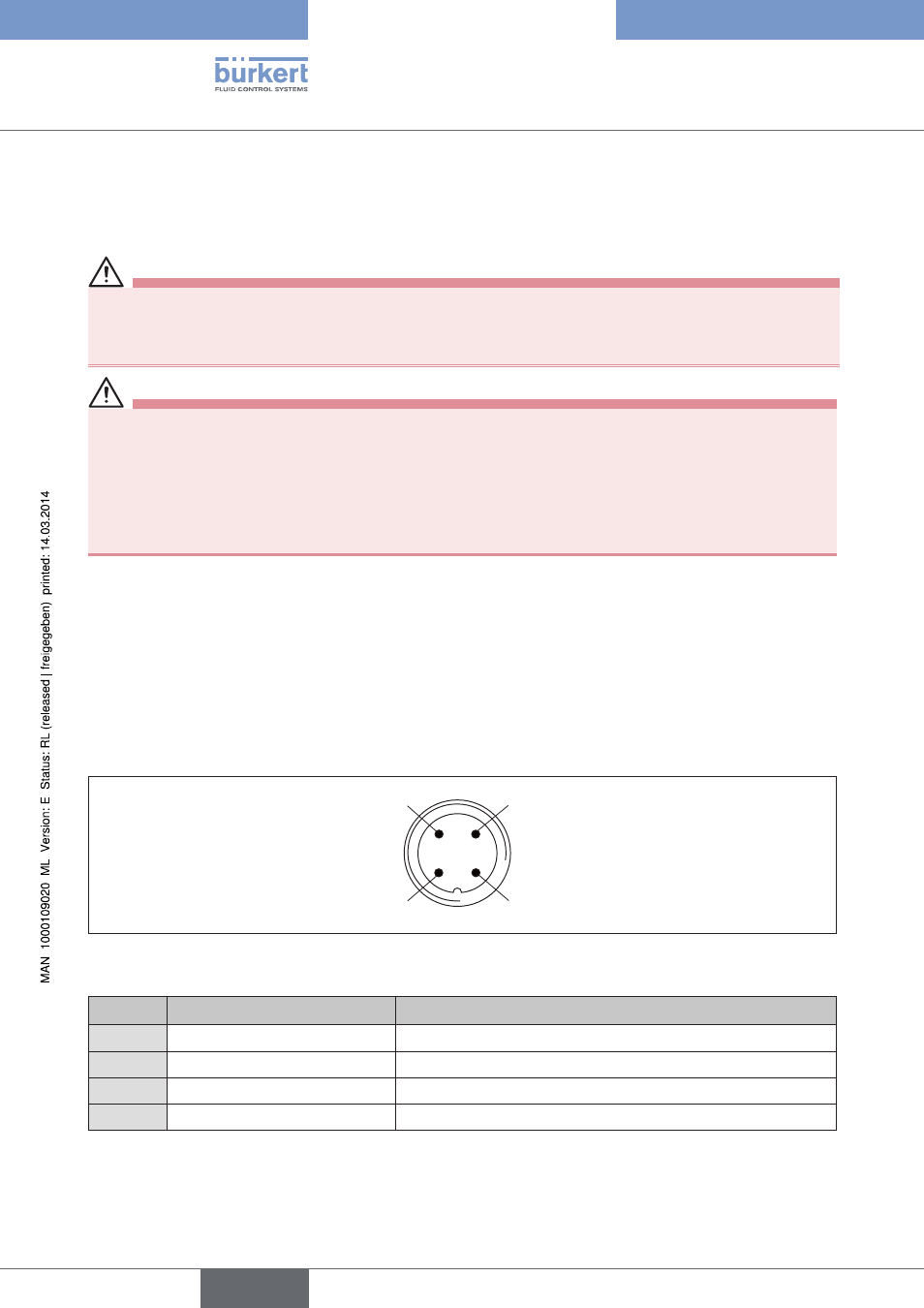

Figure 26: Circular plug M12 x1, 4-pole
pin Designation configuration
1 Bus + AS-Interface bus line +
2 NC not used
3 Bus – AS-Interface bus line -
4 NC not used
Table 8: Pin assignment of circular plug-in connector for AS-Interface
english
Type 8695
