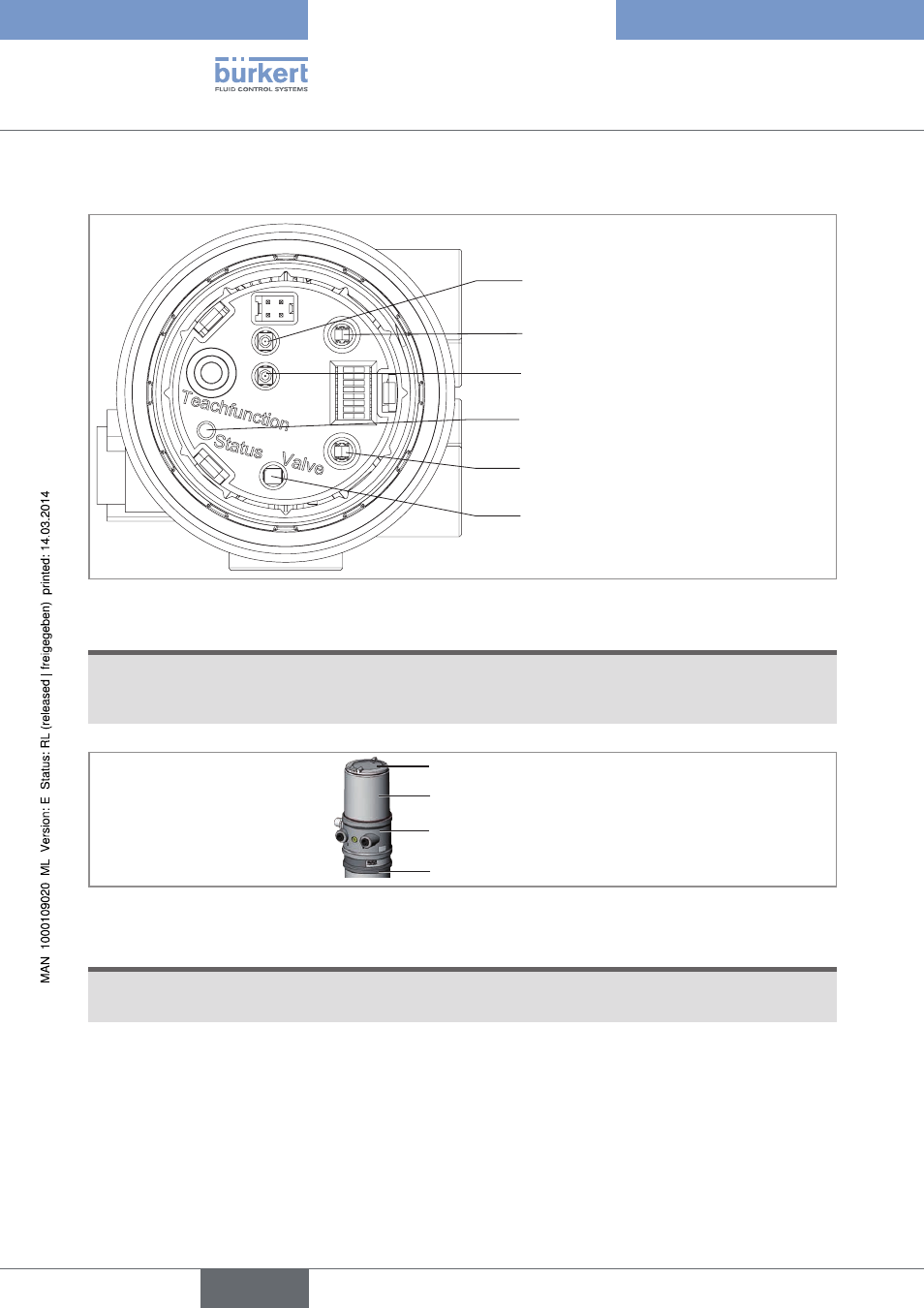

11.13 Display elements Devicenet
End position LED green
Device status LED (two-colored: red/green)
End position LED yellow
Bus LED (two-colored: red/green)
Valve LED yellow (pilot valve)
Status LED (yellow)
Figure 45: Display elements - DeviceNet
noTe!
Breakage of the pneumatic connection pieces due to rotational impact.
▶ When unscrewing and screwing in the transparent cap, do not hold the actuator of the process valve but the
connection housing.
Body casing
Connection housing
Actuator
Transparent cap
Figure 46: Open control head
noTe!
Damage or malfunction due to penetration of dirt and humidity.
▶ To observe degree of protection IP65 / IP67, screw the transparent cap in all the way.
