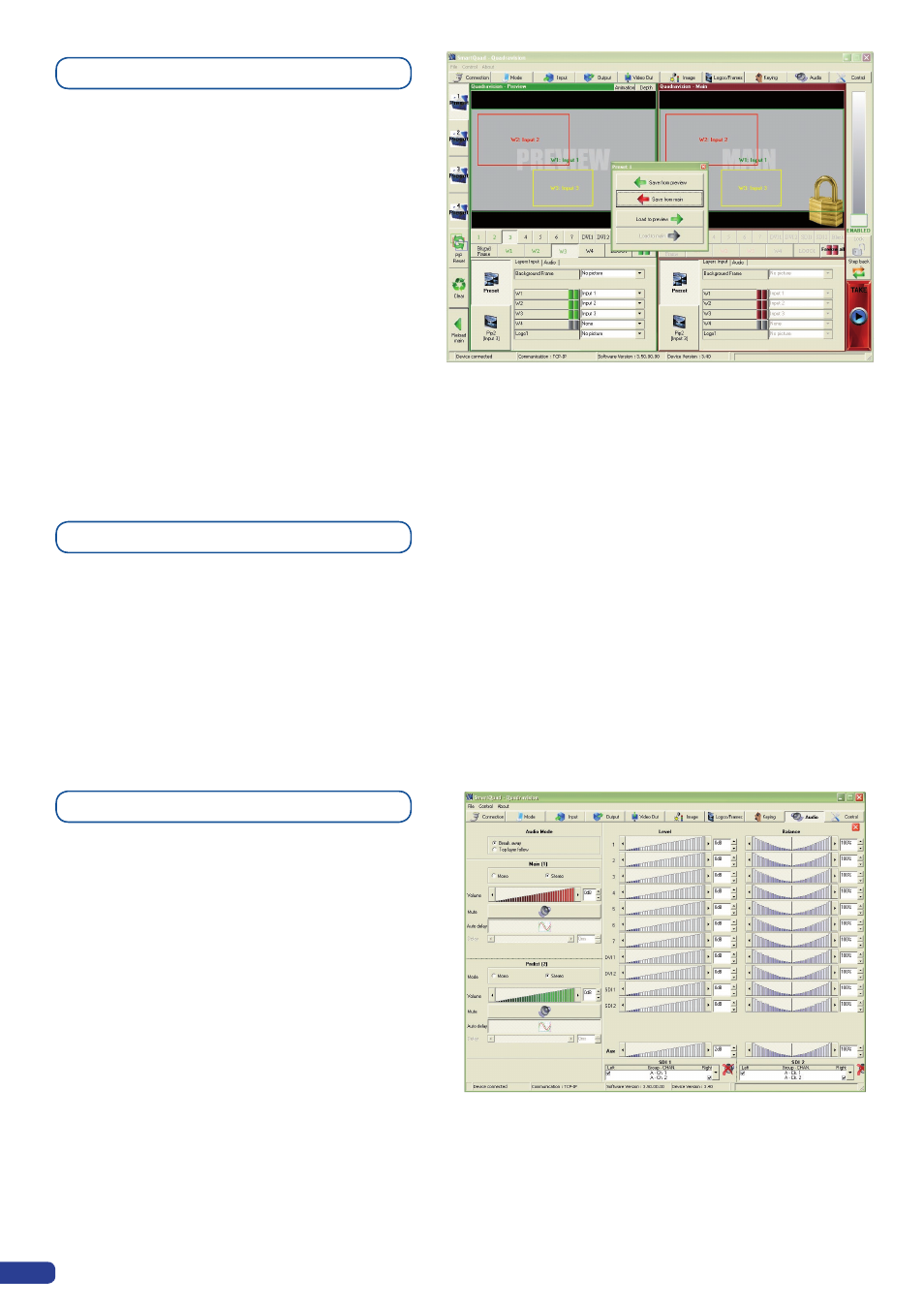

Working with Presets
The four SQD200 user presets can be called back
at any stage during your show or event.
1. Click on one of the four available Preset
buttons to choose which memory you wish
to use. Select Load to Preview from the
dropdown menu, your preset will appear on
the Preview screen.
2. Once you have selected your preset, simply
click on the [TAKE] button to view the result
on your Main screen.
Working with Audio
The SQD200 allows to work with up to 9 stereo inputs, 1 auxiliary input, and 2 embedded SDI audio inputs
(via the SDI BNC connectors), all accessible via the Audio menu of the SQD200 , and which can be affected
to one or both of the 2 independent symetrical/asymetrical outputs of the device.
To configure audio settings of the SQD200 , plug all
audio inputs into the device, and click on the Audio
tab of the RCS home page.
1. Set the Main audio output level and delay
(accessible only if Delay Mode is set to Manual
Adjust), or click on the Mute button to mute Main
audio output.
2. Repeat step 2 for the Prelist audio output.
3. Individual source settings (level and balance)
for each audio input can be configured in the
right hand section of the Audio tab.
Audio configuration
60
