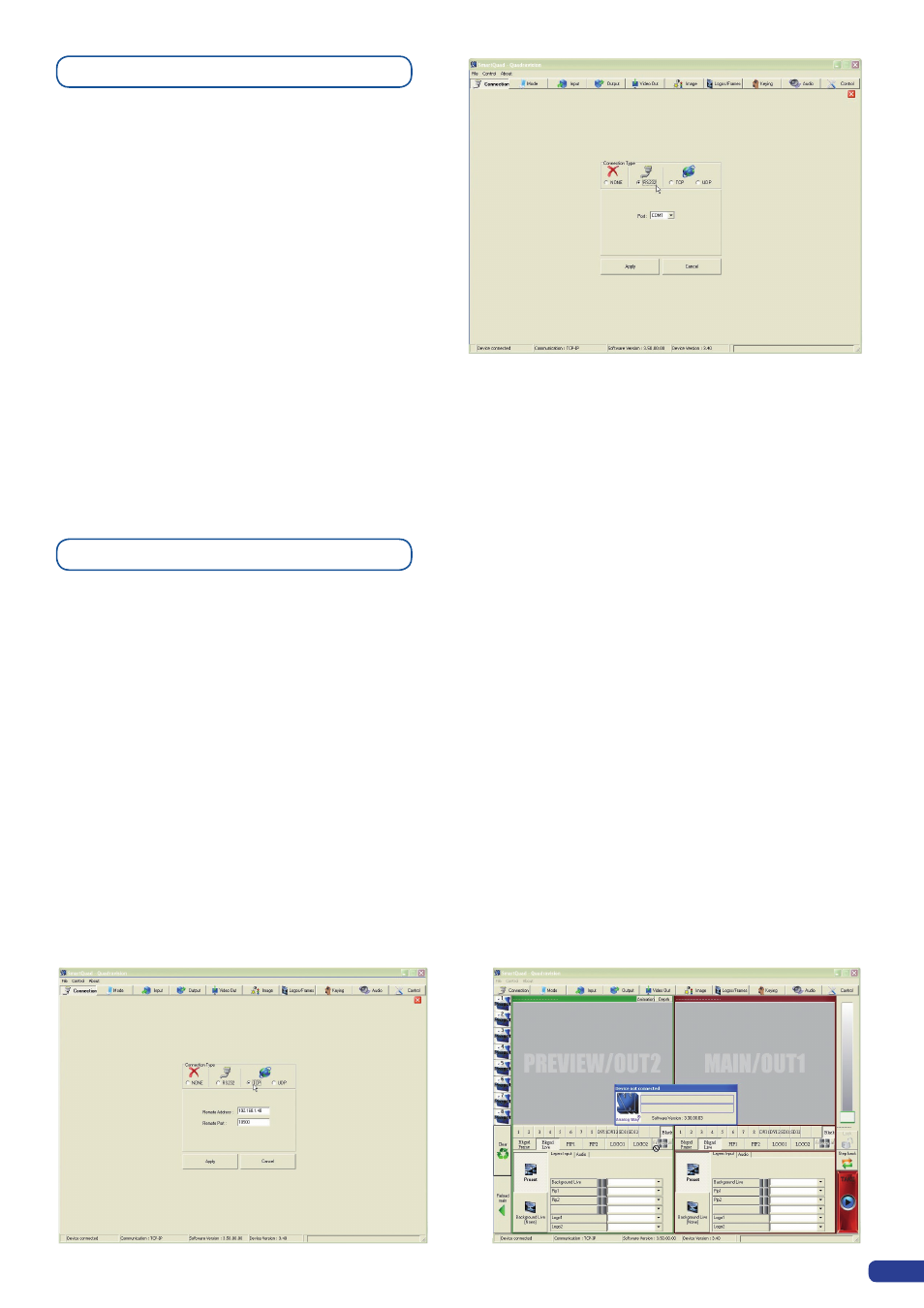

Serial connection
1. Connect a RS-232 cable between the SQD200
and your PC, then power on your devices.
2. Click on the RCS program file on your PC to run
the software.
3. Check the connection type to RS-232 into the
control menu of the unit into the RS-232/LAN menu
4. Click on the “Connections” tab and select RS-232
as the connection type. In the drop-down menu,
select the COM port number corresponding to the
connected device (default is Port Com 1).
5. Click apply, and wait for devices to synchronize. The RCS will display the following connection message:
“Device Connected”.
6. Click on the “Connections” tab to return to the main screen.
Ethernet connection
1. Connect a crossed RJ45 cable between the SQD200 and your PC, then power on your devices. Use a
straight RJ45 cable if connecting through a network switcher.
2. Click on the RCS program file on your PC to run the software.
3. Check the connection type to LAN into the control menu of the unit into the RS-232/LAN menu
4. Click on the “Connections” tab and select LAN as the connection type.
5. In the “Remote Address” field, enter the IP address of the SQD200 you wish to control.
6. In the “Remote Port” field, enter the remote port number of the SQD200 you wish to control.
7. Click Apply, and wait for devices to synchronize. The RCS will display a connection message.
8. Click on the “Connections” tab to return to the main screen.
