The RCS software for your

SQD200

can be viewed as the software version of the

SQD200

front panel menu

section. It allows you to quickly access all of the

SQD200

functions via a single page interface, and easily edit

your settings directly from your laptop or PC.

Before starting with the RCS software, you must establish a connection from your laptop to the

SQD200

you

wish to run.

The RCS software for your

SQD200

is composed of several easily identified sections.

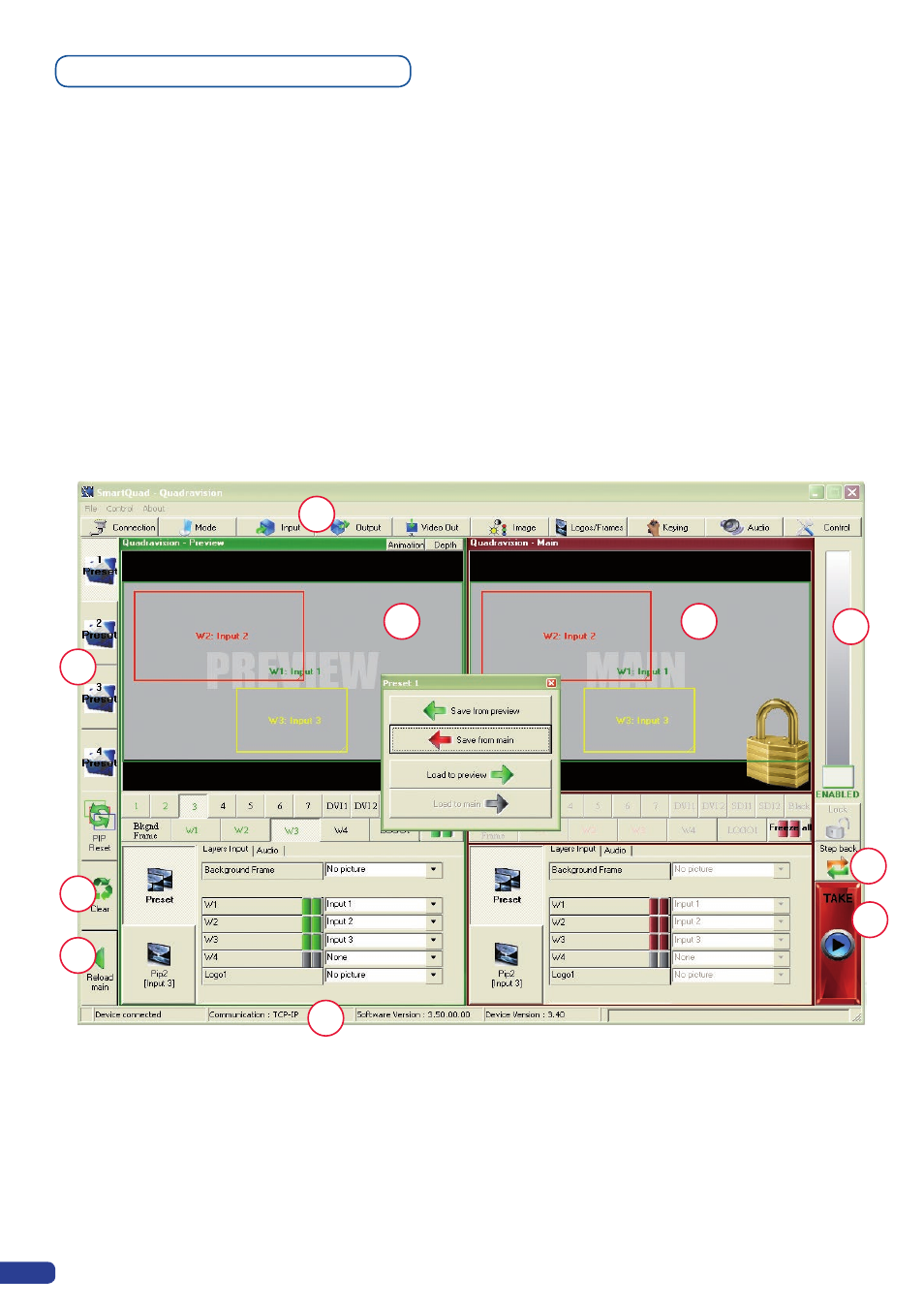

The tabs menu (1) allows you to navigate through the equivalent of the

SQD200

front panel menu items (see

also “The

SQD200

Menu” p.28).

The green window of the RCS (2) represents your Preview window and can be used to parameter sources,
frames, layers and logos directly by clicking on the corresponding button, then navigating through the different
available tabs. The red window of the RCS (3) represents your Main window, and can also be used much like
the front panel of the

SQD200

. Create user presets directly in the Preview window, by clicking on one of the

four available Preset icons (4) and setting up your preset in the Preview window.
Clear unwanted current Preview Preset with the

[CLEAR]

button (5), reload a fresh copy of your screen via

the

[RELOAD MAIN]

button (6), make smooth takes directly with your mouse or trackpad with the virtual T-bar

(7). The

[TAKE]

button (9) will allow you to view any changes made to your preview screen on your main

screen, Analog Way engineers have even implemented a

[STEPBACK]

button (8) to quickly return to your

previous setup in case of a manipulation error.
The status section (10) allows for easy monitoring of the connection status.

Software overview
