Analog Way Smart Quad User Manual
Page 18

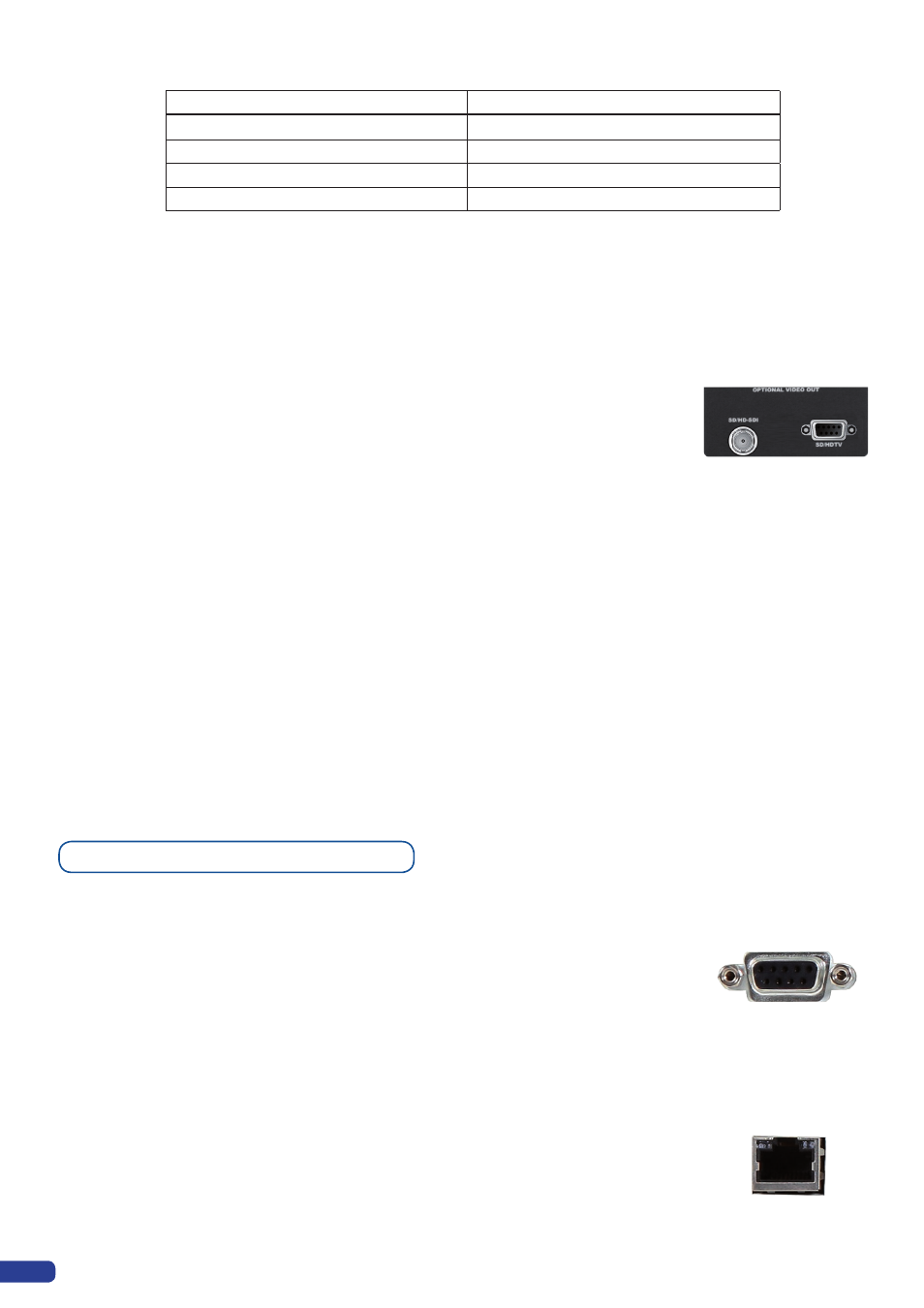

• VIDEO OUT
Connectors:
1 x female DB9, 1 x female BNC
SD-SDI:
Female BNC.
Formats:
SMPTE 259M-C.
Data rate:
270 Mbps serial digital.
Impedance:
75 ohms.
HD-SDI:
Female BNC.
Formats:
720p @ 50, 59.94 & 60 Hz.
1035i @ 59.94 & 60 Hz.
1080i @ 50, 59.94 & 60 Hz.
1080p @ 23.97, 24, 25, 29.97, 30 Hz & 60 Hz.
1080sF @ 50, 59.94 & 60 Hz.
Data rate:
1.54 Gbps serial digital - SMPTE 292M.
2.97 Gbps serial digital - SMPTE 424M (3G-SDI).
SD-HDTV:
Female DB9 (non-standard cable - Ref.: AW10120)
Formats:
SDTV (PAL & NTSC) - EDTV (480p 1 576p)
Impedance:
75 Ohms.
• COMMUNICATION PORTS
REMOTE RS232
Connector:
DB 9 female.
Protocol:
RS232.
Data Rate:
9600 Bauds, 8 data bits, 1 stop bit, no parity bit, no flow control
by default.
DTR & RTS needed for upgrade.
• LAN
Connector:
RJ45.
Protocol:
TCP (Transmission Control Protocol) or UDP.
(User Datagram Protocol).
Ethernet:
Base 10/100.
Communication specifications
16
The video output generates a SDI signal in which is embedded only one stereo audio stream.
Settings
Availability
Gain
Yes: from -
∞
to +18dB
Balanced Audio
Left and Right
Auxiliary Input Mixing
Yes
Adjusting Audio Delay
Yes: from 0 to 80ms (Automatic or Manual)
