Analog Way Smart Quad - Manual (Page 15)

• S.VIDEO:

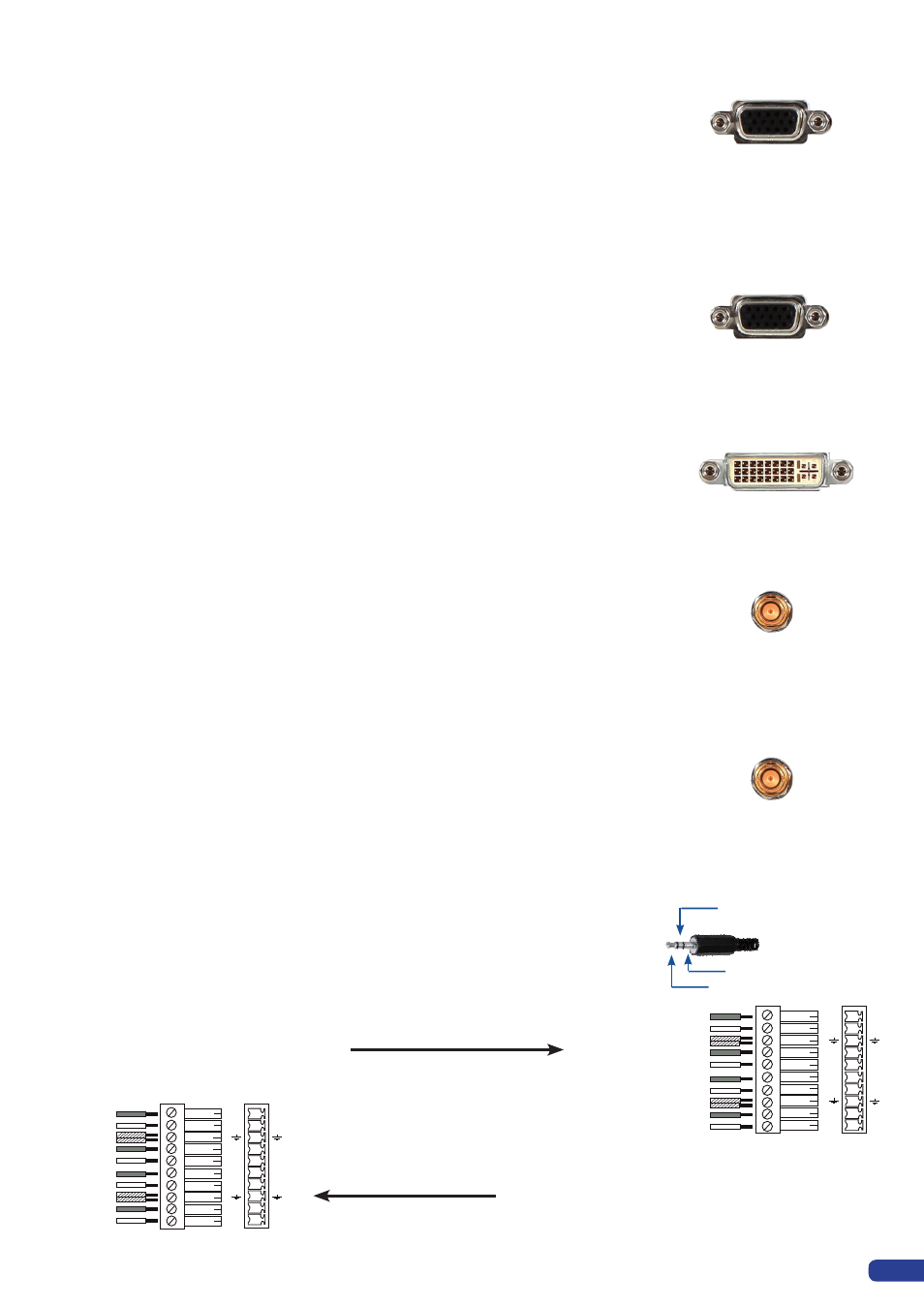

Connectors: Inputs #1 to #5: female HD15.
Inputs #6 & #7: female DVI-I (analog pins).
Standard: PAL/SECAM: 15.625 kHz - 50Hz - 625 lines.
NTSC (3.58 - 4.43 MHz): 15.734 kHz/60Hz/525 lines.
Levels: Y = 1 Vp/p (0.7 V Luma + 0.3 V Sync.).
C = 0.3 Vp/p (Chroma Burst).
Impedance: 75 ohms.
• COMPOSITE VIDEO:
Connectors: Inputs #1 to #5: female HD15.
Inputs #6 & #7: female DVI-I (analog pins).
Standard: PAL / SECAM: 15.625 kHz - 50 Hz - 625 lines.
NTSC (3.58 - 4.43 MHz): 15.734 kHz - 60 Hz - 525 lines.
Level: 1 Vp/p (0.7 V Luma + 0.3 V Sync.).
Impedance: 75 ohms.
• DVI (Digital Video Interface):
Connector: DVI Inputs #1 & #2: female DVI-I (digital pins).
Line frequency: Up to 130 kHz (165 MHz Max pixel rate).
Format: Digital Visual Interface (DVI)-TMDS single link.
Resolution: Up to 1600x1200 @ 165Mhz, 1920x1200px
(RB, Max V size: 1200px, Max H size 2048px).
• SD-SDI:
Connector: SDI Inputs #1 & #2: female BNC.
Formats: SMPTE 259M-C
Data rate: 270 Mbps serial digital.
Impedance: 75 ohms.
• HD-SDI:
Connector: SDI Inputs #1 to #2: female BNC.
Formats: 720p @ 50, 59.94 & 60 Hz
1035i @ 50, 59.94 & 60 Hz
1080i @ 50, 59.94 & 60 Hz
1080p @ 23.97, 24, 25, 29.97, 30, 50, 59.94 & 60 Hz.
1080sF @ 50, 59.94 & 60 Hz.
Data rate: 1.54 Gbps serial digital - SMPTE 292M (Level A).
2.97 Gbps serial digital - SMPTE 424M (3G-SDI) (Level A).
Impedance: 75 ohms.
• AUDIO INPUT:
Connectors: Balanced or unbalanced mono/stereo inputs
(or 10-pin MCO male connector or 3,5mm Jack).
Inputs #1 & #4: 3,5mm Jack Stereo Connector input
(unbalanced connection).
Inputs #5 to #6 and DVI #1 to DVI #2
(or 10-pin MCO male connector) (Unbalanced connection).
13
L
R
L
R
L
R
L
R
5
6
1
2
UNBALANCED
LEFT
LEFT
RIGHT
RIGHT
GROUND(S)
Input #5
Input #6
LEFT
LEFT
RIGHT
RIGHT
GROUND(S)
DVI 1
DVI 2
3.5 mm JACK connector
RIGHT (ring)
LEFT (tip)
GROUND
L+
L-
R+
R-
L+
L-
R+
R-
3
4
3
4
BALANCED
L+
R+
L-
R-
GROUND(S)
L+
R+
L-
R-
GROUND(S)
Inputs #7 and AUX (or 10-pin MCO male connector)
(Balanced connection).
