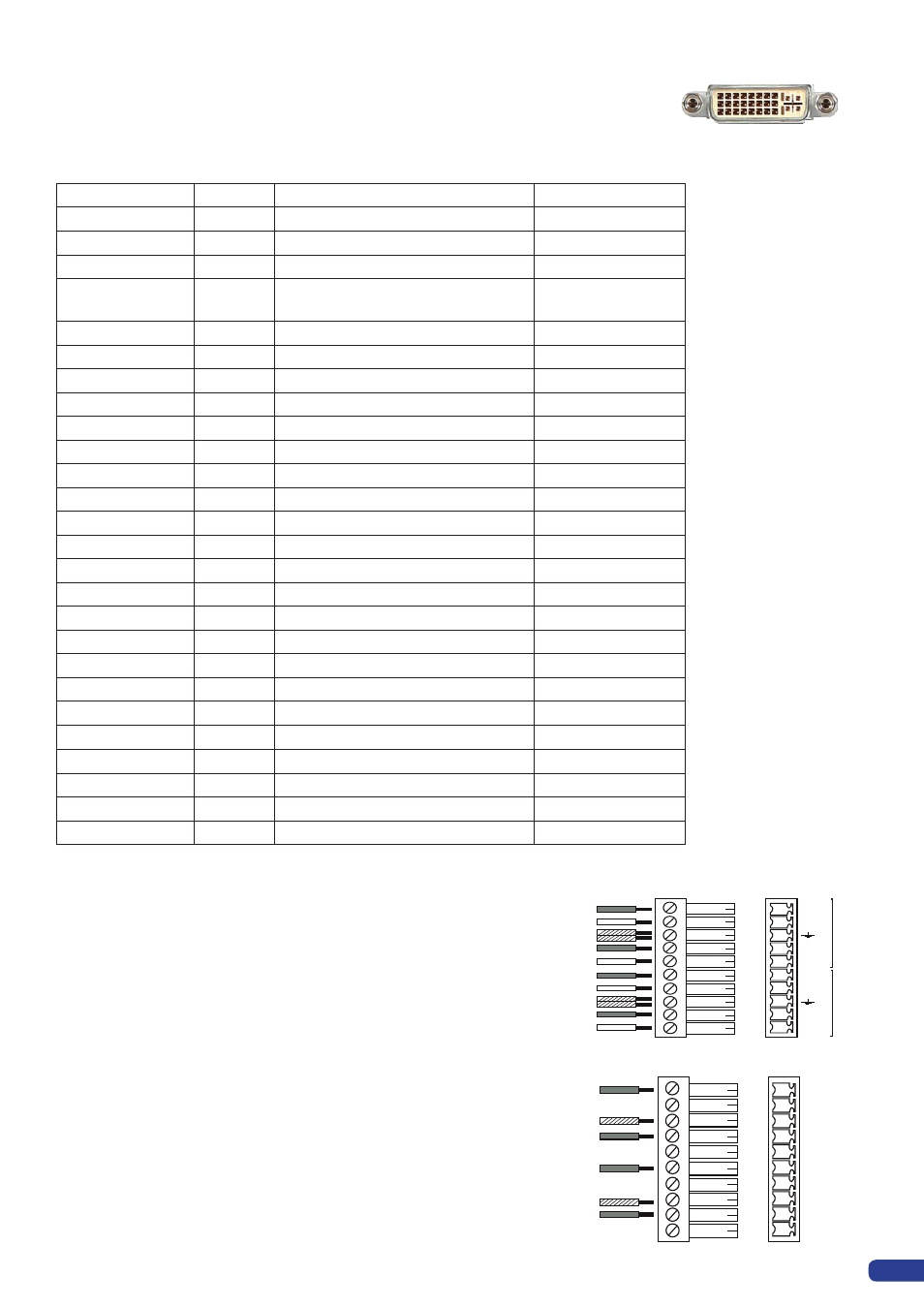

• DVI (Digital Video Interface) OUTPUTS
Connector: Main & Preview: female DVI-I (digital pins).
Signal: Digital Visual Interface (DVI)-TMDS single link.
Resolutions:
• AUDIO OUTPUT
Connector: Main and Prelist:
2 Balanced or unbalanced mono/stereo outputs
(on 10-pin MCO male connector).
Vo max: Unbalanced = +15dBu (at 300Ω load).
Balanced = +21dBu (at 600Ω load).
Zo = 600Ω balanced.
Zo = 300Ω unbalanced.
G = 0 dB nominal.
Outputs #1 to #2: Balanced & unbalanced connection
15
Format Ratio Available Refresh Rates Reduced Blanking
HDTV 720p 50HZ 59.94Hz 60Hz
HDTV 1035i 59.94Hz 60Hz
HDTV 1080i 50Hz 59.94Hz 60Hz
HDTV 1080p 23.97Hz 24Hz 25Hz 29.97Hz 30Hz
50Hz 59.94Hz 60Hz
HDTV 1080sF 50Hz 50.94Hz 60Hz
640 x 480 4 : 3 50Hz 60Hz 72Hz 75Hz
800 x 600 4 : 3 50Hz 60Hz 72Hz 75Hz
848 x 480 16 : 9 50Hz 60Hz 72Hz 75Hz
1024 x 768 4 : 3 50Hz 60Hz 72Hz 75Hz
1280 x 720 16 : 9 50Hz 60Hz
1280 x 768 15 : 9 50Hz 60Hz 72Hz 75Hz
1280 x 800 16 : 10 50Hz 60Hz 72Hz 75Hz
1280 x 1024 5 : 4 50Hz 60Hz 72Hz 75Hz
1360 x 768 16 : 9 50Hz 60Hz 72Hz 75Hz
1366x768 16 : 9 50Hz 60Hz 72Hz 75Hz
1366 x 800 15 : 9 50Hz 60Hz 72Hz 75Hz
1400 x 1050 4 : 3 50Hz 60Hz 72Hz 75Hz
1440 x 900 16 : 10 50Hz 60Hz 72Hz 75Hz
1600 x 1200 4 : 3 50Hz 60Hz
1680 x 1050 16 : 10 50Hz 60Hz
1920 x 1080 16 : 9 50Hz 60Hz 72Hz 75Hz YES
1920 x 1080 B 16 : 9 50Hz 60Hz YES
1920 x 1080 C 16:9 50Hz 60Hz YES
1920 x 1080 HD 16:9 50Hz 60Hz YES
1920 x 1200 16 : 10 50Hz 60Hz YES
2048 x 1080 19 : 10 50Hz 60Hz YES
4
L+
L-
R+
R-
L+
L-
R+
R-
BALANCED
L+
R+
L-
R-
GROUND(S)
L+
R+
L-
R-
GROUND(S)
out
Prelist
out
Main
UNBALANCED
L
R
GROUND
L
R
GROUND
