The SQD200 offers a wide variety of transitions
between the scenes you create for your shows and
events. It allows for live recall of 4 user presets,
each of which you can edit at any given time.

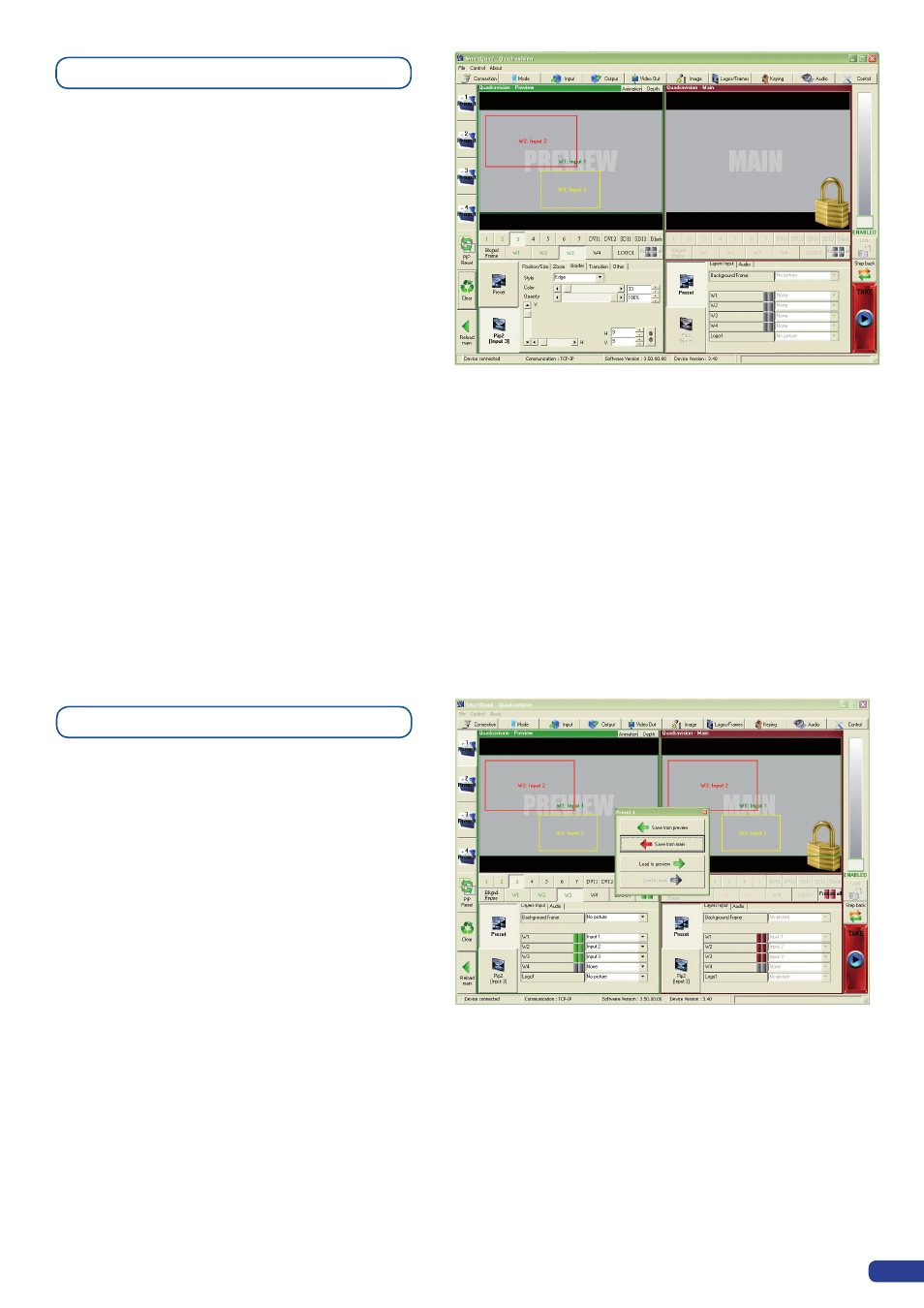

1. In the Layer Selection section, click on the
[W1] button. On your Preview screen, W1 will
appear as a color rectangle. The parameters of
the layer will automatically appear in the RCS
Preview section.
2. At the bottom of the Preview section, click on
the Transition tab, then select the transition type
from the left dropdown menu, and the effect behaviour from the right dropdown menu.
3. Determine effect duration by sliding the duration bar left (shorter) or right (longer), or by manually setting
the value in the duration value box.
4. Repeat the procedure in the Closing Effect tab to determine the way your layer will close.
Layer transitions & effects
Creating Presets
The SQD200 allows the creation of user defined
presets very easily. Any setup you have configured
on screen, can be stored into one of the 4 available
user presets.
1. After having configured layers, PIP transitions,
logos... on your screen (see “Working with the
RCS” chapter), click on one of the four available
Preset buttons.
2. In the dropdown menu, choose Save From
Main or Save From Preview to determine which
screen you want to memorize the preset from.
3. To load a preset in your Preview screen, click on one of the four memorized preset, then click on load to
preview.
4. Click on the [TAKE] button to view your preset on the Main screen.
