Analog Way Smart Quad User Manual

Page 60

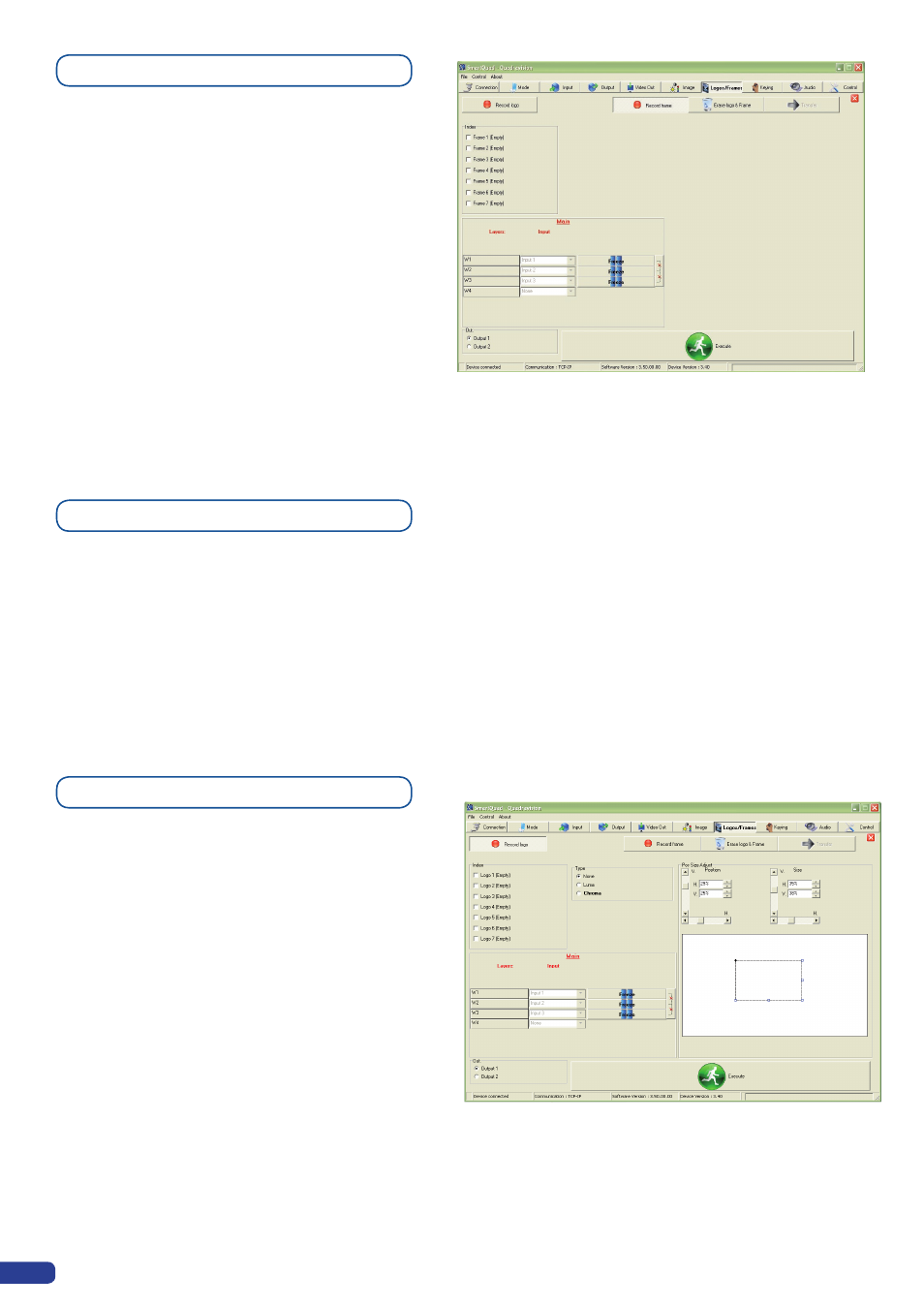

Memorizing Frames in the SQD200

1. In the Input Selection section, click on the

[SOURCE]

button (

1 to

7) of the source you

wish to record as a frame.

2. Click on the Logos/Frames tab of the RCS

interface. Then click on the

[

RECORD FRAME]

button.

3. Click on the field next to the first free Frame to

select it.

4. Click on the EXECUTE

button.

Working with Logos

It is possible to store up to 7 logos in the

SQD200

non volatile memory. Logos work in much the same way

as frames, and can be recorded from any of the

SQD200

’ 11 sources.

Logos have more attributes than frames. They can be positionned. It can be keyed via color cutout selection

or Luma Key before capturing.

Memorizing Logos

1. In the Input Selection section, click on the

SOURCE button (

1 to

11) of the source you

wish to record as a logo.

2. In the Logos/Frames tab, click on Record Logo,

then select an empty logo memory slot (

1 to

to record your logo into.

3. Adjust position, size and keying attributes for your

logo.

4. Click on the EXECUTE to record your logo into

the selected memory slot. The

SQD200

RCS will

display a progress bar while recording the logo.

5. In the Input Selection section, click the

[LOGO1]

button, and select logo number (

1 to

7) you wish to

use. Your logo will appear on the preview screen above any existing layer on screen.

6. Click the

[TAKE]

button. Your logo will appear on the main display.
