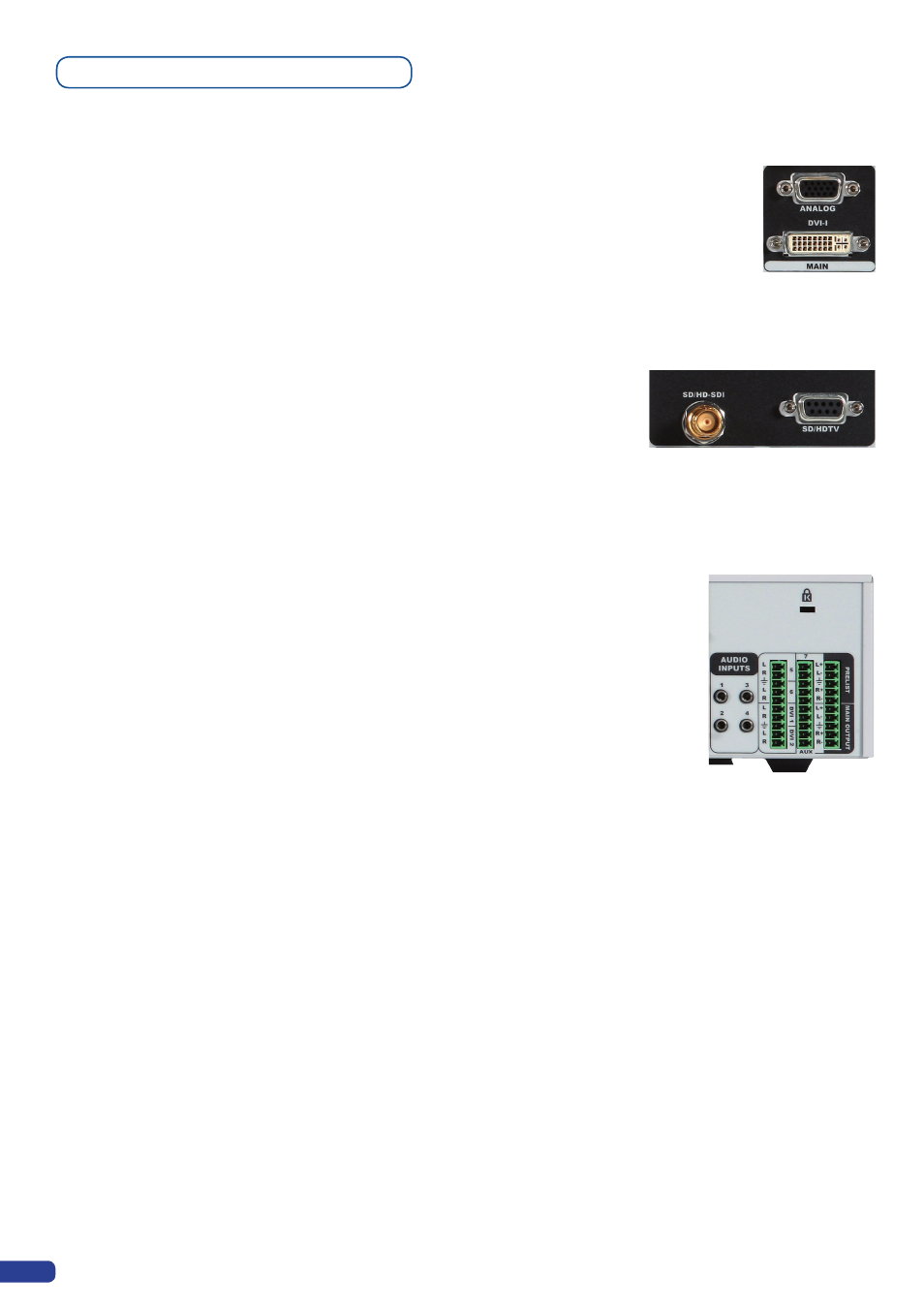

MAIN OUTPUT:
ANALOG: 1x analog output for the main display device on female
HD15 connector.
DIGITAL/ANALOG: 1x main output on female DVI-I connector
(simultaneous analog and digital).
VIDEO OUTPUT:
Video Output card provides SD or HDTV formats in various signals and
connectors from Composite Video to HD SDI. This output can be used to
record your show by outputting the same content as the Main output.
AUDIO SWITCHER:
Audio Stereo Switcher card features 11 inputs (9 on Audio Board + 2 SDI
embedded) and 2 outputs. An additional auxiliary input can be mixed with any
other input. Master Volume and individual input level can be adjusted. Input
and output offers balanced or unbalanced connections. It should be noted
that the management of the audio output follows the selection of video layers.
Two modes are available: Top Follow or Breakaway.
- In Top Follow Mode, the audio follows the topmost video layer (after having
pressed [TAKE] ).
- In Breakaway Mode, it is the selected audio layer input that is permanently
diffused. It can be changed from one preset to another.
Main Outputs
