3-1. CONNECTING THE SMART QUAD (SQD200)
The SQD200 can be set up with up to 11 different sources, and will drive up to 2 digital DVI-D sources, 2 SD-
SDI sources and 7 analog computer/video sources simultaneously. The versatility of the SQD200 will allow
for almost any event configuration and cater for all your projection needs.

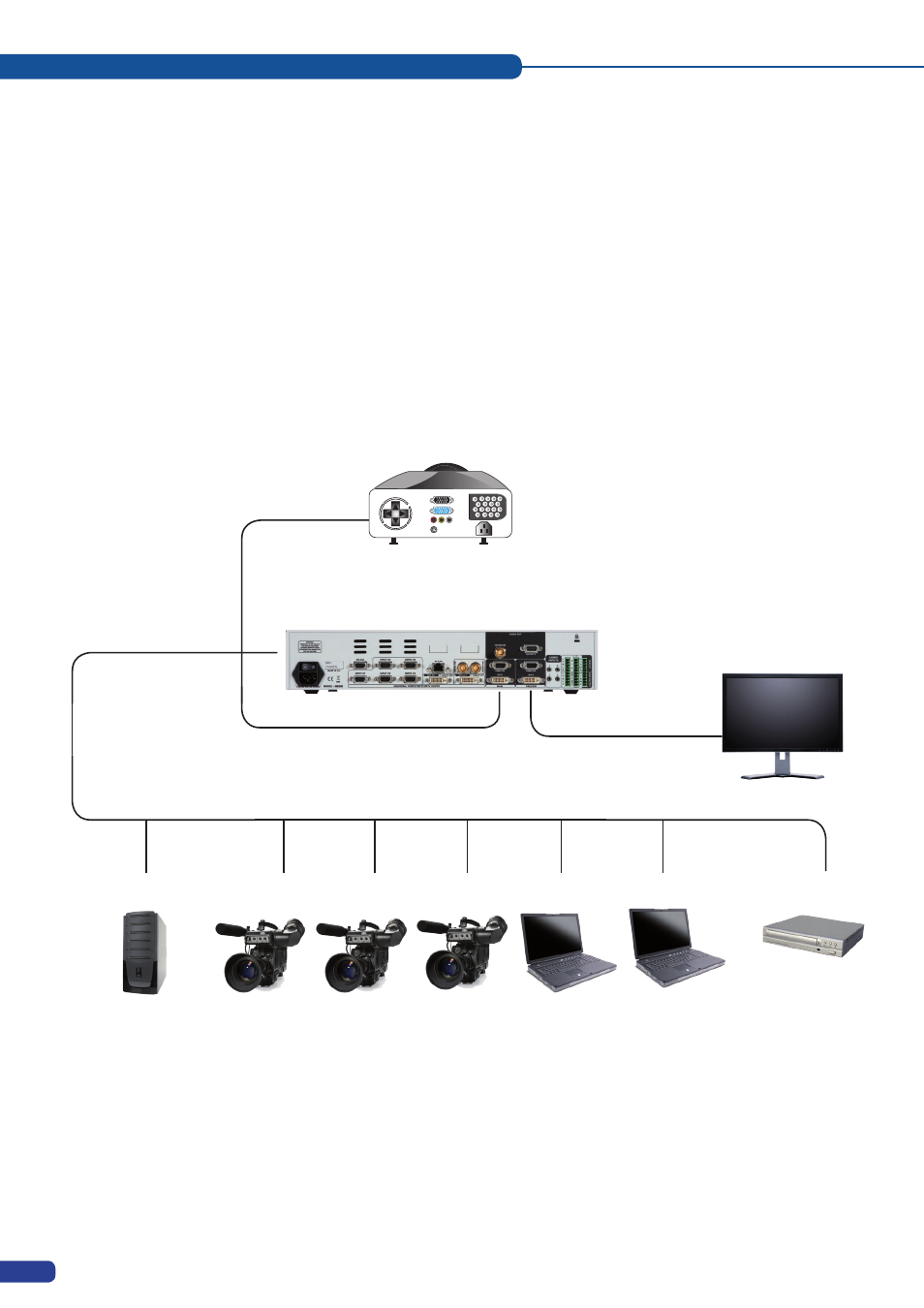

The intuitive rear panel of the SQD200 will let you set up for the first time quickly and easily. Here is an
example of a typical SQD200 setup.
CONNECTING THE SQD200
20
PREVIEW
MONITOR PREVIEW OUT
MAIN OUT
SOURCES
COMPUTER
CAMERA CAMERA HD-CAM LAPTOP LAPTOP
DVD/BluRay
