Analog Way Smart Quad User Manual

Page 23

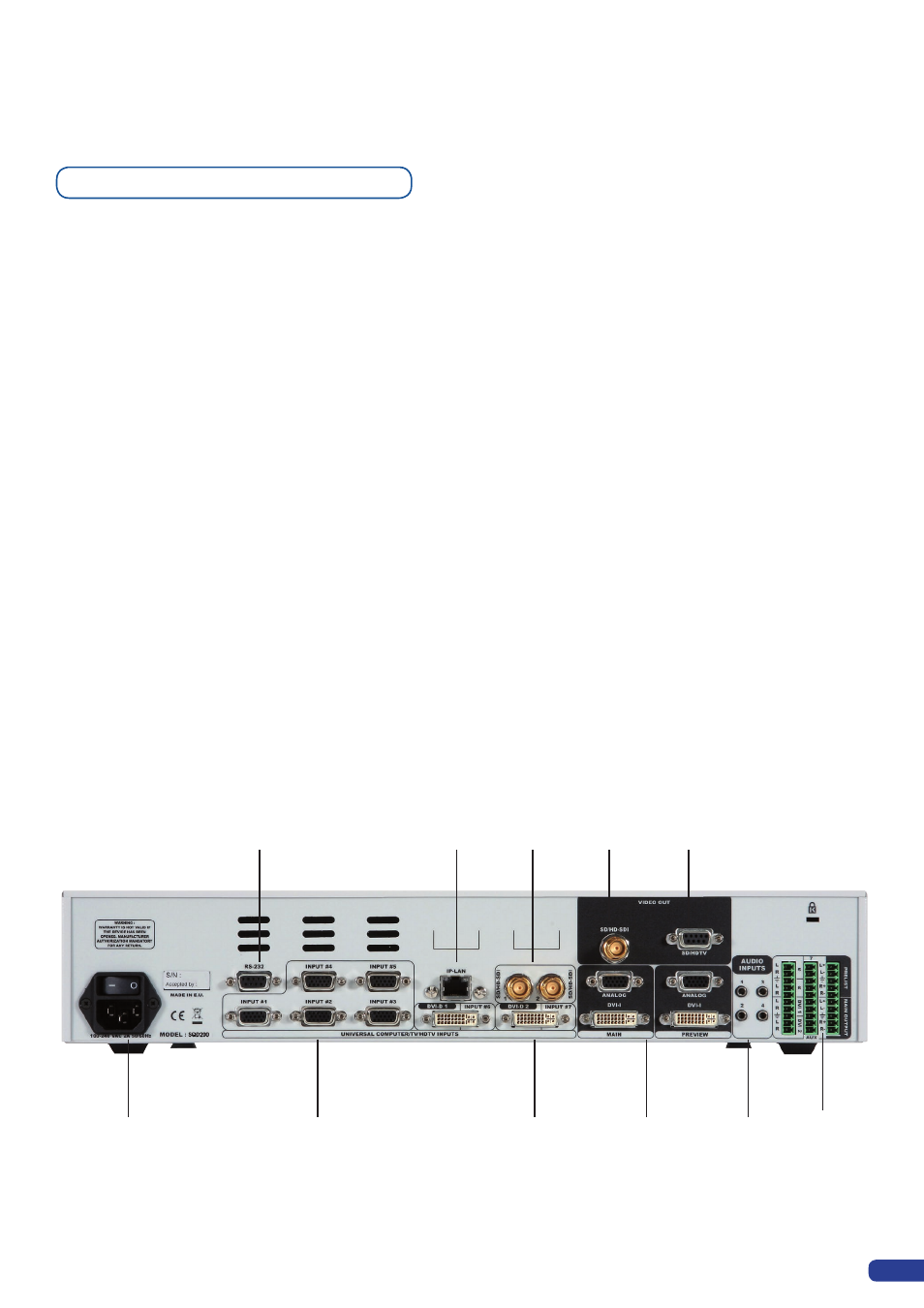

The

SQD200

rear panel is equipped with 11 universal digital and analog inputs. Inputs #1 through #5 (3) are

universal analog inputs. Inputs #6 & #7 share a DVI-D signal and a universal analog signal (plug the shipped

Analog Way

DVI/HD15 adaptor cable to use DVI-D and analog signals simultaneously).

The Main and Preview (6) outputs will allow for the

SQD200

high resolution digital and analog signals to be

viewed on screen and/or on a preview monitor (see also Output Specifications in this chapter).
The extra Video Out card installed on the

SQD200

, can be used for recording, broadcasting purposes in a

wide range of formats for maximum compatibility with industry viewing or recording equipment.

Finally, the audio input card will let users trigger audio with any source, accurately balance or tweak sound

sources and outputs.

1 : AC outlet and On/off switch

2 : IP-LAN connector

3 : Universal Analog inputs

4 : DVI-I Input (DVI-D + Analog)

5 : HD-SDI inputs

6 : Main and Preview outputs

7 : SD-HD/SDI output

8 : SD/HDTV output

9 : Audio inputs

10 : Audio outputs

11 : RS232 connector

Overview

3-2. THE SQD200 REAR PANEL
