Working with Audio
The SQD200 allows to work with up to 9 stereo inputs, 1 auxiliary input, and 2 embedded SDI audio inputs
(via the SDI BNC connectors), all accessible via the Audio menu of the SQD200 , and which can be affected
to one or both of the 2 independant balanced/unbalanced outputs of the device.
To configure audio settings of the SQD200 , plug all audio inputs into the device, and navigate to the Audio
menu.
1. Choose the Audio mode, Break Away or Top Layer Follow, which you wish the audio to work in.
* TIP * : the Break Away mode will air the selected audio source, while the Top Layer Follow mode will air
audio from the toptmost active layer of the SQD200.
2. Select Source Settings from the Audio Menu to select the audio source you wish to work with, then set
levels and left/right balance for each input.
3. Select Auxiliary Settings to determine level and balance of the auxiliary input.
4. Select the Main Audio Menu to determine main audio output level, balance and delay settings, or to mute
main audio output.
5. Select Audio Prelist, from the Audio menu, to determine pre-listen audio output level, balance and delay
settings, for each audio input, or to mute Prelist audio output.
6. Select Delay Mode, to determine how the SQD200 deals with audio delay. Select Auto Adjust to let the
SQD200 determine audio output delay. Select Manual Adjust to determine audio delay manually.
* TIP * : selecting Manual Adjust will give access to audio delay value (in milliseconds) of the Main and Prelist
audio output menus.
Audio configuration
Special Features

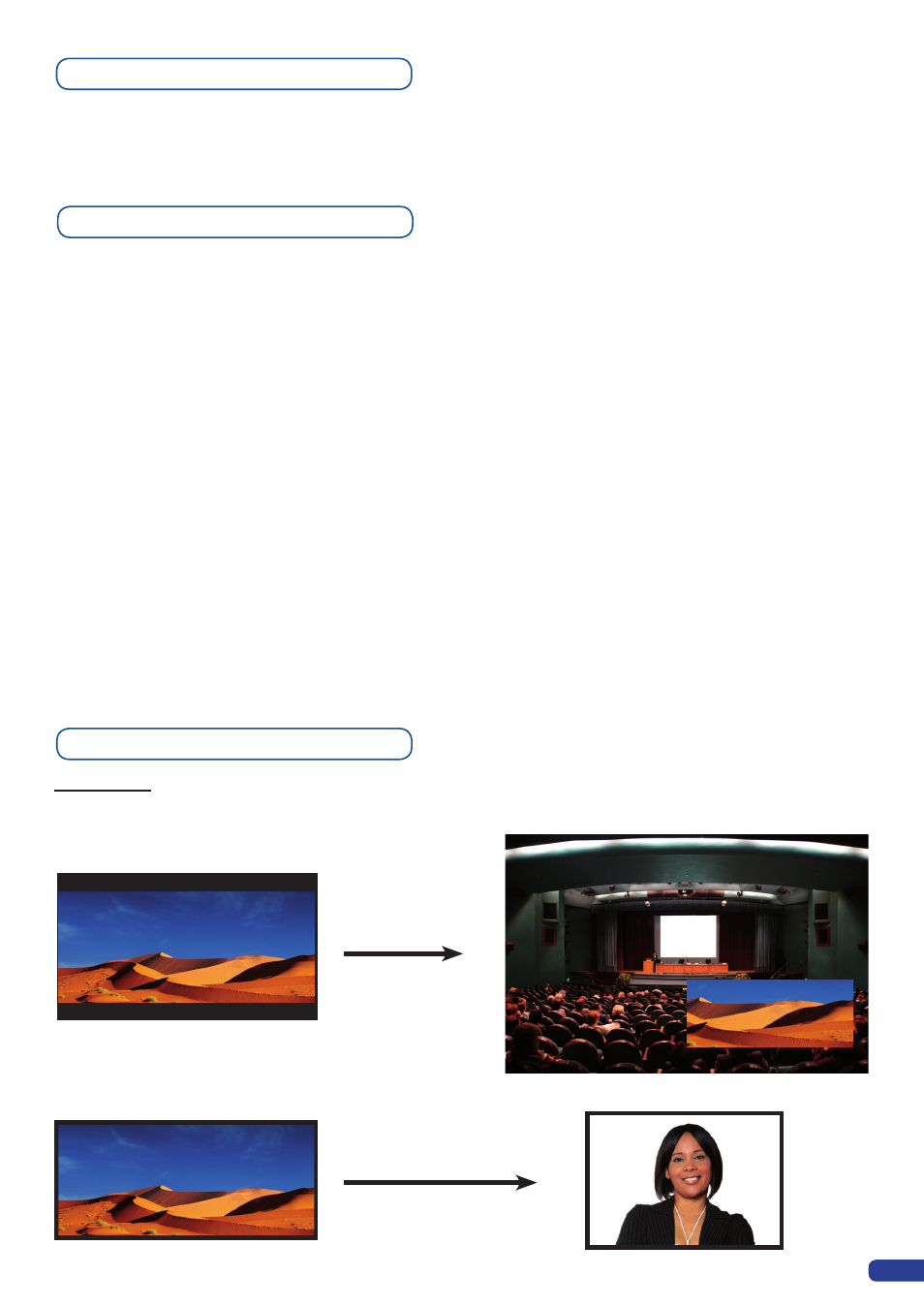

Dynamic Fit (automatically activates the Transparent Background)
- Dynamic & Automatic adjustment of the PIP to fit the source image borders (Black Stripe) .
- Automatic adjustment of the PIP (Ratio) to fit the source image borders during a transition.
PIP
