Overview
14
2.2 Screen Display

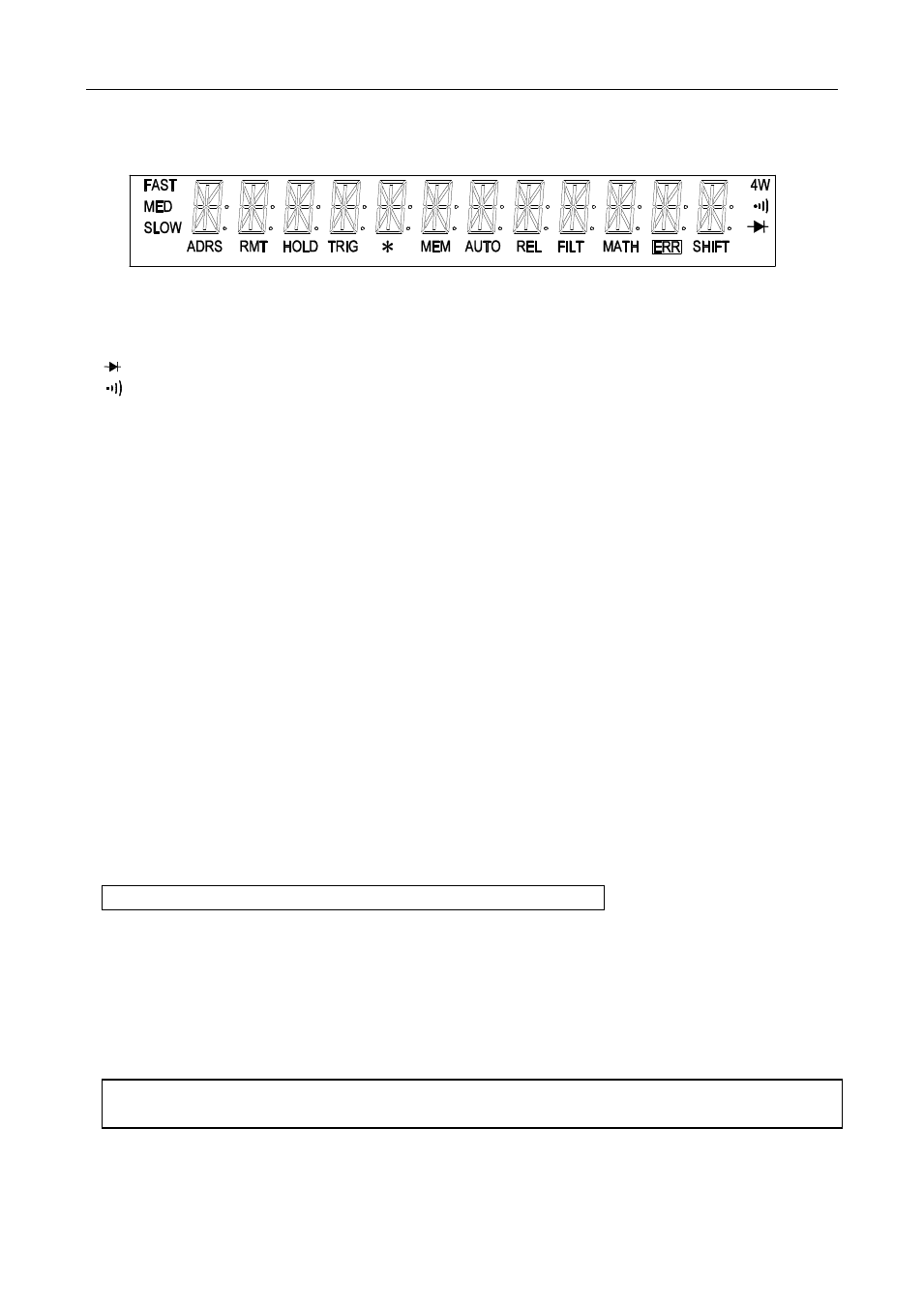

Figure 2-2 Display Annunciators
* (asterisk) Instrument is ready to store readings (when in system menu) /
Reading is being stored (when in measurement mode)
(Diode) Instrument is in diode testing function
(Speaker) Beeper on for continuity testing function
4W Multimeter is in 4-wire resistance measurement mode.
ADRS Multimeter is addressed to listen or talk over the GPIB interface
AUTO Auto ranging enabled
ERR Hardware or remote control error detected
FAST Fast reading rate
FILT Digital filter enabled
HOLD Reading HOLD is enabled
MATH A math operation is enabled (mX+b, %, dB, dBm).
MED Medium reading rate
MEM Turns on when reading memory is enabled
REL Relative reading displayed
RMT Multimeter is in remote mode
SHIFT Accessing shifted keys
SLOW Slow reading rate
TRIG Multimeter is waiting for a trigger (manual, bus, or external trigger).
2.3 Front Panel Menu Options
A : MEASurement MENU
1:CONTINUITY → 2:FILTER → 3:FILT TYPE → 4:FILT COUNT
1. CONTINUITY Select the continuity beeper threshold: 1 Ω to 1000 Ω
2. FILTER Enable or disable FILTER function.
3. FILT TYPE Select the type of filter.
Select MOVNG AV (Moving Average) or REPEAT (Repeating Average).
4. FILT COUNT Set the number of readings to be filtered or averaged.
B : MATH MENU
1:SET M → 2:SET B → 3:PERCENT → 4:dB REF → 5:dBm REF → 6:LIMIT TEST → 7:HIGH LIMIT
→ 8:LOW LIMITT→ 9:LIMIT BEEP
1. SET M Set the scale factor M for MX+B function.
2. SET B Set the offset factor B for MX+B function.
