3.7.1 Remote Battery Return Bar Kit (Optional)
A remote battery return bar is required to facilitate termination of a high quantity of large cables. The kit mounts
to a customer supplied auxiliary frame (2 " x 9/16"). IT is required if the TPL fuseholders are ordered and is sug-
gested for systems with 4 distribution modules.

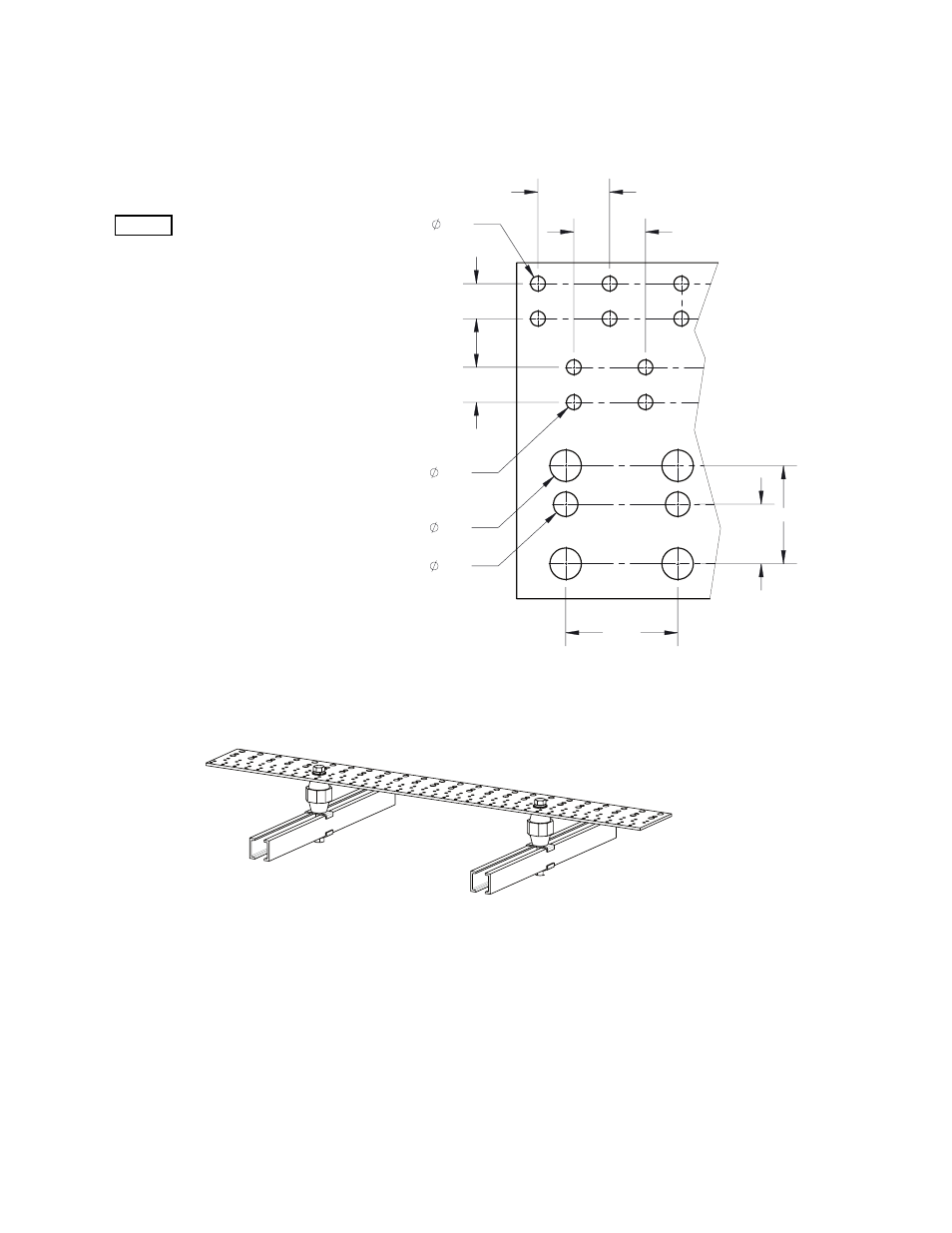

Figure 9 —
Remote battery return bar: customer connections (single bar shown)
Lug Spacing
See Figure 9 for exact dimensions. For
two bars, the number of connections
are:
Small: 72 sets 1/4" on 5/8" ctrs
Large: 24 sets 3/8" on 1" ctrs or
24 sets 1/2" on 1 ¾" ctrs
0.63
0.63
1.28
1.28
0.27
0.27
1.75
1.06
0.56
0.44
2.00
