6.2 AC Supply for the Rectifiers
To ease future access issues, connect the AC circuits to all rectifier shelves at the time of initial installation.
NOTE:
Verify NO rectifiers are installed in the rectifier shelves at this time.
6.2.1 Standard AC
Table A lists the types of rectifiers that can be installed in a CXPS-M system. Table A also provides the AC input
specifications.
Figure 22 shows the AC connections for one of the rectifier shelves. For other AC connection options (e.g. single
phase), refer to the rectifier shelf manual that ships with your system.
Terminate flex conduit at rectifier shelves—one connection each side.

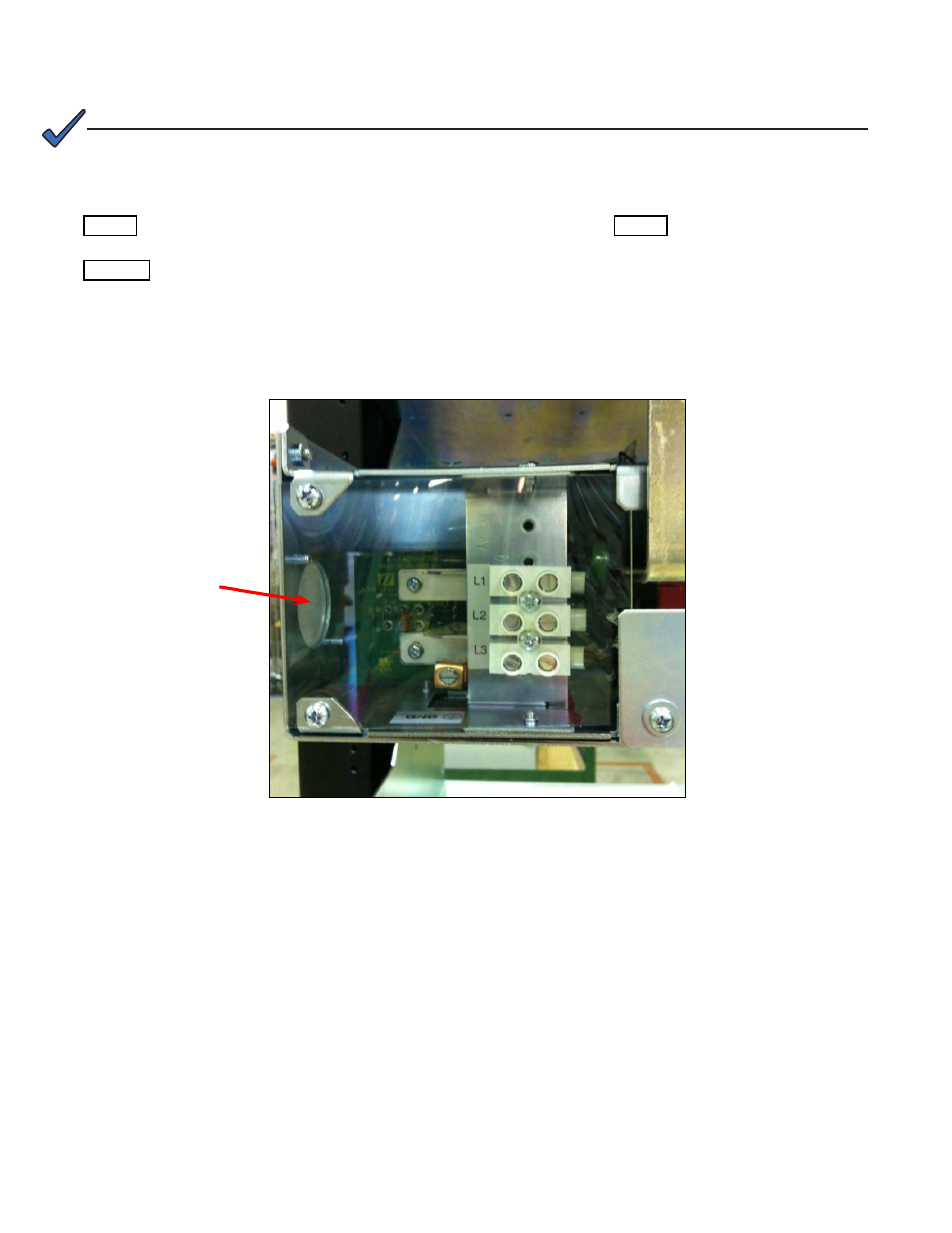

Figure 22 —
Shelf AC connection (208Vac, 3 phase, 3-wire shown with rear cover removed)
AC wireway 1.313"
(33.4mm) for 1"
conduit
