13

9400004-J0 Rev B

• 24V to 48VDC, 2 kW output per module (24-48V

5-Mod 23" shelf part number: 030-900-20)

• 48VDC to 24V, 2 kW output per module (48-24V

5-Mod 23" shelf part number: 030-900-20)

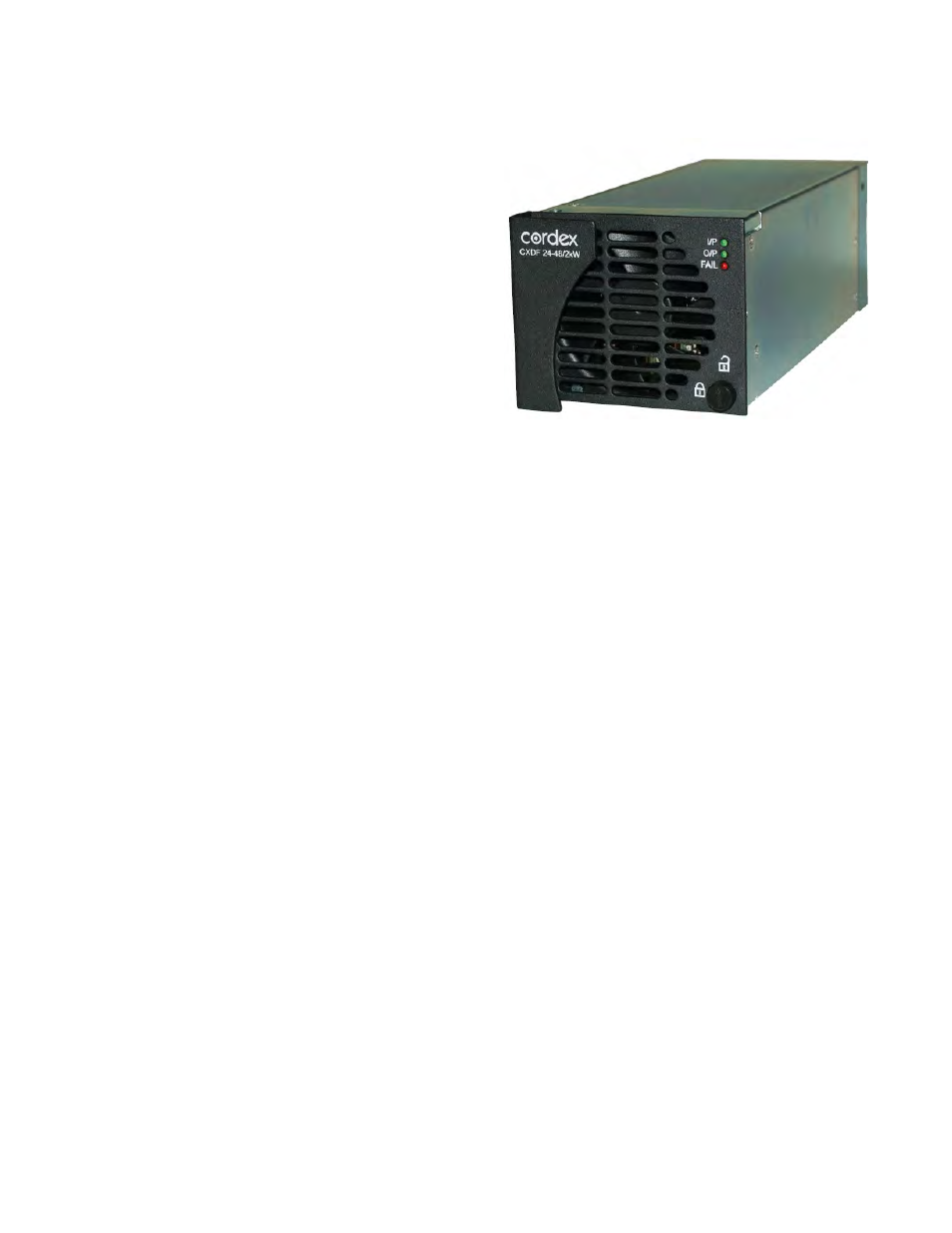

Figure 2 —

CXDF 24-48/2kW converter module

3.5 Cordex Converter Shelves (dual voltage systems)

Converter shelves are part of a dual voltage system. Depending on the required load voltage, the converters are

one of:
