23
9400004-J0 Rev B
3.10 Distribution Panel Alarms
Fuse and breaker alarms occur when one or more fuse or breaker has opened.
Breaker alarms are paralleled from each breaker bank to a single alarm which is displayed on the inside panel of
the distribution module. The TPL fuse fail alarms, also paralleled, display as a single alarm.
Each breaker/fuse panel is equipped with one alarm which is wired to the system controller.

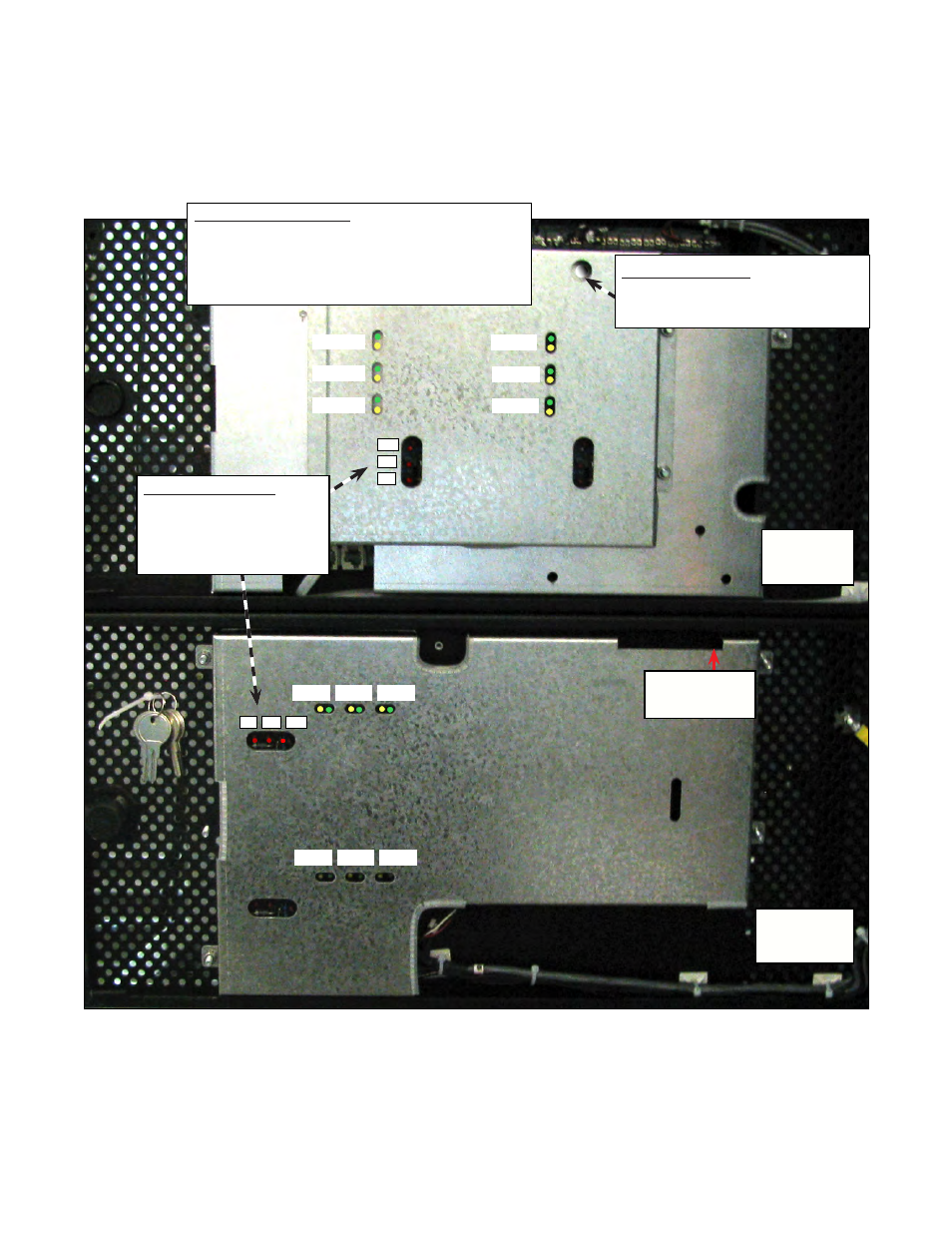

Figure 14 — CB/fuse alarm LEDs and LVD control
LVD #1
LVD#1
LVD#4
LVD#2
LVD#5
LVD#3
LVD#6
LVD #2
LVD #3
LVD #4
LVD #5
LVD #6
#3
#3
#2
#2
#1
#1
CB/Fuse Alarm LEDs
#1 Left Bank Alarm
#2 Right Bank Alarm
#3 Secondary Voltage Alarm
Distribution
Module with
Controller
Distribution
Module with-
out Controller
LVD Override Switch
Switch middle position = AUTO
Switch up position = OVERRIDE
Shunt Multiplexer
Reset Button
LVD Control Status LEDs
Green LED
= OK to return to AUTO,
Supervisory LVD control is ON
Yellow LED = OVERRIDE
Yellow & Green
OFF together = Contactor either open-circuit or
not installed
