3.6.3 Safety Features
Insulating shield
Each distribution bay has an insulating shield to the front of the bus bars. This shield prevents casual touching of
the bus bars with cable lugs and tools while working inside the distribution module. It also maintains separation
between the cables and the bus bars.

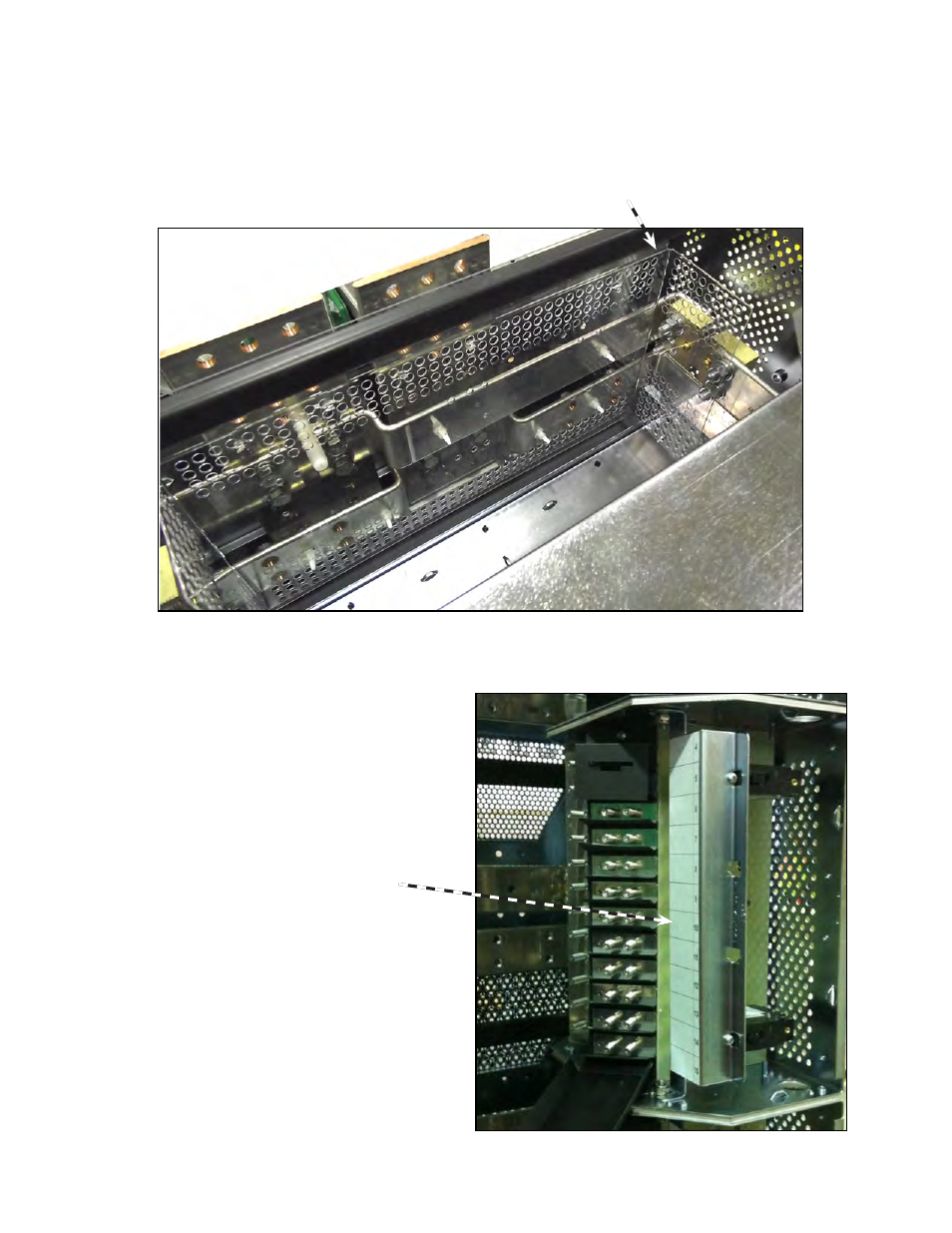

Figure 7 — Distribution module installation shield
Insulation shield
Circuit breaker
guard
Circuit Breaker Guard
The pivoting circuit breaker guard, with a circuit desig-
nation strip, prevents accidental tripping of a breaker
and provides a secondary retention method.
