9400004-J0 Rev B 16

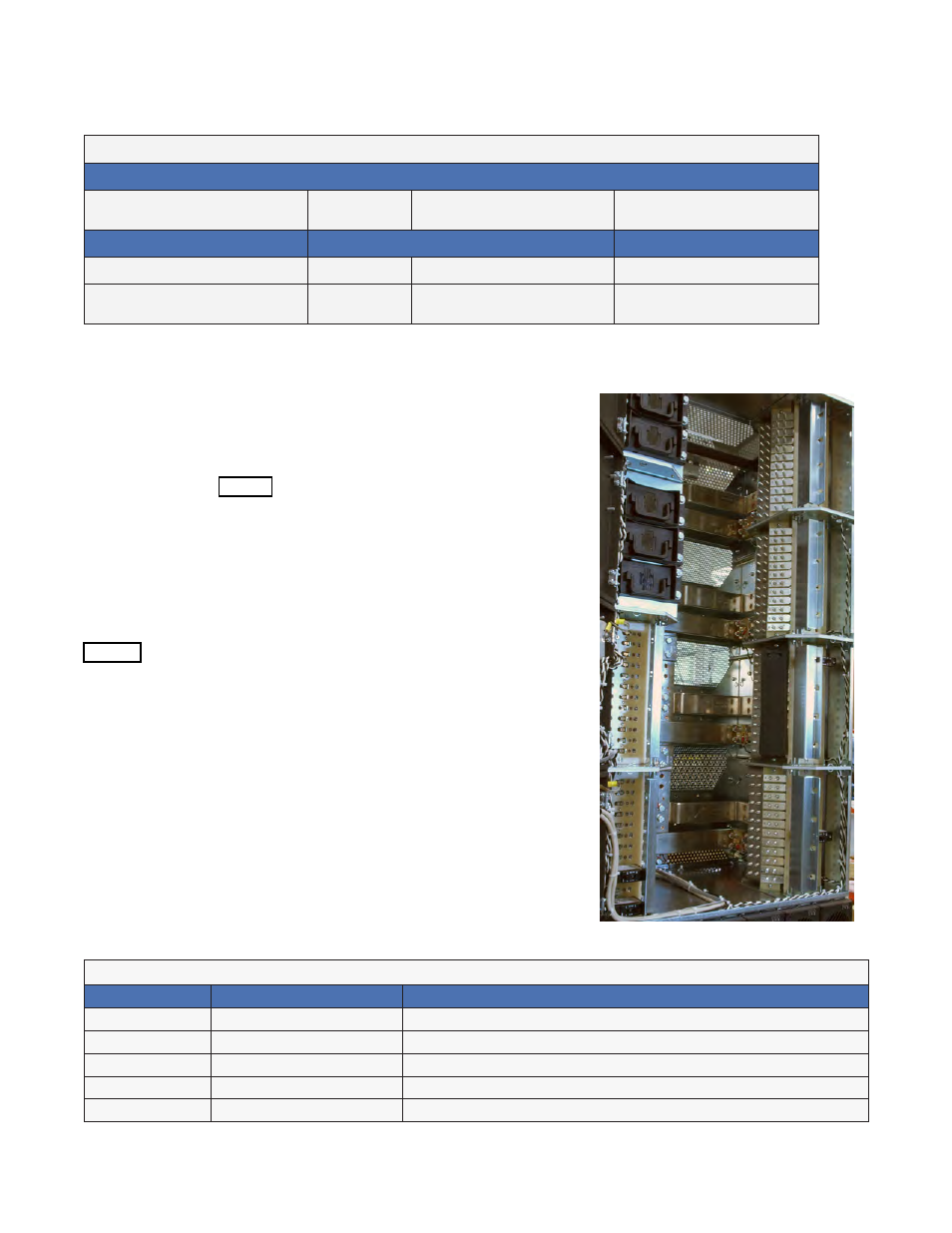

Figure 5 — DC distribution modules
3.6 Distribution and Termination
A 23" rack mounted system, is available with single 1200A output or 1200 A primary/ 600 A secondary (dual volt-
age with a common return). A 19" rack mounted system, is only available with a single 1200A output.
Table B —
Mid Capacity Power Systems Output Configurations
Model number
Model
CXPS-M
1200
CXPS-M
1200/600
CXPS-M
1200
23" Rack 19" Rack
Maximum Output Power 57.6 kW 57.6 kW 57.6 kW
Maximum Current 1200 A
1200 A primary
600 A secondary
1200 A
The fuse/circuit breaker distribution modules feature high capacity, modularity, and simplified installation. These
features provide effective secondary load distribution and protection for multiple DC feeds up to 600 amps.
Table C — Modular distribution components and termination
Component Type Description/Connection
Fuses GMT:
Up to 10 positions, up to 15A (max)
TPL, high capacity: Up to 6 positions, 800A max fuses
TPL, low capacity: Up to 24 positions, 300A max fuses
TLS/TPS plug-in bullet: Up to 96 positions, 125A max fuses
3.6.1 Single Voltage Distribution
Each bay can have up to four distribution modules with a total current
capacity of 1200A. Table C lists component options across all four distri-
bution modules.
Each module can contain one of the following configurations:
• 2 banks of 12 plug-in AM breakers/ TPS fuse holders
• 2 banks of 3 TPL fuses
• 1 bank of 12 plug-in AM breakers/ TPS fuse holders and 1 bank of
TPL fuses
Figure 5 shows a combination of two modules with two banks of circuit
breakers and two modules with one bank of TPL fuses and one bank of
plug-in breakers.
