Table C — Modular distribution components and termination
Component Type Description/Connection
Breakers AM plug-in bullet: up to 96 positions
1 pole, max 100A
2 pole, 125A to 150A
3 pole, 175A to 250A
Output
termination GMT Fuse: 0.34 to 2.5 mm 2 (14 to 22AWG)
TPL fuse, high capacity: 2 hole 3/8" diameter on 1" centers, dual cable landing, 2x 750 MCM
TPL fuse, low capacity: 2 hole 3/8" diameter on 1" centers, 1x 350 MCM
TLS/TPS/AM breaker 1 pole and 2 pole: 1/4" diameter on 5/8" centers
3 pole: 3/8" diameter on 1" centers
Module/Bank
Capacity TLS/TPS/AM breaker 1200A/ 2x 600A per bank
TPL fuse 1200A/ 2x 600A
TPL fuse/ AM breaker 1200A/ 1x 600A plus 1x 600A
Primary distribution
Primary distribution
Primary distribution
Primary distribution
Secondary distribution
Secondary distribution

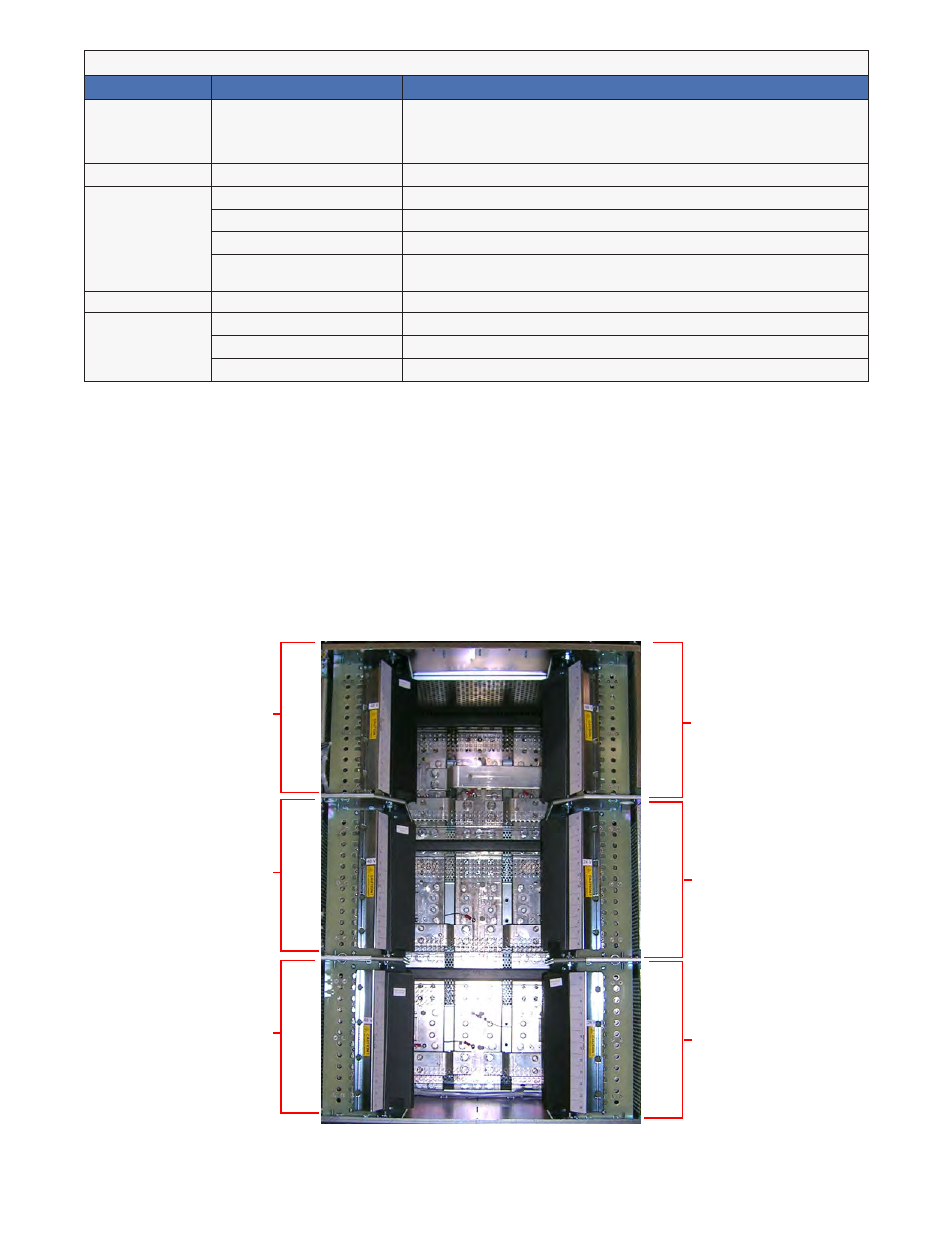

Figure 6 — Dual Voltage distribution modules
3.6.2 Dual Voltage Distribution
Each bay can have up to four distribution modules with a total current capacity of 1200A primary/ 600A second-
ary The top distribution module has primary distribution only and can contain any of the following configurations:
• 2 banks of 12 plug-in AM breakers/ TPS fuse holders
• 2 banks of 3 TPL fuses
• 1 bank of 12 plug-in AM breakers/ TPS fuse holders and 1 bank of TPL fuses
The remaining distribution modules with dual voltage distribution can have.
• 2 banks of 12 plug-in AM breakers/ TPS fuse holders
• Primary bank of 3 TPL fuses and secondary bank of 12 plug-in AM breakers/ TPS fuse holders
