27
9400004-J0 Rev B
4. Pre-Installation Preparation
4.1 Site Selection
NOTE:
This power system is suitable for installation in Network Telecommunication facilities
and locations where the NEC applies.
The power system must be mounted in a clean and dry environment.
Consider both the floor loading and the physical space required for a single bay CXPS power system and the
batteries:
• Dimensions for one bay (refer to drawing #0250005-06):
x mm.........2133H x 660W x 482D
x Inches....84H x 26W x 19D
• Avoid areas that may be subjected to hot air exhaust from nearby equipment.
• Provide adequate space for safe and proper circulation of installation and maintenance personnel:
x Top: clearance required for cables
x Rear: 3ft (1m) during installation; after installation. a bay can be moved closer to a wall provided
~12" clearance is maintained for ventilation
x Front: 3ft (1m)
x Sides: If the optional battery bus bars are installed, allow ~6in (15cm) additional space on the live
side of the power system (Figure 17). For a dual voltage system additional space is required on
both sides to accommodate both load voltage bus bars.

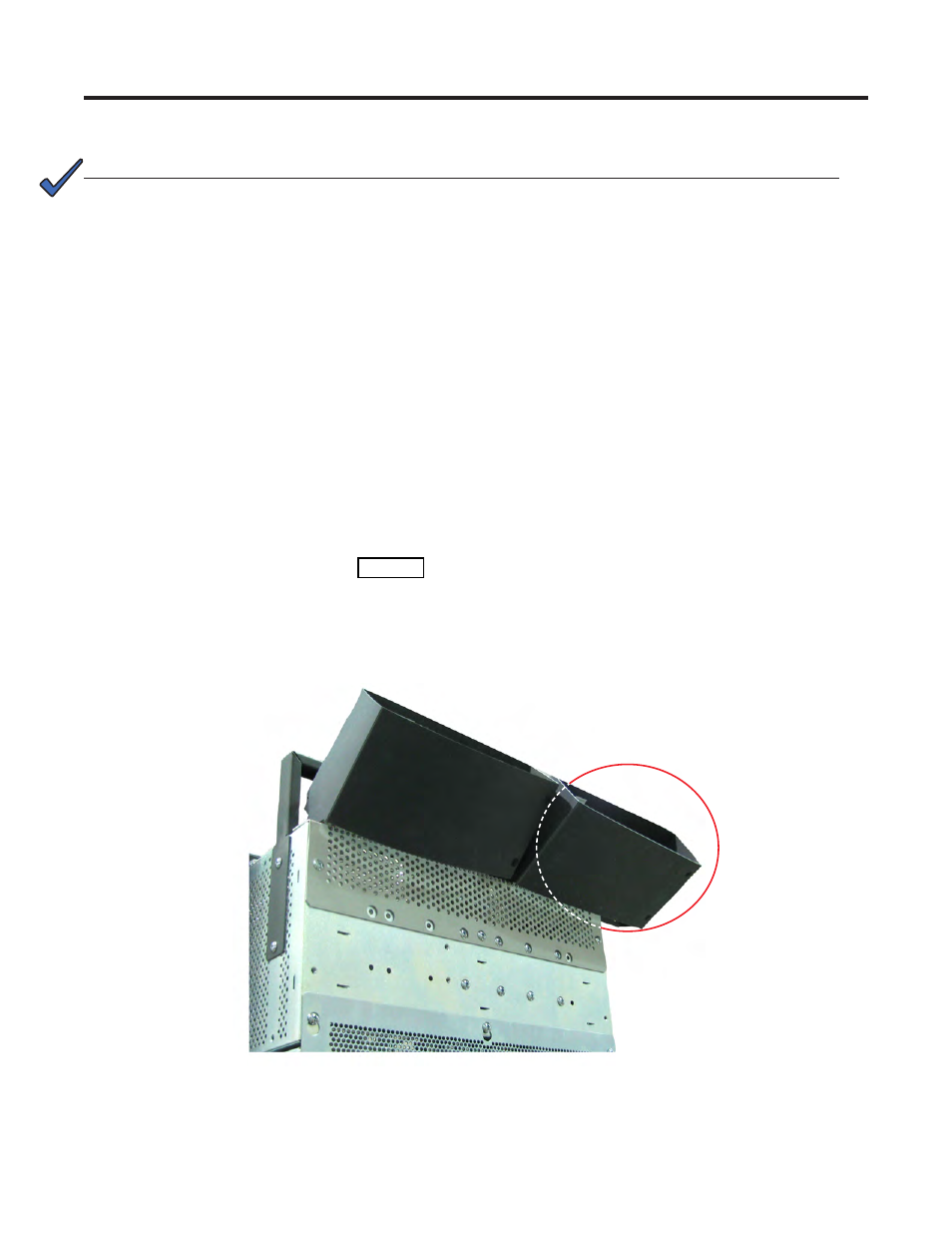

Figure 17 —
Battery terminations shown with protective covers
