8 final installation steps – Alpha Technologies Cordex CXPS-M 48_24-1200_600A User Manual
Page 49
47
9400004-J0 Rev B

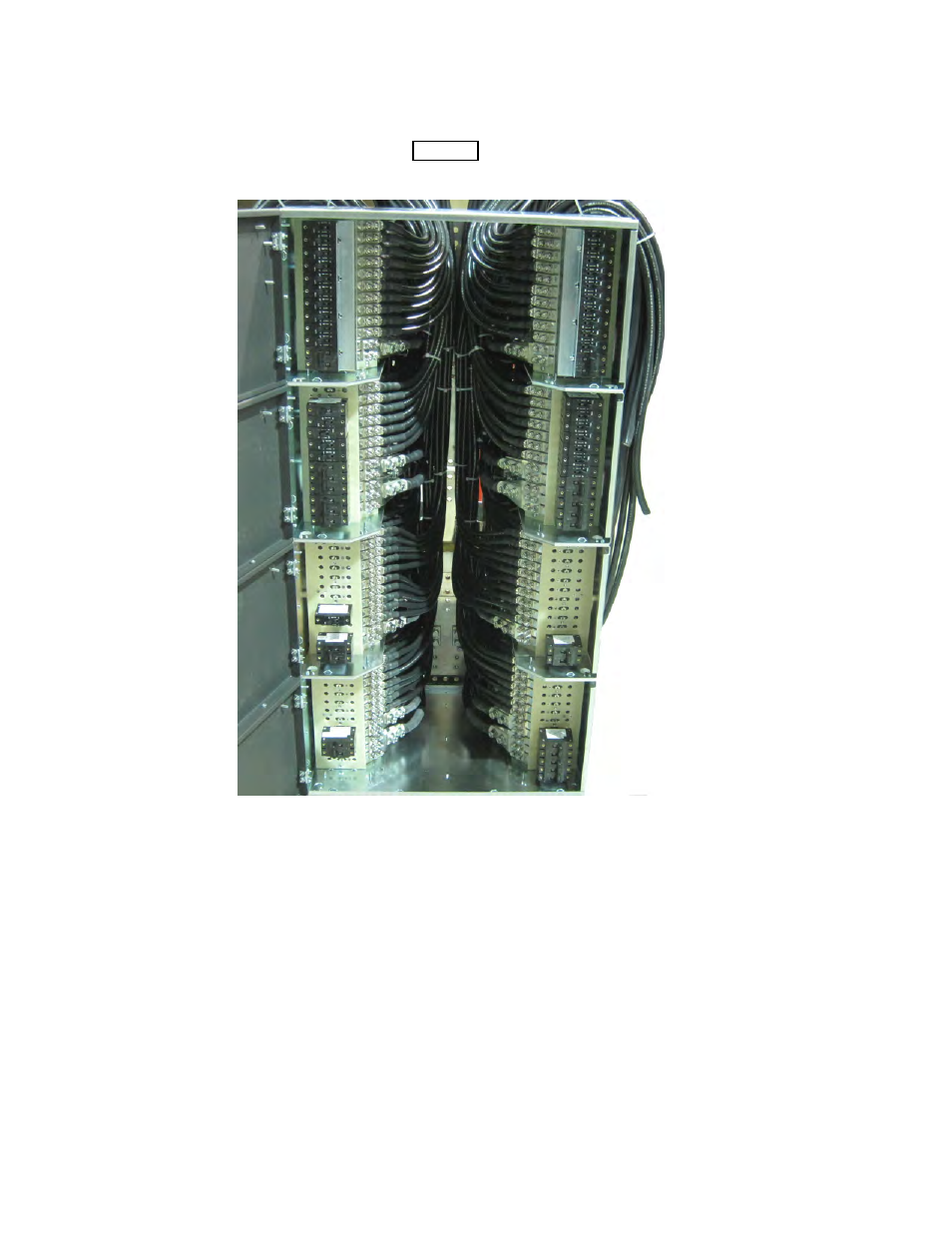

Figure 32 —
Final load cable arrangement (shown with protective covers removed)
6.8 Final installation steps
6.8.1 Tie Wraps
Neatly group cables with tie wraps as shown in Figure 32.
