9400004-J0 Rev B 46
6.7 Connecting Load Cables to TPL Circuitry
NOTE:
TPL fuses are installed in primary voltage banks only.
The TPL extensions shown in Figure 31 are installed with kit #0380059-001, which also includes covers for the
extensions.
High Capacity
Connect TPL fuse holders to the load and the external return bus bar with up to 2x 750 MCM wire.
Low Capacity
Connect TPL fuse holders to the load and the external return bus bar with up to 350 MCM wire.

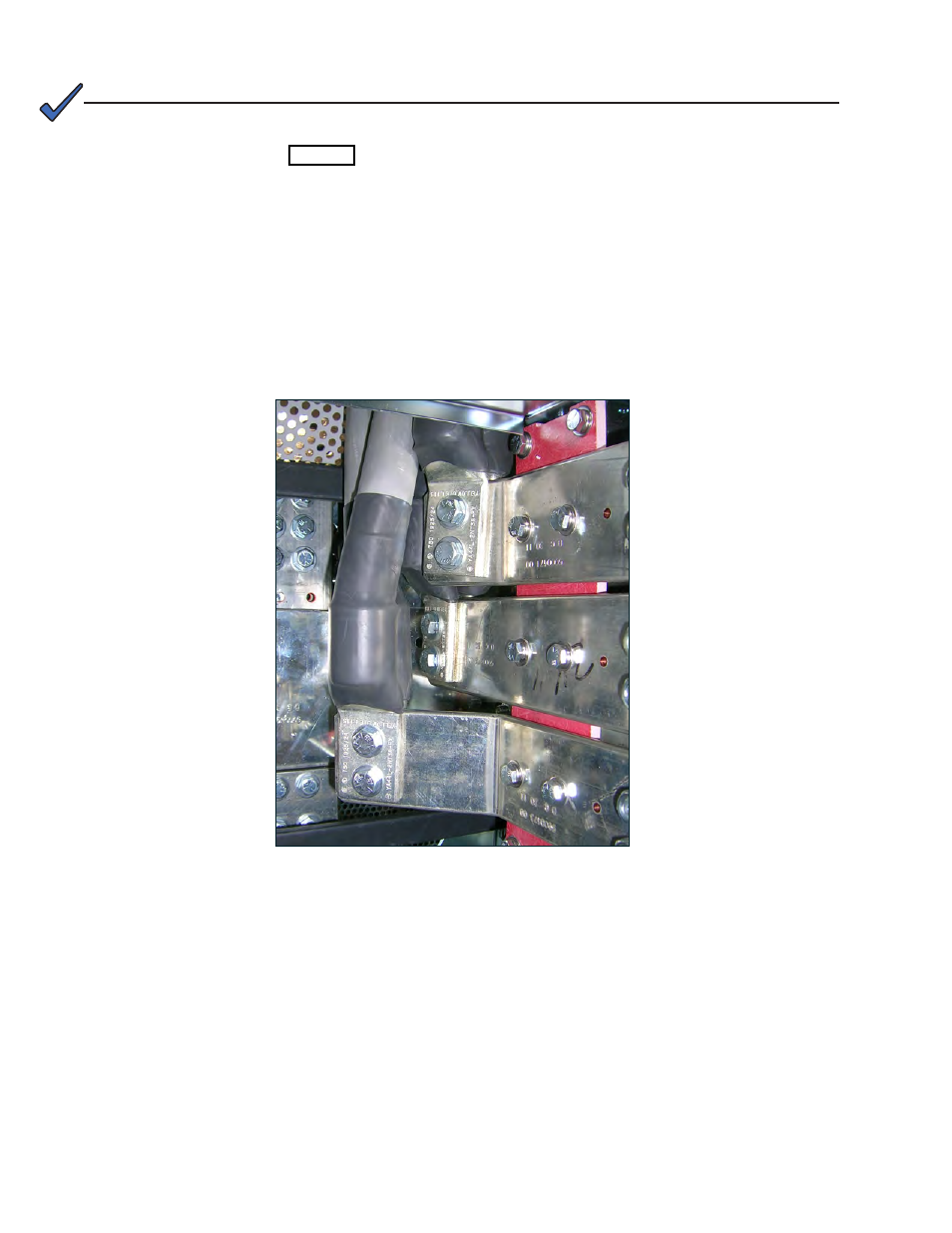

Figure 31 —
High capacity TPL fuse wiring (shown with 2x 750 MCM wire)
