9400004-J0 Rev B 44
6.6 Connecting DC Load Cables to Breaker/Fuse Circuitry
Refer to guidelines supplied with the load equipment. Distribution cables are typically sized to provide a 0.5 V
loop drop at full load as well as meeting ampacity requirements of the protection fuse or circuit breaker.
6.6.1 Before You Begin:
1. Cut cables to length and terminate with a two-hole lug:
x TPL fuse connection—3/8" diameter on 1" center
x AM breaker— 1/4" diameter on 5/8" center
2. Identify each cable with a label that indicates its location within the distribution modules.
3. Remove the top Kydex cover.
6.6.2 Load Cables to Breakers
1. Route the load cables through the top distribution module.
2. Remove the protective "hot" terminal cover (Figure 29).
3. If using 2-pole or 3-pole breakers (Figure 28), remove the Insulating materials between adjacent breakers
connections.

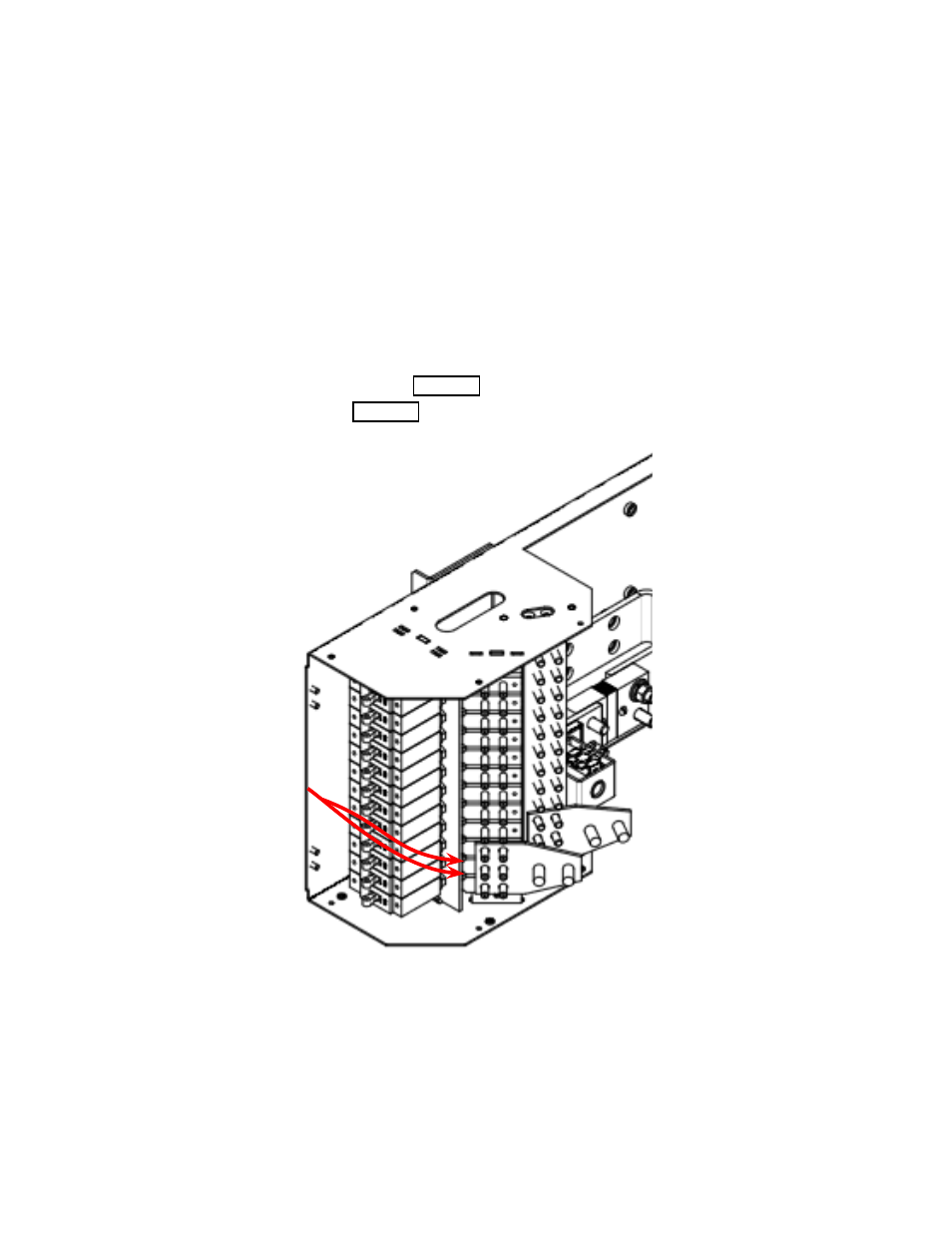

Figure 28 — Preparation for 2-pole and 3-pole breakers
Remove
insulating
material
