Programming and Navigation

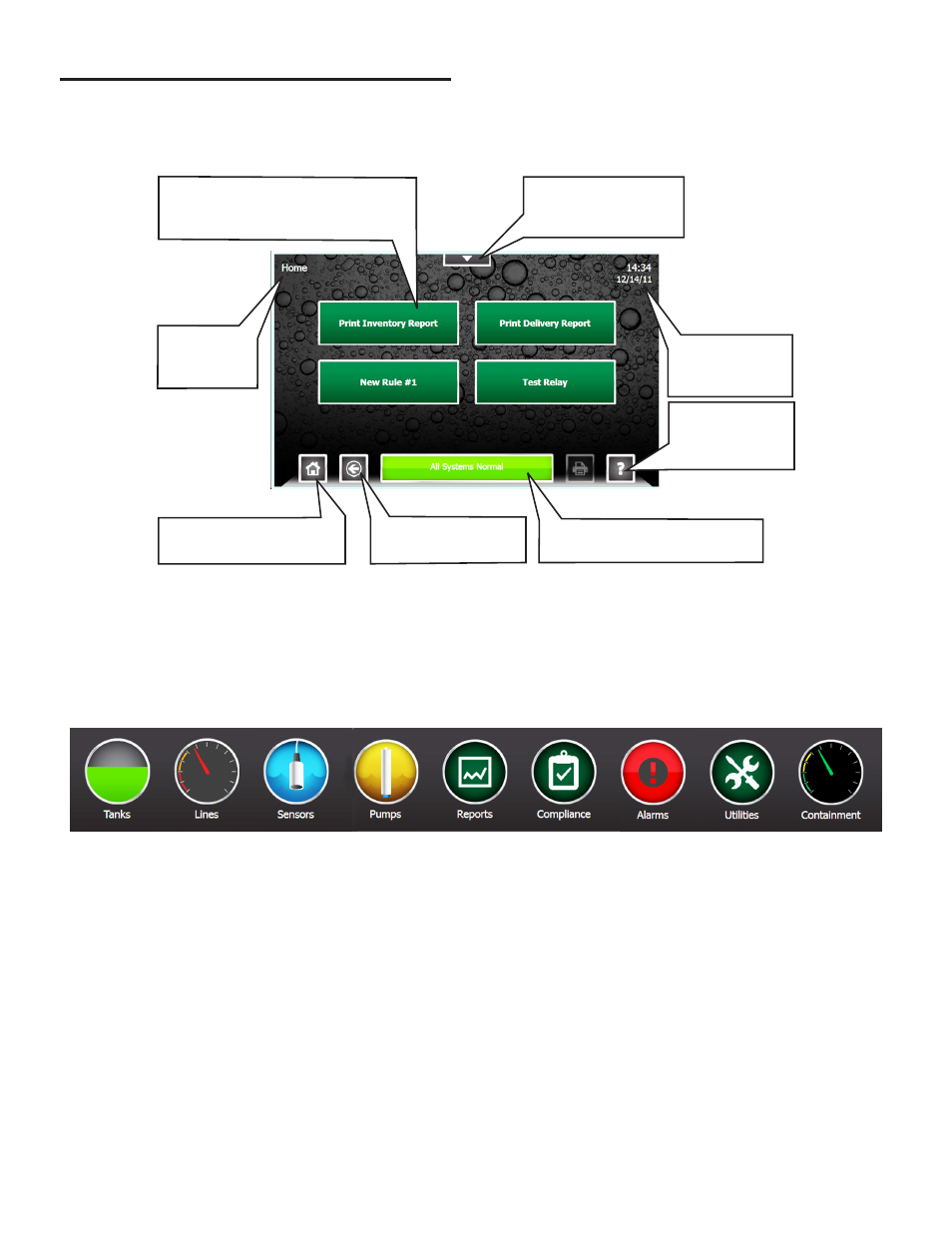

Console Navigation
The operating system is designed for easy navigation. Applications allow the user to modify programming options by
responding to on-screen commands. The following instructions show various operating system functions, so that issues
can be corrected efficiently without interrupting dispensing or sales.
Home – This will return to
the screen shown here.
Back – Returns to
the previous screen.
Status – When in Alarm, bar
turns red and describes alarm.
Help – Displays
context-sensitive
help information.
Quick Jump Menu –
Allows rapid access
to console functions.
One-Touch Buttons – Run
customized and site-specific rules
for various console functions.
Shows which
screen is
displayed.
Shows current
system time and
date.
Navigation Buttons
There are many ways to navigate the applications of the TS-550 evo console. Listed below are buttons that will help you
navigate the functions of the console.
Quick Jump Menu ( QJM)
The Quick Jump Menu was developed to simplify system navigation. From the Quick Jump Menu you can access sections
of the TS-550 evo with a few quick selections.
Quick Jump Menu
Note: Your console will display selections depending upon installed equipment.
Selecting the icon will take you to the summary screen for that item and allow you to access more detailed information.
