19
Programming and Navigation
Console Navigation
The operating system is designed so that a user may navigate with ease. Manageable applications allow the user to
modify programming options by responding to on-screen commands. The following instructions will give you a good feel
for the operating system functions, so that issues can be corrected efficiently without interrupting dispensing or sales.
Access to application sub-menus within the console is gained by pressing the corresponding menu option button on the
display. To navigate the console, it may be necessary to become familiar with the graphical icons. Console application
menus / sub-menus are outlined in the next section of this manual.

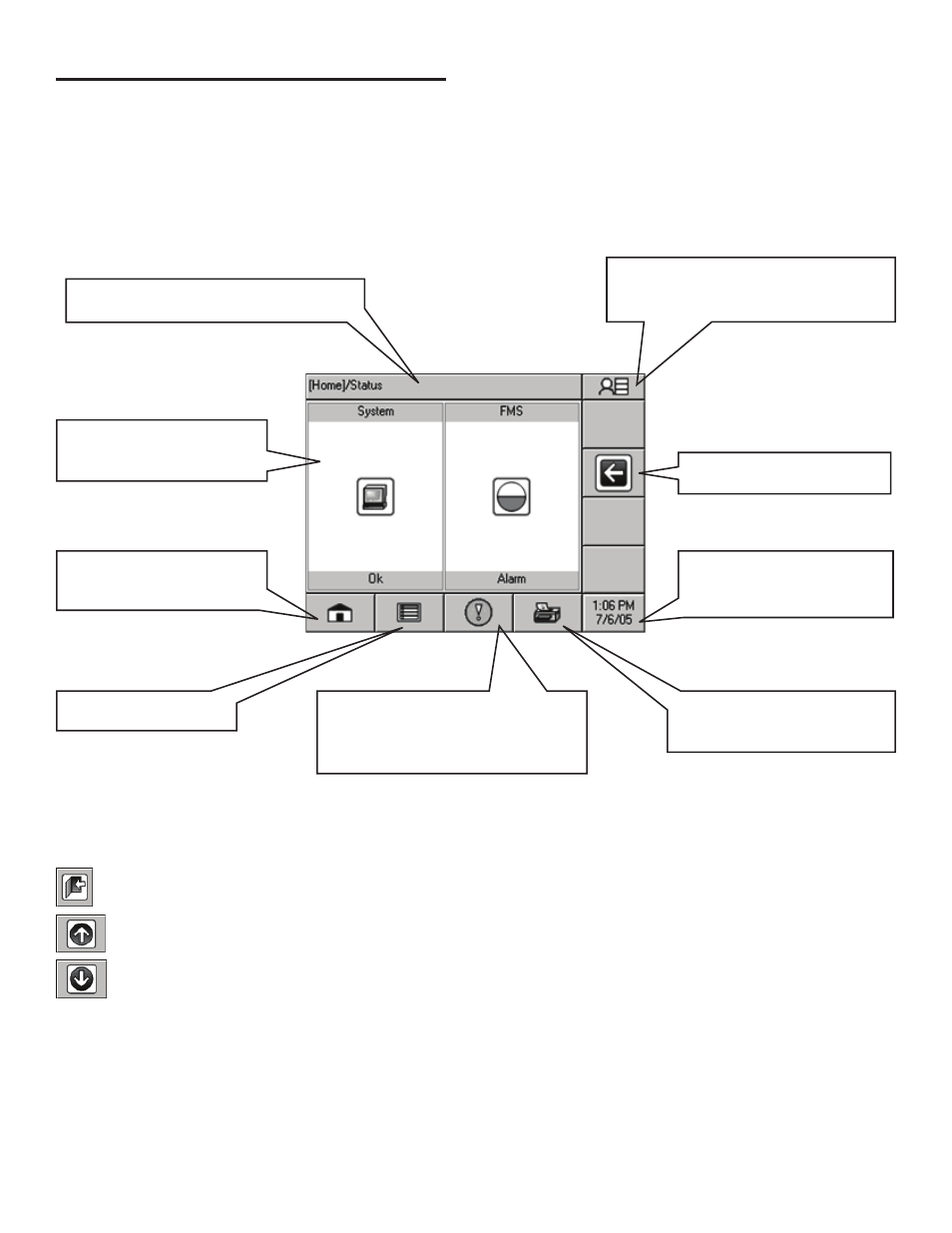

Path Bar – Shows the path/description
of information displayed.
Back – Returns you to the
previous screen.
Date/Time – The current date
and time. This will let you
configure Time/Date settings.
User Role – Displays the access level
of the current user (determined by the
password input).
Application Window –
Displays the current
application content.
Home – This button will bring
you back from any application
to the home status screen.
Status – Displays a check for OK
or an exclamation for alarm. When
alarms exist, pressing this will bring
you to an alarms page.
Main Menu – Access the
Main Menu application.
Print Report – Pressing this
button will take you to a menu
of reports .
Navigation Buttons
There are many ways around the applications of the TS-5 series console. Listed below are a few buttons that will help you
navigate the functions of the console.
Exit: Takes you back to the Home Menu.
Scroll Up: When this button appears on the right side of the screen it indicates more menu options are available
and pressing this button will scroll up through the options.
Scroll Down: When this button appears on the right side of the screen it indicates more menu options are
available and pressing this button will scroll down through the options.
