9

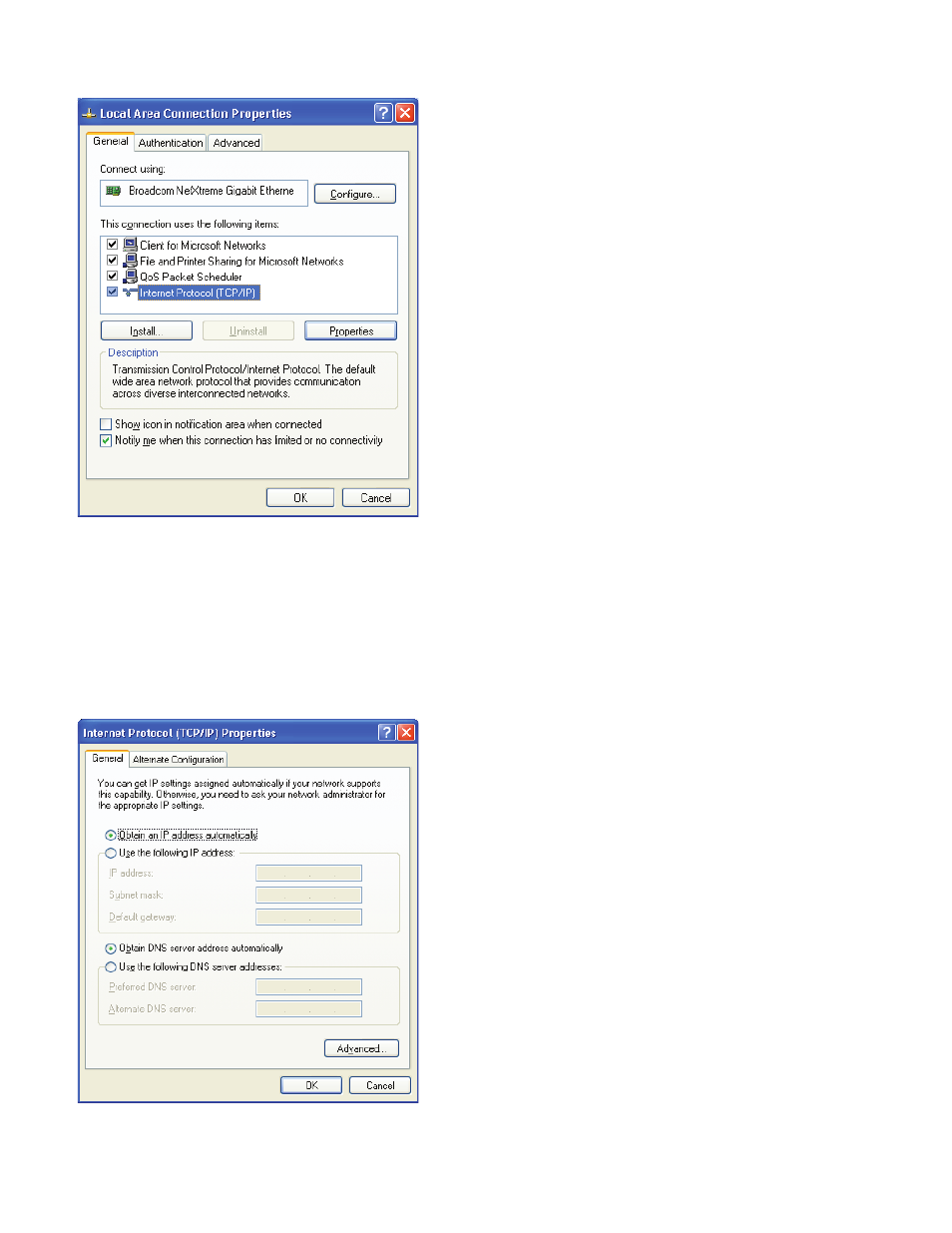

5. In the Local Area Connection Properties dialog box, under “This connection uses the following items,” select Internet
Protocol (TCP/IP) and click Properties.
There are many ways to configure a computer to communicate with a TS-5 series console. These factors are dependant
on the user’s computer knowledge and how the computer is currently configured.
To determine which method is best for your site, read the instructions in the following section carefully. Make detailed
notes on the current configuration of the TCP/IP settings on the PC you are using. Read both the “Obtain an IP address
automatically” and the “Use the following IP address” methods before making a choice between the two.
Obtain an IP Address Automatically
Computers commonly use this setting to obtain an IP address automatically.
1. If Obtain an IP address automatically is selected, it may be best to click the Alternate Configuration tab.
