YSI Profiler System USER Manual

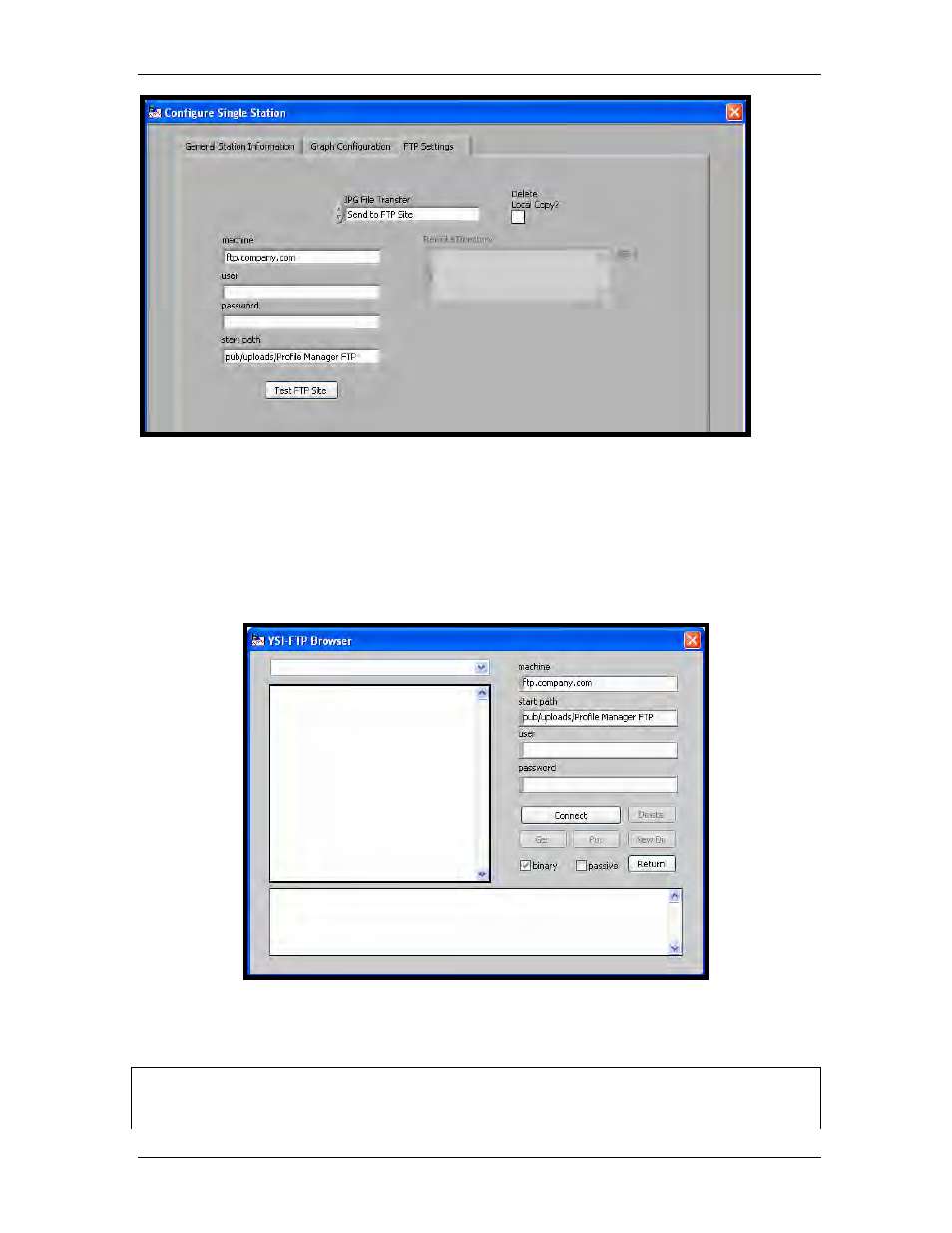

Figure 7-14 Send to FTP Site Option – Information required
Enter the FTP site address, the user name and your password in the appropriate text boxes. If you
know the starting path you can also enter it at this time or you can browse for the graphics folder.
Click on the Delete Local Copy checkbox to delete the local copy after file transfer.
Click Test FTP Site button and the FTP Browser window will appear.
Figure 7-15 Information for FTP Site Option
If the start path, user name and password have not been entered, do so at this time.
NOTE:
To access a remote FTP site you need the address of the site, the directory where the
files are going to be placed, a user name and a password with the appropriate security
YSI Environmental 669523 Rev B Page 7-11
