YSI Profiler System USER Manual

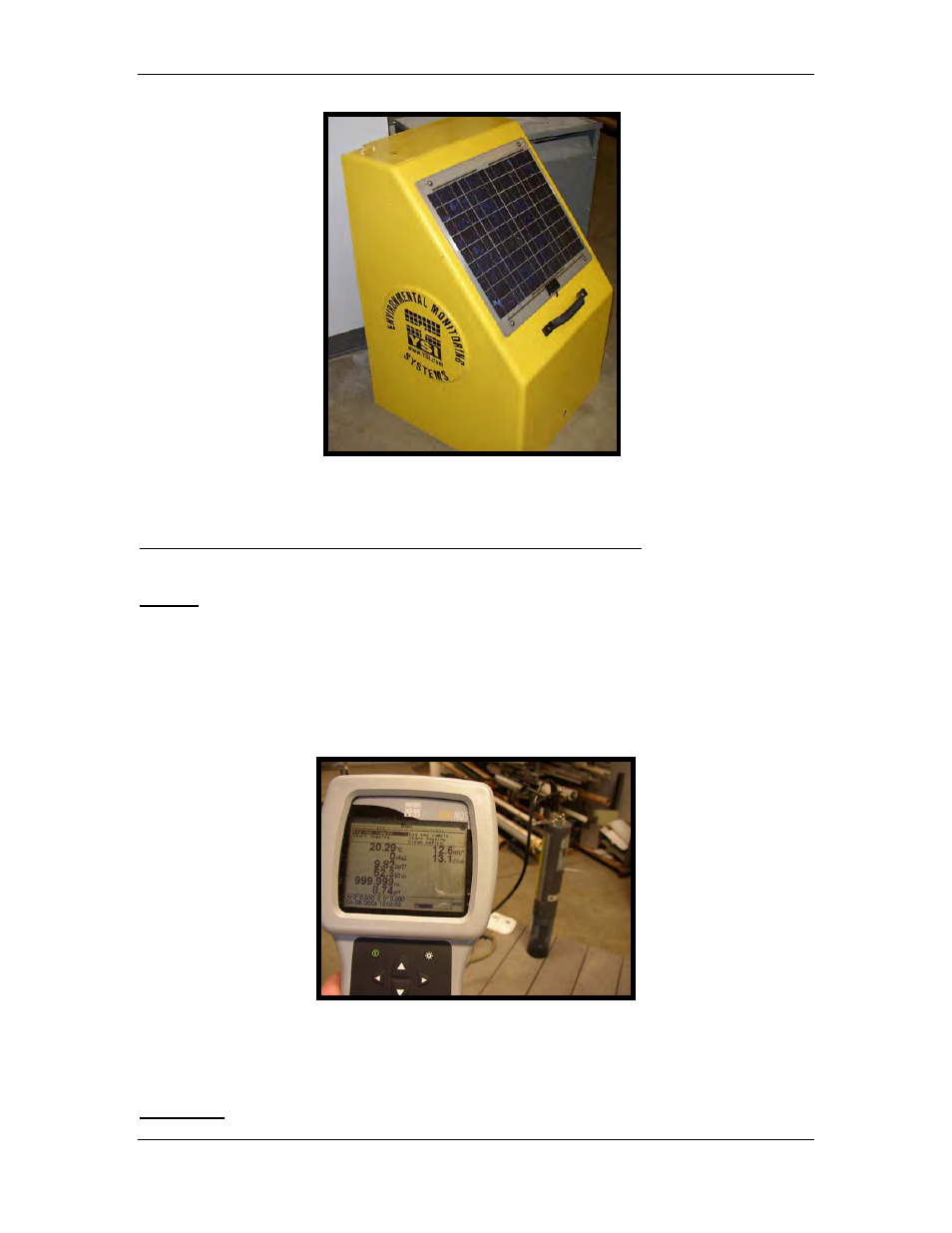

Figure 3-10 Housing with Solar Panel (one of two that mounts to T-frame)
CHECKING & Connecting OTHER COMPONENTS
SONDE
If you do not have the YSI sonde prior to receiving the YSI Profiler System, you will receive
your sonde separately. The YSI sonde pre-deployment configuration was described in Section
3.2, Setting Sonde Parameters. If not yet configured, you can easily check it with the YSI 650
MDS. Alternatively, you may use a PC and terminal emulator program as described in the
previous section. IMPORTANT: The sonde must be configured to work with the Profiler. If you
skipped the configuration steps, take time to read Section 3.2
Figure 3-11 Checking Sonde Configuration during Equipment Staging
ANTENNA
YSI Environmental 669523 Rev B Page 3-14
