YSI Profiler System USER Manual
CONNECT PC TO CR10X DATA LOGGER
In the example below let us assume that you correctly set your connection path (see above) and
the profiling routine that you created with Profile Wizard resides in a directory. The remote
station is Clark Reservoir Site 12, which was defined in Section 2 of this manual. You have
renamed the CR10X station to be GSI-lab600 and there is a DLD file in the Profile Wizard
Shared directory (or site specific folder) by this name. You are able to directly connect
ComPort_1 to the data logger by the Diagnostic Cable and you are set to test the remote
connection via IP address information that was set in LoggerNet Setup.

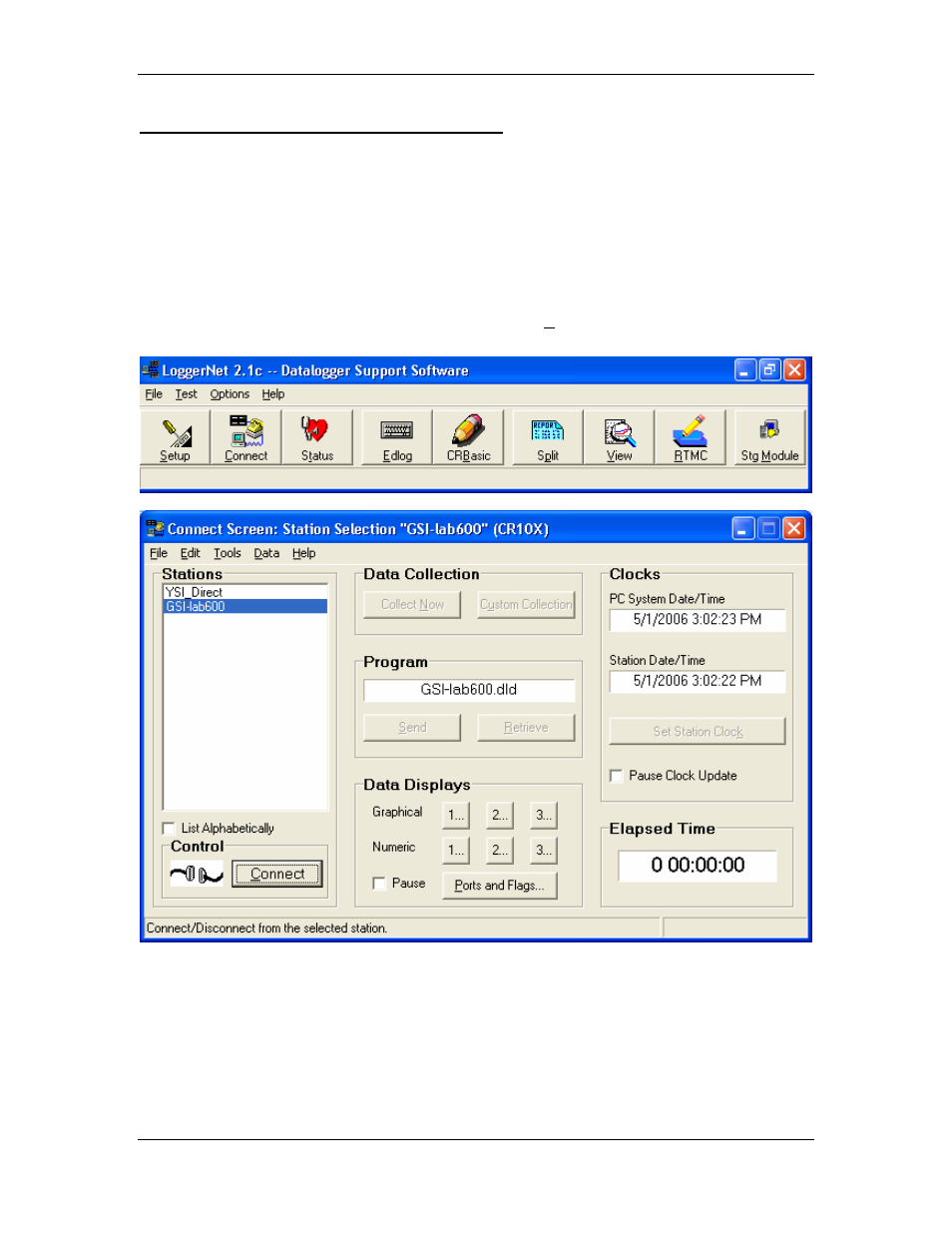

Open the LoggerNet™ tool bar window. Click on the Connect button to open the Connect
Screen.
YSI Environmental 669523 Rev B Page 4-9
