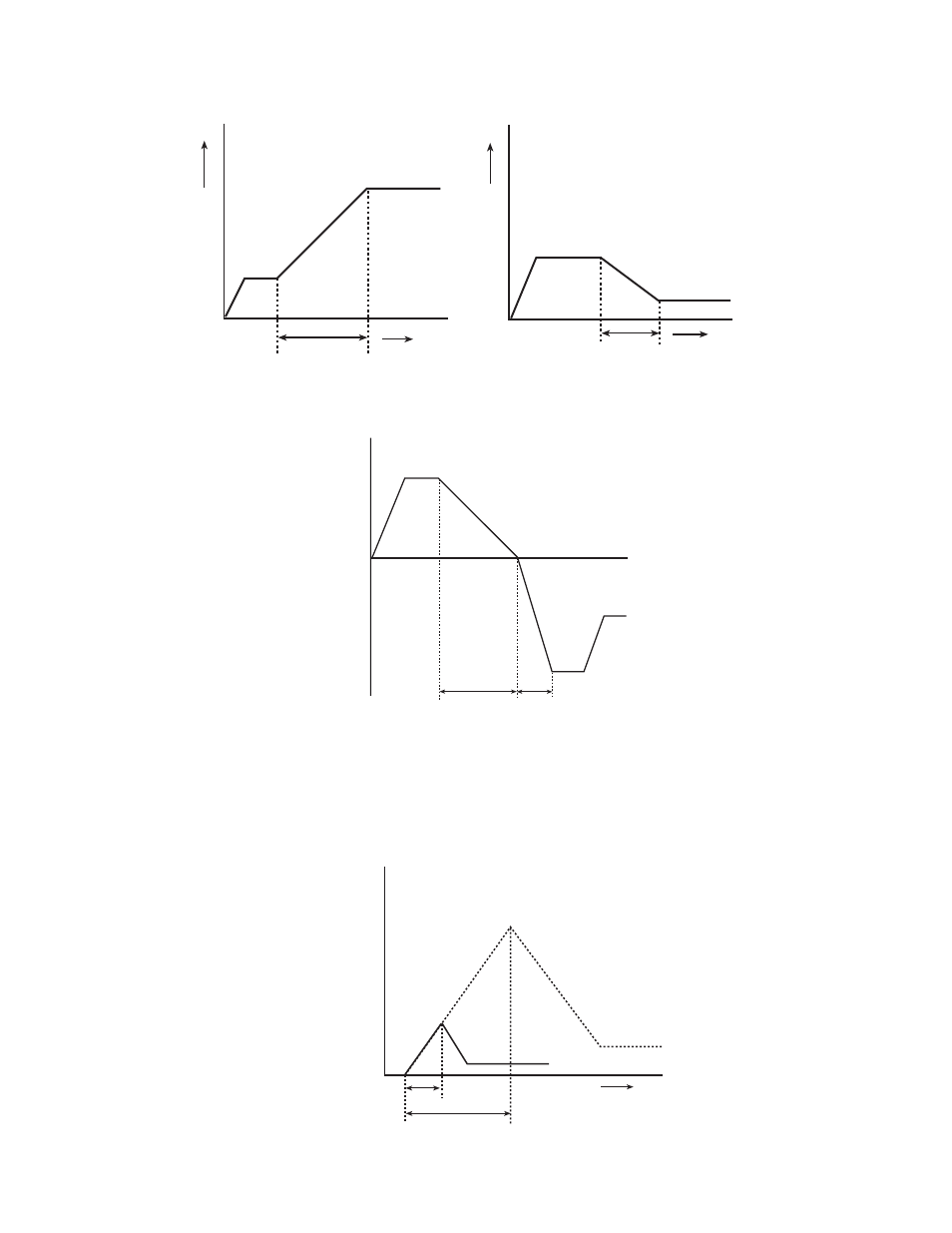

Example 1: when Function Code is 67 (stage 2) 5.00 F1.
Example 2: when Function Code is 67 (stage 2) is set at 5.00R1.
The timer’s setting includes the time required for the
motor to accelerate or decelerate to the set frequency.
Therefore, if the time set on the timer is less than
the time required for the acceleration/deceleration
conditions, it will proceed to the next process, before
the original set frequency is reached.
f f
t
t
Stage 1
Stage 2
Stage 1
Stage 2
Stage 1
t
f
Forward
Reverse
Function Code 06 setting
Deceleration Time
Function Code 05 setting
Acceleration Time
Stage 2 06 05
Stage 1
Stage 2
Stage 2
t
Timer
Required acceleration
time due to load
Output
Frquency
