4-11

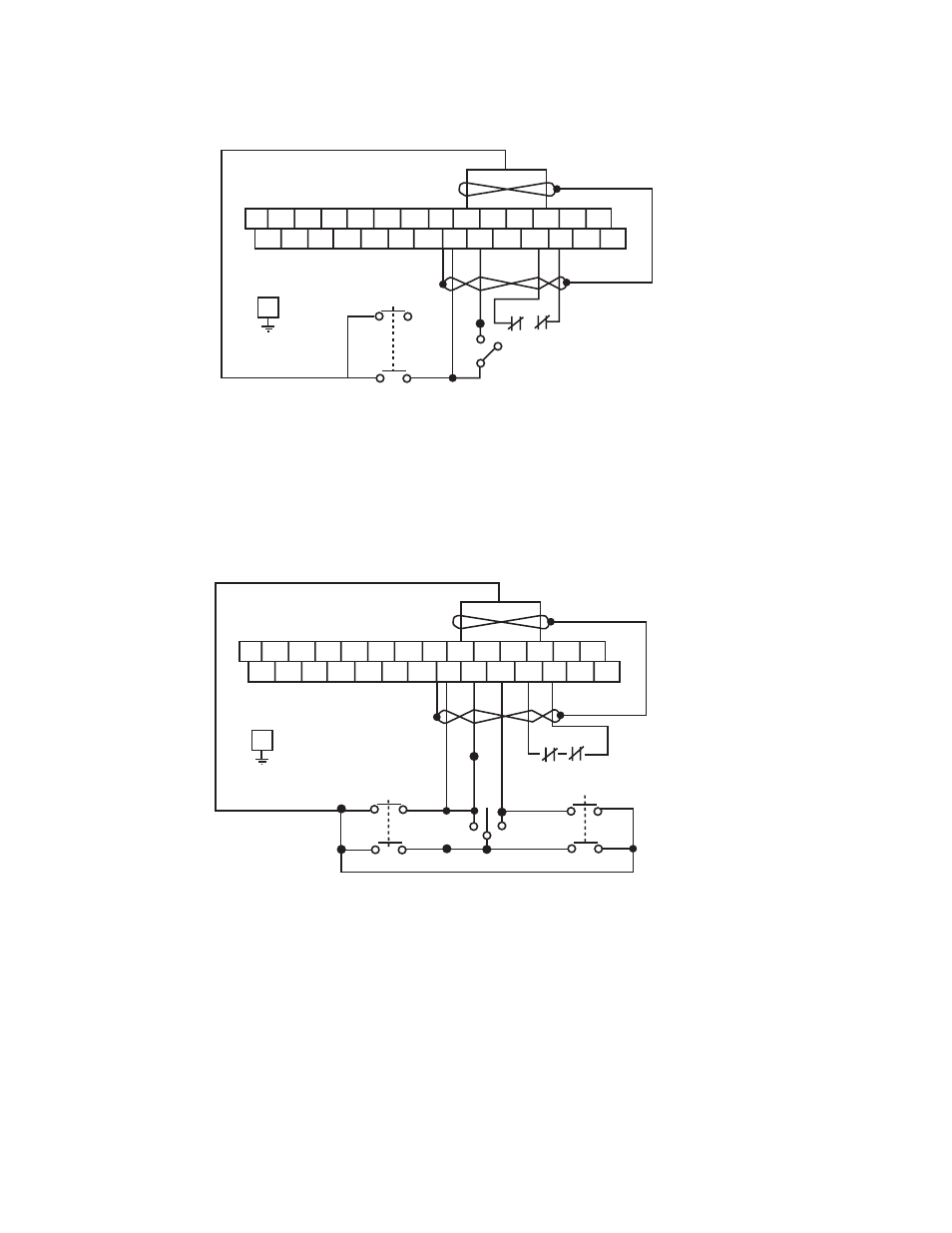

Figure 4-10A. REMOTE OPERATION WITH MAINTAINED contacts and JOG FUNCTION (NON-REVERSING)
Figure 4-10B. REMOTE OPERATION WITH MAINTAINED contacts and JOG FUNCTION with reversing capability
Remote Operation
01=1 (REMOTE)
33 JOG ACCEL TIME SETTING
34 JOG DECEL TIME SETTING
20 JOG SPEED (FREQUENCY) SETTING
NOTE:
CONTACT BETWEEN FWD AND
CM MUST BE OPEN DURING
POWER-UP OR "Er6" TRIP
WILL OCCUR.
NOTE:
CONTACT BETWEEN FWD AND
CM MUST BE OPEN DURING
POWER-UP OR "Er6" TRIP
WILL OCCUR.
#1 CAUTION:
REMOVE JUMPER FROM BETWEEN
TERMINALS THR AND CM WHEN
THERMAL INTERLOCKS ARE USED.
#2 CAUTION:
REMOVE JUMPER FROM BETWEEN
TERMINALS FWD AND CM.
01=1 (REMOTE)
33 JOG ACCEL TIME SETTING
34 JOG DECEL TIME SETTING
20 JOG SPEED (FREQUENCY) SETTING
STOP
RUN
JOG
E
#2 #1
30A 30B Y1 Y2 Y5 C1 FMA FMP X1 X2 X3 X4 X5 RST
30C CME Y2 Y4 11 12 13 CM FWD REV CM THR HLD BX
JOG
E
#2 #1
30A 30B Y1 Y2 Y5 C1 FMA FMP X1 X2 X3 X4 X5 RST
30C CME Y2 Y4 11 12 13 CM FWD REV CM THR HLD BX
JOG REV
OFF
F R
