GE Industrial Solutions AF-300E$ - Manual (Page 84)

LCD
GRAPHIC
FACTORY
FUNCTION DISPLAY SETTING DESCRIPTION SETTING
6-27
65 Pattern Operation (cont’d)
NOTES : – When Function Code 65 is set
to 1, 2 or 3, pattern operation is made
possible by setting the multi-step
frequency combination of stages 1 through 7
(Function Codes 66 through 72).
– When in the pattern operation,
frequency changeover via the X1, X2 and X3
terminals is not required.
– Pattern operation switches to set
frequencies 1 through 7 in ascending numerical
order only.
– To set motor’s direction of
rotation and acceleration/deceleration time,
utilize Function Codes 66 through 72.
– If each subsequent frequency is
higher or lower than the present frequency, the
acceleration or deceleration time will be auto-
matically selected based on the Stage setting
(Function Codes 66 through 72).

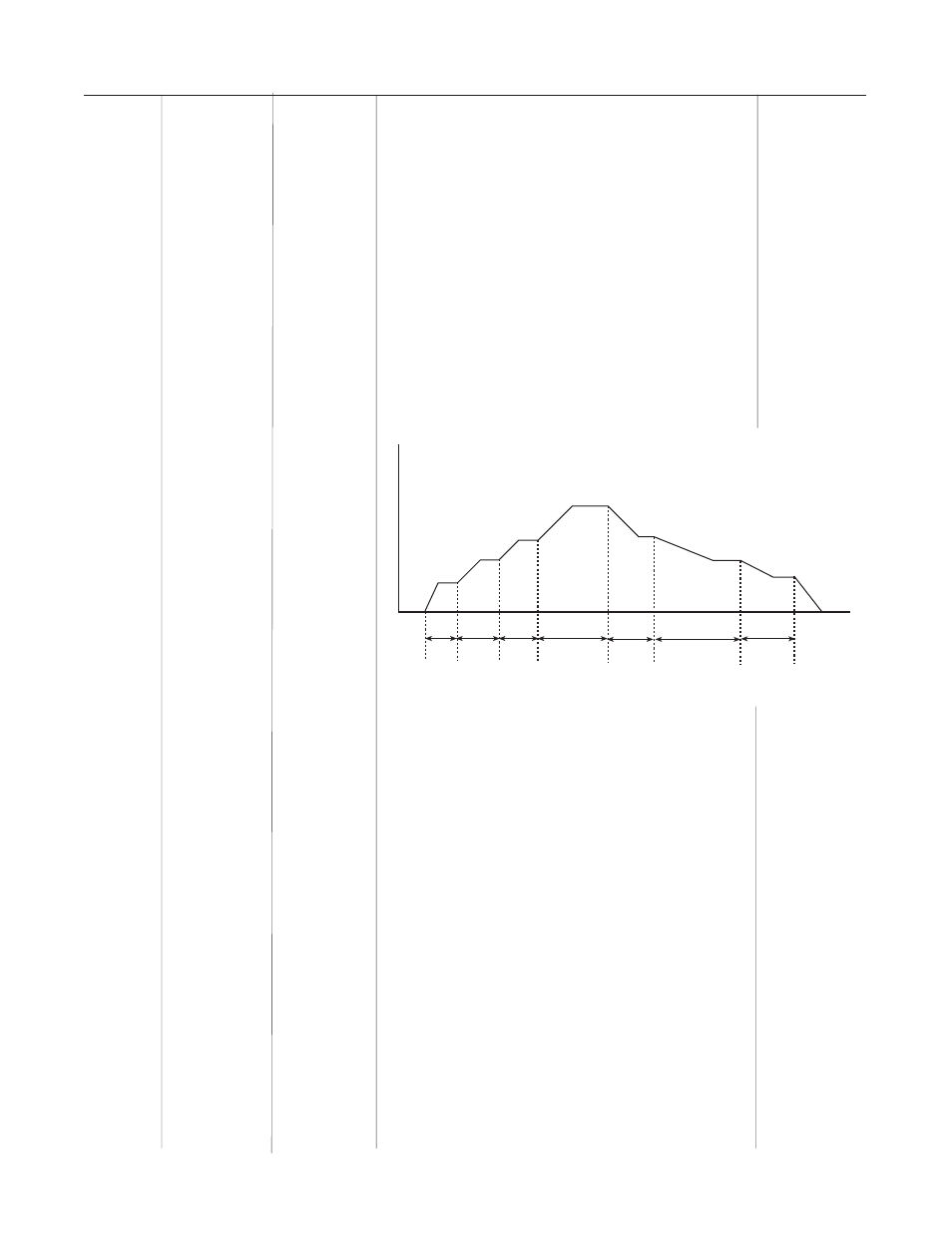

Time
Stage1
Time
Stage2
Time
Stage 3
Time
Stage 4
Time
Stage5
Time
Stage6
Time
Stage7
Stage 1
Stage 2
Stage 3
Stage 4
Stage 5
Stage 6
Stage 7
