3-8

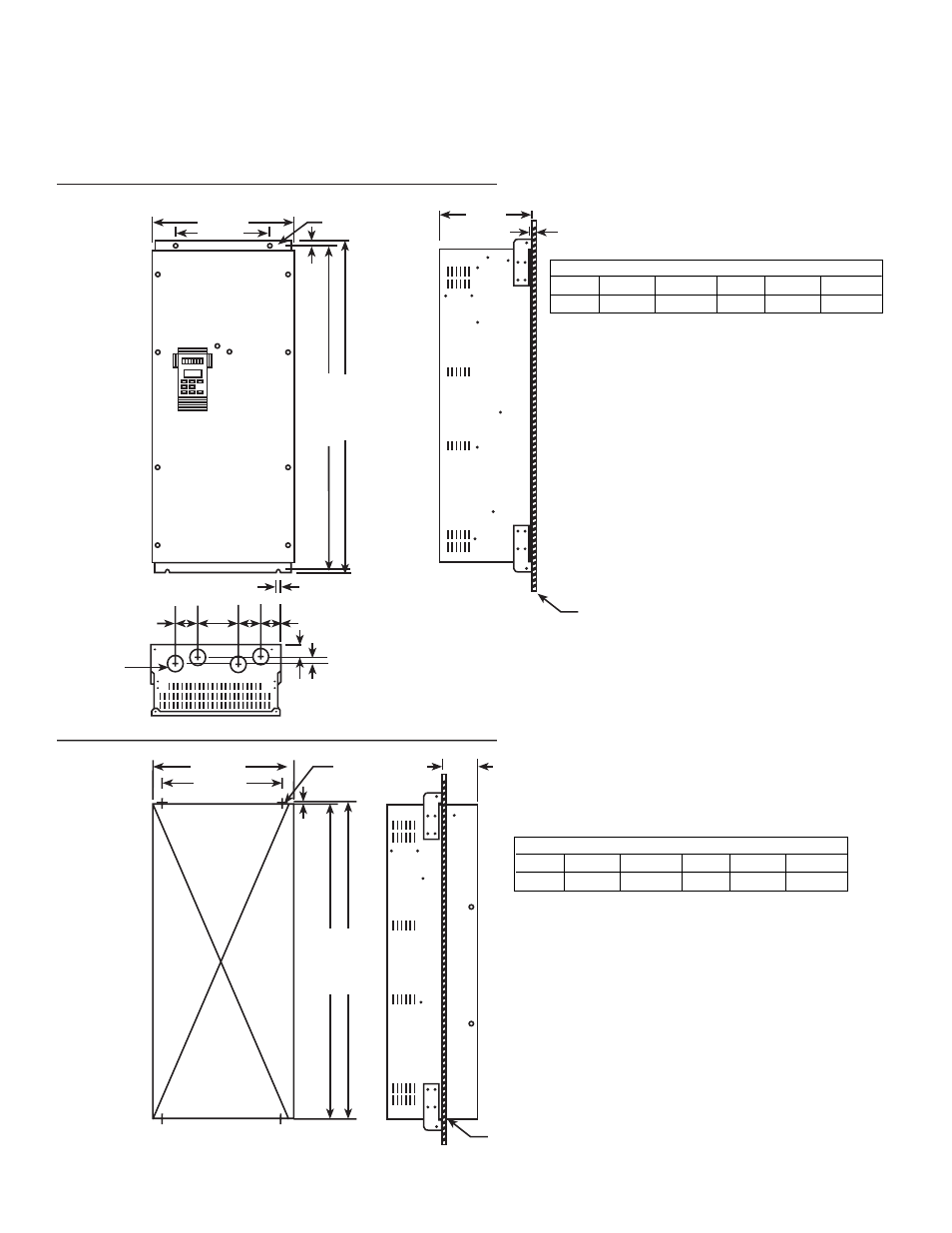

Dimensions 50 Hp 460 VAC
Dimensions in inches (mm)
14.8 (375)
10.8 (275)
2-ø 0.4 (10)
0.5 (12)
AF-300E$
BACK PANEL MOUNTING
32.7 (830) 33.5 (850)
0.4 (10)
THROUGH PANEL MOUNTING
0.1 (2.3)
9.7 (245)
BACK PANEL 2.6
(65)
3.8
(97)
2.8
(70)
2.3
(58)
1.6 (41) 1.0 (25)
4-ø 1.9 (48)
wire inlet
Knock out hole
32.7 (830)
14.2 (361)
10.8 (275)
0.4 (9)
32.0 (812)
BACK PANEL
4-MB (0.3) 4.1 (105)
AF-300E$ Back-Panel Mounting: Interior Watts Loss
Hp (CT) 0 setting 10 setting Hp (VT) 0 setting 10 setting
50 900 1200 60 950 1150
AF-300E$ Thru-Panel Mounting: Interior Watts Loss
Hp (CT) 0 setting 10 setting Hp (VT) 0 setting 10 setting
50 270 360 60 285 345
