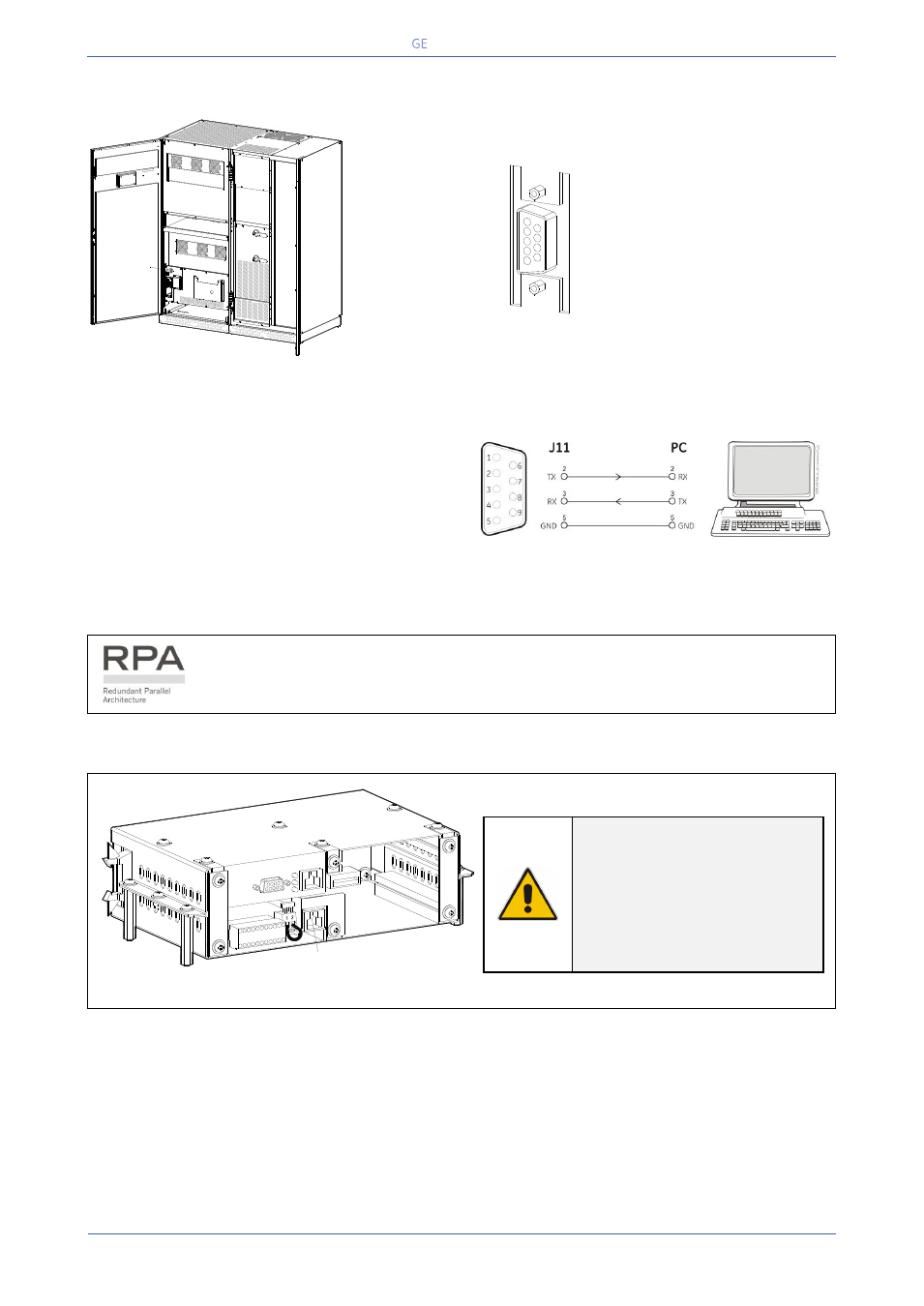

5.1 SERIAL PORT J35µP - RS232 (SUB D, FEMALE 9 PIN)
Fig. 5.1-1 Serial Port J35µP – RS232
Serial Port J35µP - RS232 for IMV
protocol
Total remote management of the
system using software GE
iUPSGuard, GE Data Protection or
GE Service Software for system
protection and management of
the UPS systems.
Connection of a serial printer
From the display panel it is possible to select
printing of measurements, alarms and parameters
(see User Manual to Section 6.4 – SETUP / PRINTER).
Fig. 5.1-2 Serial port J35µP connection to PC with RS232 1:1 cable
DB9m – DB9f
The serial port J35µP - RS232 is enabled on all the units of the RPA Parallel
System.
Fig. 5.1-3 Connector J1 – RJ45 8P8C
NOTE !
The serial port J35µP - RS232
is enabled also in case the J1-
RJ45 connector of the “P4 -
Customer
Interface” (see
Section 5.2.1) is already
connected.
TLES_UL_400- 500_S1_U PS-J35_01
Q1
1 2
I ON
0 O FF
Q2
I ON
0 O FF
EP O EP O - +
J35µP - RS232
J35 µP - RS232
J1 - RJ45
SGSE_ 400-500_S
3_Custom er interfa ce-J1-R J45_01
20 1 2 3
12 13 14
4
17 15 16 18 19
5 6 7 8 9
21 22
10 11
SNMP card
