4.8.1 TLE Series 225 & 250 - Power connection with Common Input Utility

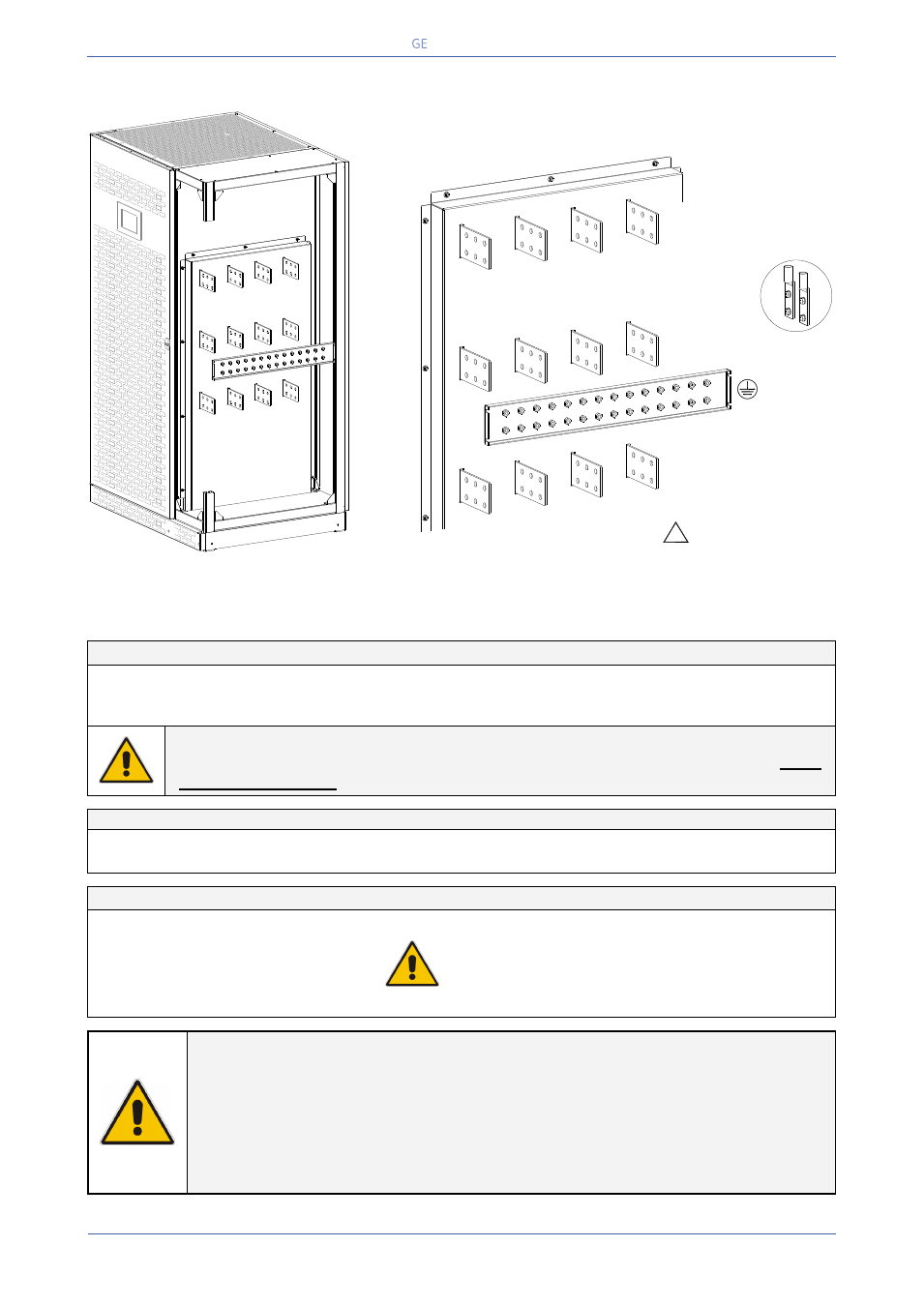

Fig. 4.8.3-1 TLE Series 225 & 250 - Power connections Common Input Utility
Power connection cables are connected to bus bars using M10 bolts.
The bolts of the connection cables must be tightened with a torque wrench at 355 Lb-in / 40 Nm.
Common Input Utility - Rectifier / Bypass
L1-1 Rectifier + Bypass Phase A (L1)
L2-1 Rectifier + Bypass Phase B (L2) N Neutral
L3-1 Rectifier + Bypass Phase C (L3) PE Ground
NOTE !
The interconnection links BR1, BR2 and BR3 (option) on the input bus bars MUST
REMAIN CONNECTED.
Output Load
L1 Load phase A (L1) L2 Load phase B (L2) L3 Load phase L3
N Neutral Ground
External Battery connection
+ Positive pole of the battery UPS PARALLELED ON THE SAME BATTERY:
This configuration is not possible for UPS Parallel
System TLE Series 225 & 250.
Before closing the “External Battery Fuses”, verify for
correct polarity of the battery connection.
- Negative pole of the battery
PE Battery cabinet ground
NOTE !
To meet standards concerning electromagnetic compliance, the connection between the
UPS and external Battery must be done by using a shielded cable or suitable shielded (steel)
conduit!
This UPS is only designed to operate in a wye-configured electrical system with a solidly
grounded neutral.
If the UPS is equipped with an input bypass transformer, the secondary of the transformer
must be wye-configured with neutral solidly grounded.
+
-
Typical installation
using common NEMA
two hole lugs
PE
TLES_UL_22 5-250_S1_ UPS conne ction comm on_01US
1
Rectifier & Bypass
Utility
L1-1
N
Utility Neutral
Load Neutral
Load
L1
L2-1
L2
L3-1
L3
INTERCONNECTIONS LINKS
BR1, BR2 and BR3
MUST REMAIN CONNECTED
!
