Critical Power
Modifications reserved Page 39/54
GE_UPS_ISG_TLE_SUL_M22_M50_1US_V010.docx Installation Guide TLE Series 225 - 500 UL S1
Installation notices in case of power connection with Dual Input Utility

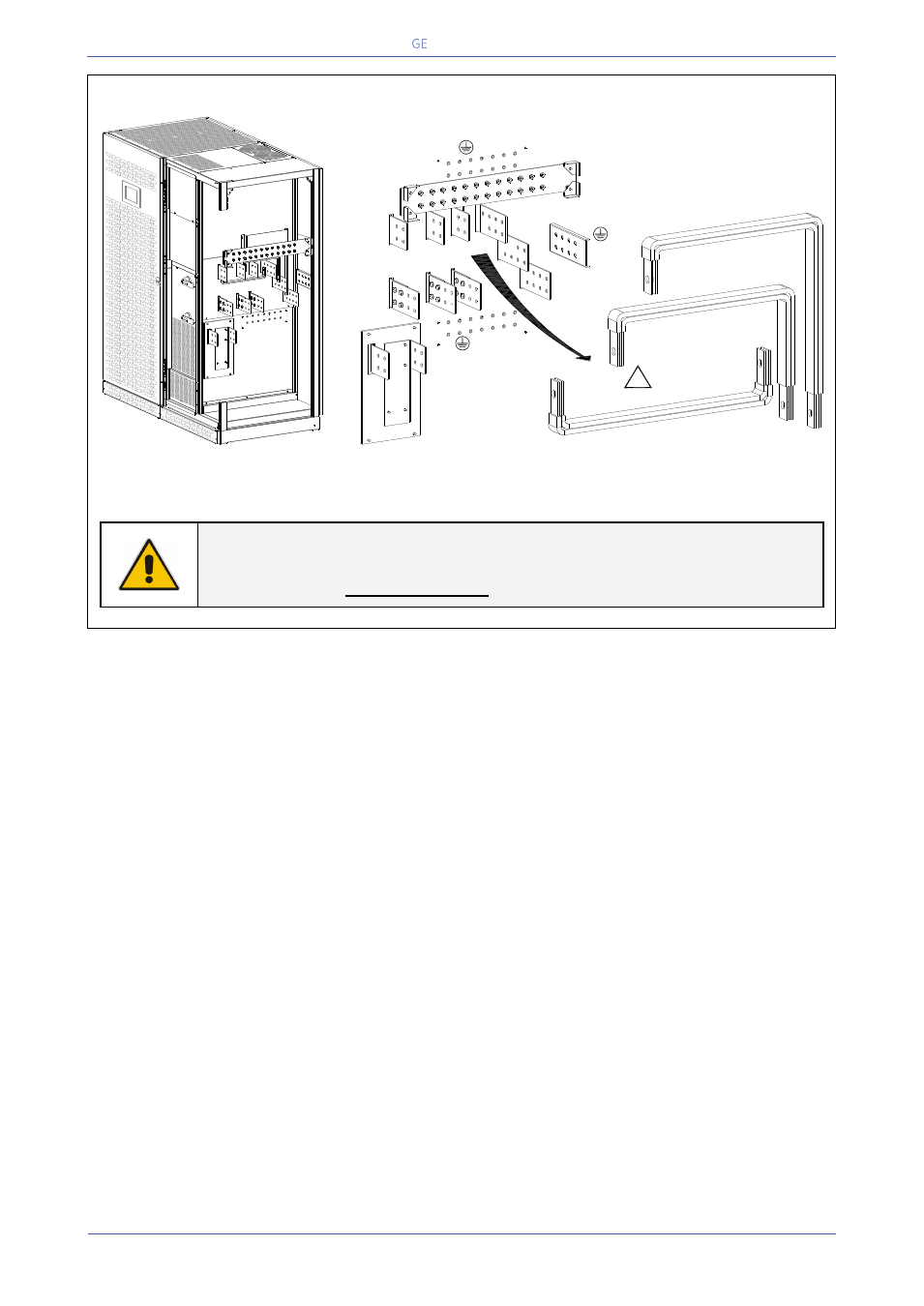

Fig. 4.8.4-2 TLE Series 400 & 500 - Interconnection links BR1, BR2 and BR3
NOTE !
For separate Bypass and Rectifier input configuration, the interconnection links
BR1, BR2 and BR3 MUST BE REMOVED (see Fig. 4.8.4-2).
+
-
PE
L3-1
L1-2
L2-2
(with bottom cable entry)
PE
N
Utility Neutral
Load Neutral
L3-2
Load
2 - Bypass Utility
1
Rectifier
Utility
PE PE
(with top cable entry)
L3
L2
L1
Q2
Q1
TLES_UL_4 00-500_S1 _UPS BR1-2 -3_01US
L2-1 L1-1
BR1, BR2 and BR3
MUST BE REMOVED
!
BR1
BR2
BR3
PE
Attention:
Use only as
additional PE
36
37
38
38
37
36
