Critical Power

Modifications reserved

Page 46/54

GE_UPS_ISG_TLE_SUL_M22_M50_1US_V010.docx

Installation Guide TLE Series 225 - 500 UL S1

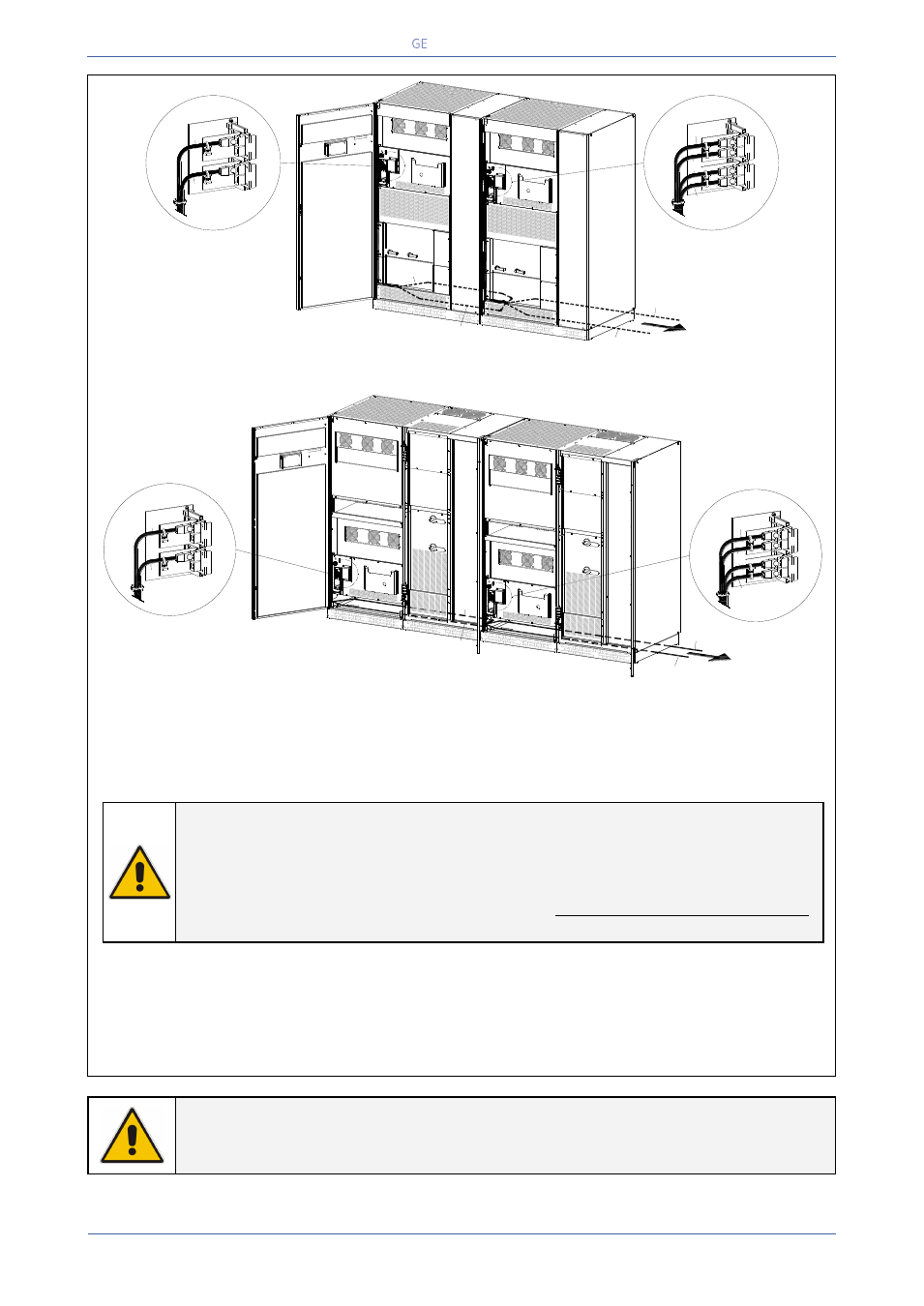

Fig. 4.9.3-4 TLE Series 225 & 250 - Control Bus cable routing and connection

Fig. 4.9.3-5 TLE Series 400 & 500 - Control Bus cable routing and connection

Control bus cables routing

Place and fix the cables J1A – J2A (1/2/3/4/5) and J1B – J2B (1/2/3/4/5) inside the UPS cabinets in
the position illustrated in the drawing Fig. 4.9.3-4 and 4.9.3-5.

NOTE !

Pay attention when cabling and routing the communication bus cables J1A – J2A
(1/2/3/4/5) and J1B – J2B (1/2/3/4/5) inside the UPS cabinet.
In case one unit must be removed from the Parallel System, the communication
bus cables must be taken out the UPS cabinet WITHOUT DISCONNECTING THEM
from the two boards “P13/P14 – IM0022 – Bus Interface Board”.

For reliability reasons the cables J1A – J2A (1/2/3/4/5) and J1B – J2B (1/2/3/4/5) connecting the units
should be run in separated protected conduits (as indicated in Fig. 4.9.3-3) separated from the
power cables.

It is important that the cable J1A – J2A (1/2/3/4/5) must be the same length as cable J1B – J2B
(1/2/3/4/5).

WARNING !

Connection and commissioning of an additional UPS to an existing Parallel System
must be performed by a service engineer from of your Service Center.

TLES_UL_225-

250_S1_R

PA connec

tion_03US

I ON

J1B/1

J1A/1

UPS 1

J1B/1

J1A/2÷5

J1A/1

J1B/2÷5

UPS 2/3/4/5

J1B/1

J1A/1

UPS 1

J1A/2÷5

UPS 3, 4, 5, 6

J1B/2÷5

UPS 2

UPS 3, 4, 5, 6

J1B/2÷5

J1A/2÷5

J1B/1

J1A/2÷5

J1A/1

J1B/2÷5

UPS 2/3/4/5

J1B/1

J1A/1

J1B/1

J1A/1

UPS 1

TLES_UL_40

0-500_S1_

RPA connect

ion_03US

I ON

- +

I ON

- +

UPS 2
