Ethernet Configuration 44
Last 3 options appears only in the
Scanguide=SG21 version

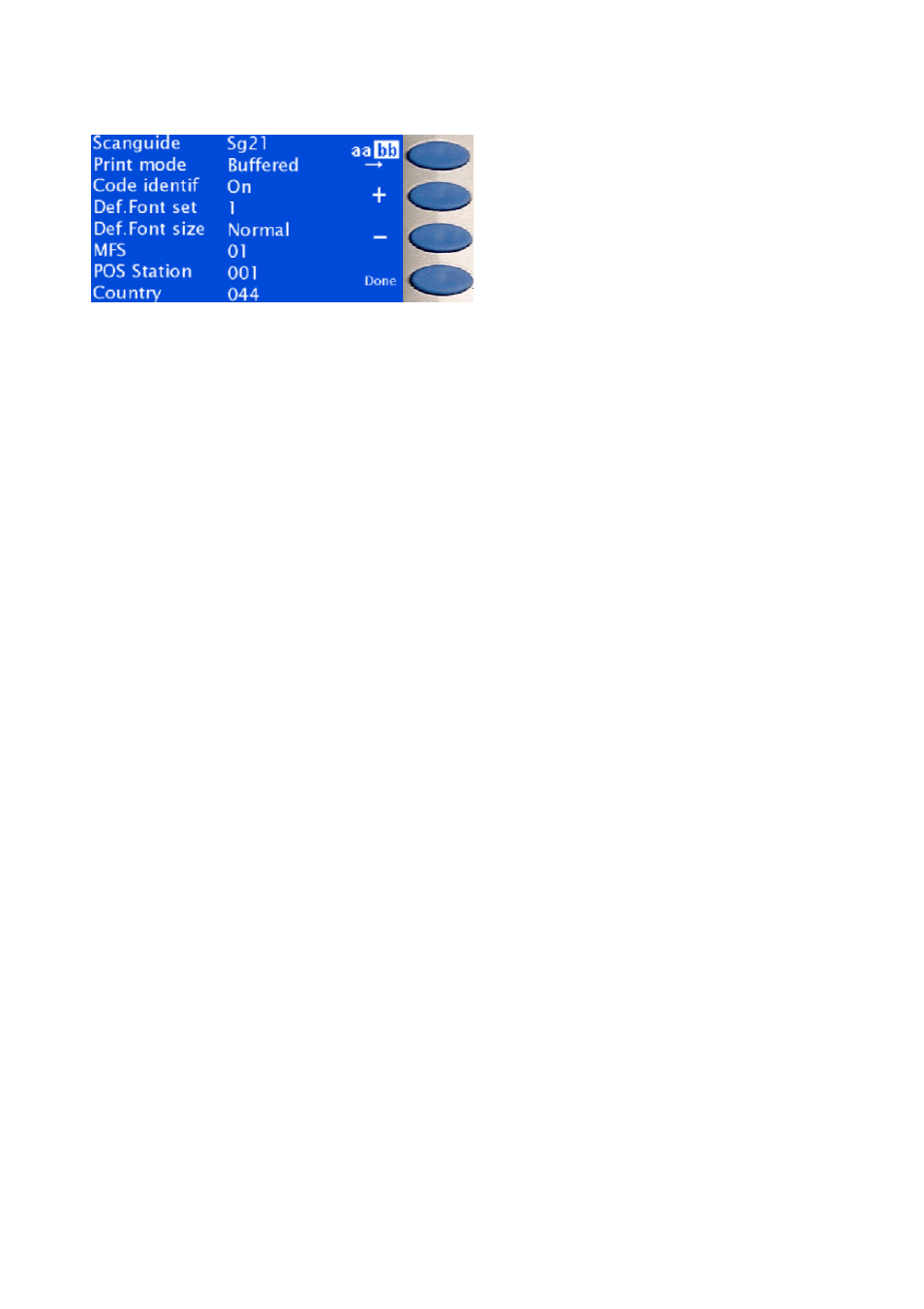

This screen offers some default behaviour settings:
- Scanguide: Behaviour of the Discovery : SG20, SG10 or SG21. This
option consists of a macro, which modifies a number of
settings. Other settings than the ones mentioned here,
remain unmodified.
SG20 :
Scrolling messages/images : Enabled
Scrolling messages/images order of appearance : Scantech default
(alternating showing 5 messages and 12 images)
Static text : Disabled
Barcodes with code identifiers
RS232 settings :
o Echo = on
o RtsCts = off
o Suffix = CRLF
Default fontsize = small
SG10 :
Scrolling messages/images : Enabled
Scrolling messages/images order of appearance : Only use messages 1 and
2
Static text : Disabled
Barcodes without code identifiers (if RS485, then code identifiers are always
on)
RS232 settings:
o Echo = off
o RtsCts = off
