System Integration

Power :
(use either

2.0mm (left) or

1.3mm (right))
Center = ground.

Host : Female port for 6-pin shielded
AMP5-555175-2 connector from
back office system (RS-232)
(Alternative for 9p Sub D-conn on other side of box)

ScanGuide : Female port for 8-pins
AMP 554169-1 connector
towards Discovery(s)

LEDs :
Green: RS-232 RX-data

(from Host to SG-20)

Red: Power On
Green: RS-232 TX-data

(from SG-20 to Host)

Host : 9-pin Sub-D Female port for
1-1 cable from back office system
(RS-232)

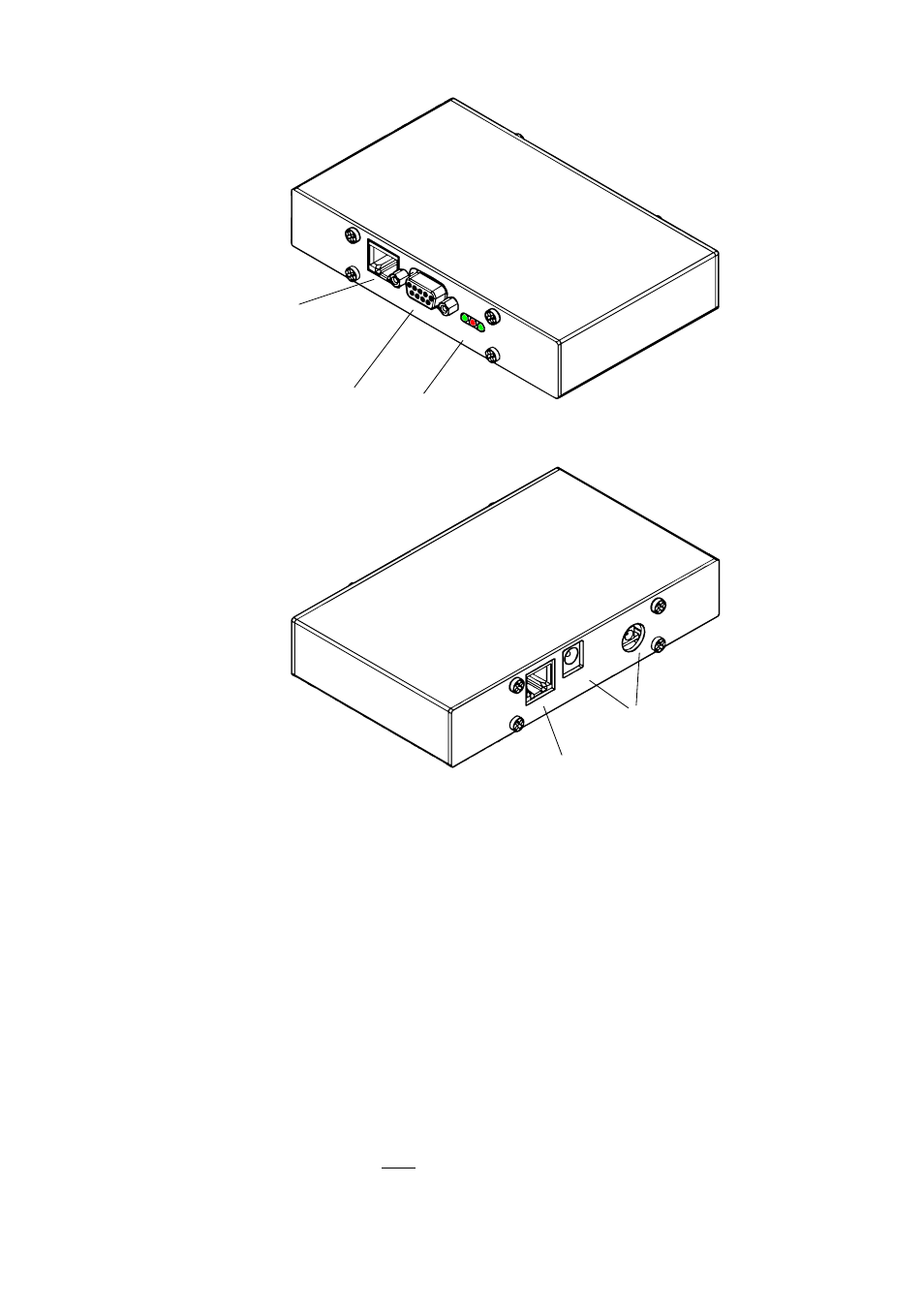

Network Box Version 2

Install the network box as follows:

1. Plug the cable coming from the Discovery into the “ScanGuide” port of the

network box.

2. Plug the cable coming from the back office system into the Host port of the

network box. (For Classic Version: RJ-45 connector, for Version 2: 9-pin

Sub-D connector or RJ45 conn.).

3. Plug the secondary powersupply connector into the powersupply port.

(With Version 2 choose the one powersupply port matching to your

powersupply plug).
