Scantech-ID Discovery SG-20 11
2.2 CONSTRUCTION OF THE DISCOVERY SG-20

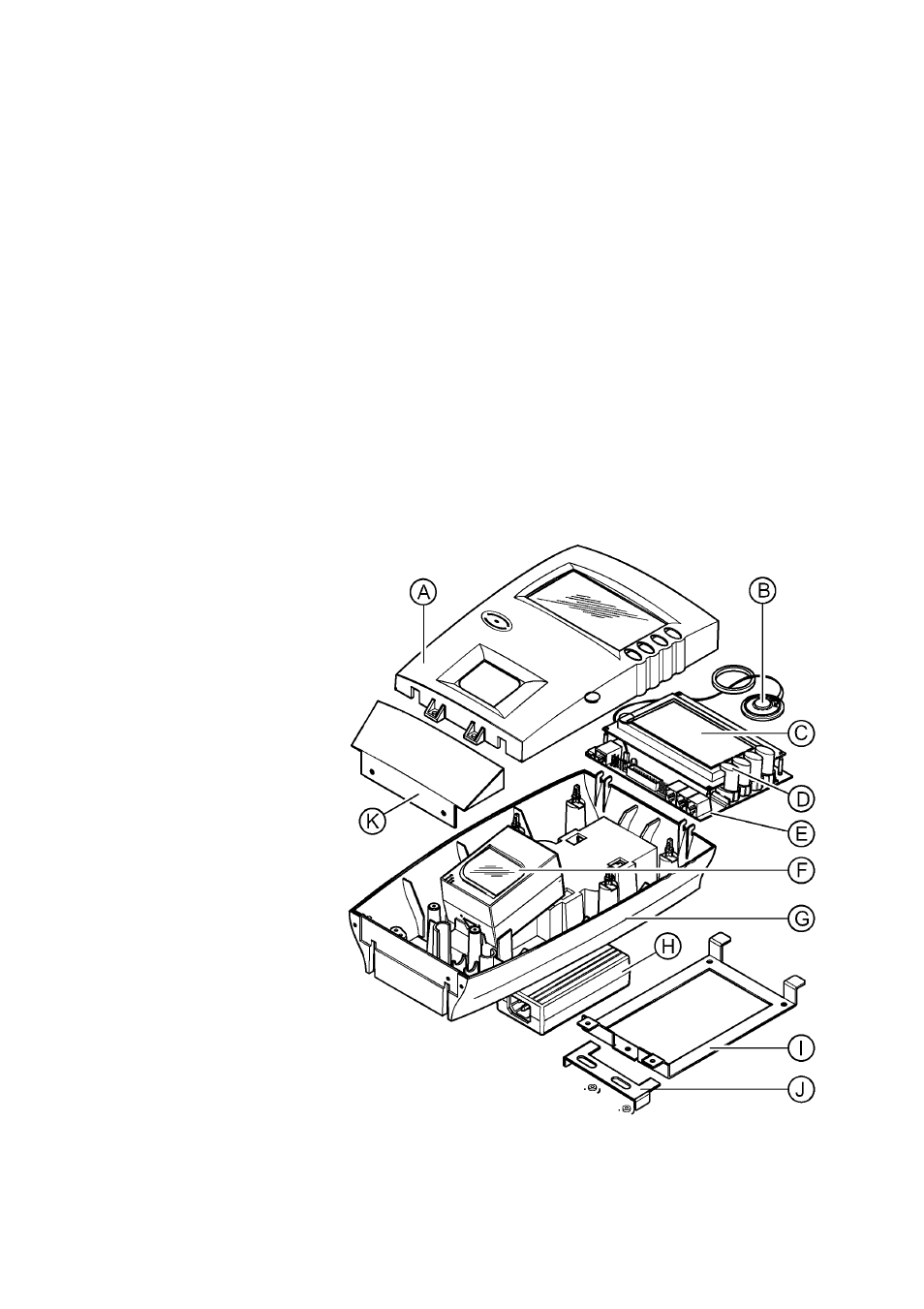

The various parts of the Discovery are indicated in figure 2.1:
A. Cover with window
The window has an anti-reflecting coating.
The cover with the integrated window can be easily replaced;
B.
Speaker;
C. Graphical LCD;
The display size is 240x128 pixels.
The display features white characters on a blue backlit background.
D.
Buttons for display control;
E.
Main board;
F. Scantech scanner;
G. Rear panel;
H. Power supply;
I.
Bracket;
J. Lockplate;
K.
Cap.
