Draw-Tite 30095 FIFTH WHEEL RAILS - Manual (Page 8)

30095N 1/30/12 REV. H
©2012 Cequent Performance Products, Inc. PRINTED IN XXX 8

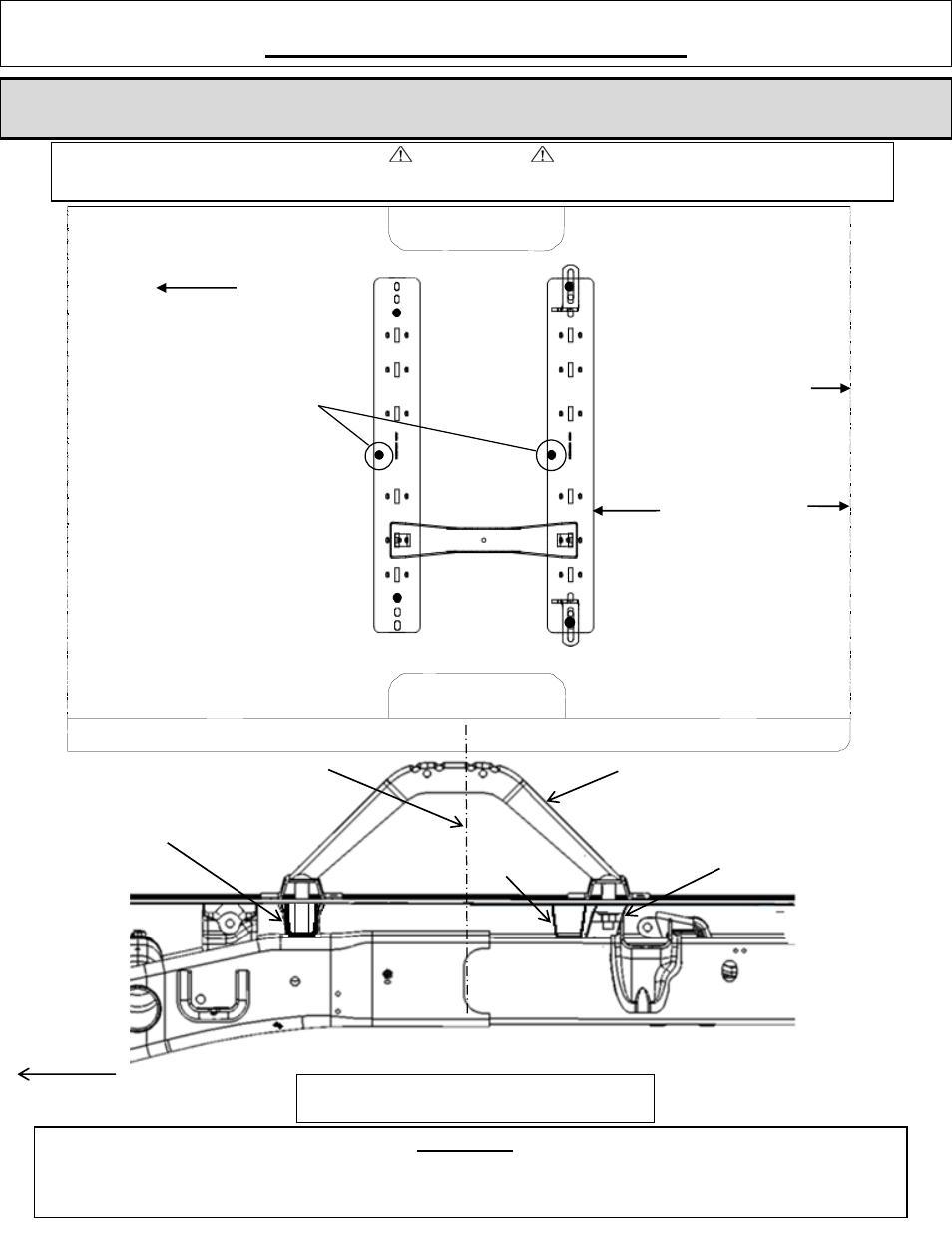

Front of Vehicle
27 7/8 ” Long Bed
25 7/8” Short Bed
Measure from Rear Edge of
truck bed to rear edge of base
rail.
Rear Edge of
Truck Bed
Fifth wheel hitches over 18k
must have a center bolt in the
center hole in both rails.
Note: Place center bolt in the
hole that does not interfere with
the bed sill. If needed, flip the
rail around.
Center bolts and hardware are
supplied with Fifth wheel or
gooseneck hitches that are rated
over 18k.
Angled bracket
(Inside of Frame)
Front of
Vehicle
Bed sill
U- Shaped Bracket.
Placed around bed
sill.
1/4 2
CAUTION!
Read pages 1-3 of these instructions before starting installation. Failure to do so could result in significant vehicle damage!
02-08 DODGE 1500
2002 – PRESENT DODGE 2500 – 3500 LONG BED & SHORT BED
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.
Cequent Performance Products, Inc. does its best to communicate tow vehicle manufacturer changes; however, it is ultimately
the responsibility of the installer to prevent damage due to installation.
Note: Pull wire provided, will be needed to install
hardware in brackets through frame.
See the following page for more detailed information.
5 th Wheel Leg KING PIN CENTERED
APPROX OVER AXLE
CENTER
*** NOTE: 2009-CURRENT DODGE 1500 LONG BED & SHORT BED – REQUIRES ADAPTER KIT 58433
SEE 58433 INSTRUCTION FOR INSTALLATION
