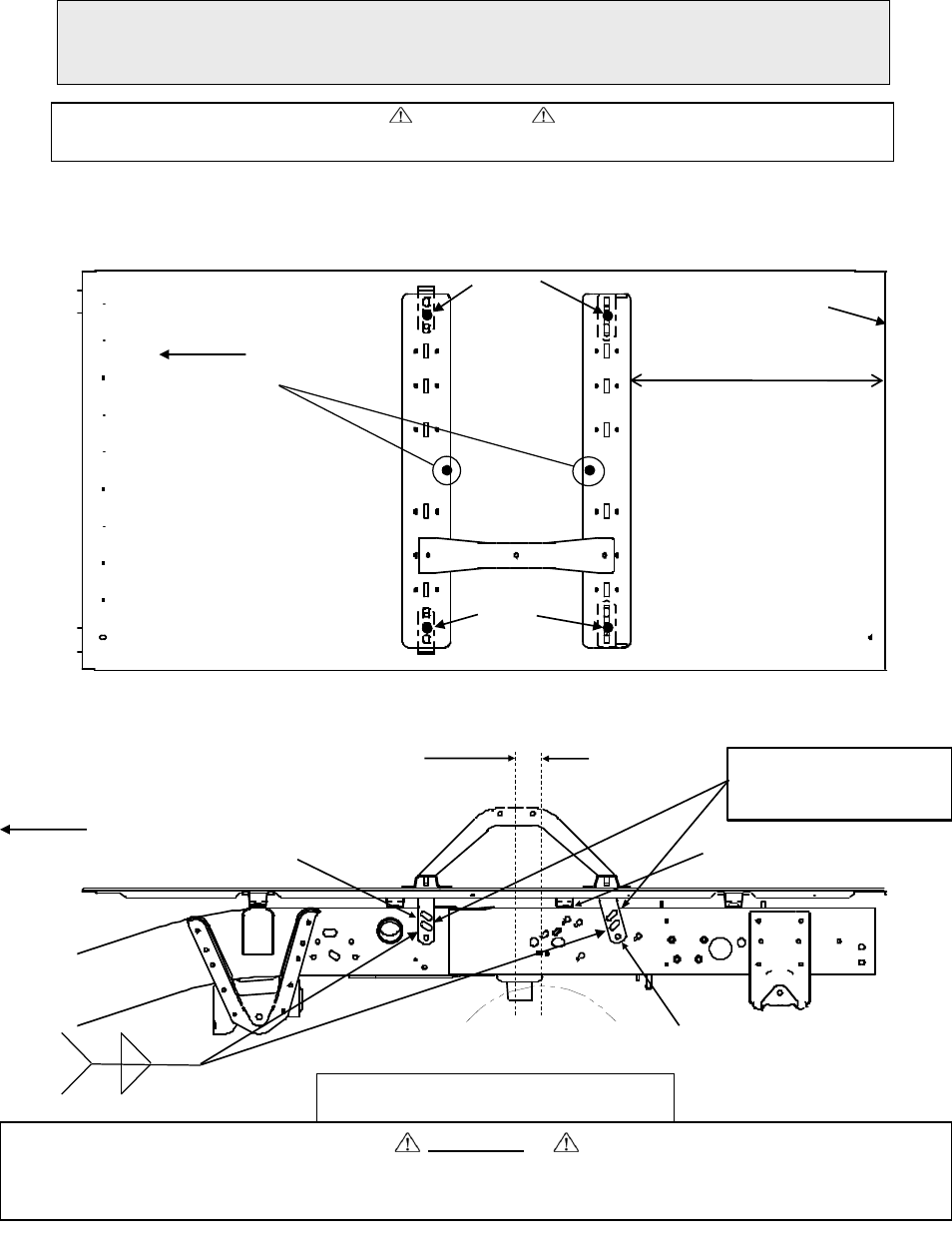

Front of
Vehicle
Fifth wheel hitches over
18k must have a center
bolt in the center hole in
both rails.
Note: Place center bolt in
the hole that does not
interfere with the bed sill. If
needed, flip the rail around.
Center bolts and hardware
are supplied with Fifth
wheel or gooseneck
hitches that are rated over
18k.
Rear Edge of
Truck Bed
Measure from rear edge of
truck bed to rear edge of
base rail
CAUTION!
Read pages 1-3 of these instructions before starting installation. Failure to do so could result in significant vehicle damage!
GM ‘99 Silverado, Sierra (not Sierra Classic) models
Chevy & GMC ‘00 to 10 Silverado, Sierra including HD models, and ’04 & up 1500 Crew
Cab with 5’8” bed (Reese ™
Sidewinder ® Pinbox
required for 5’8” bed)
Long Bed =31”
Short Bed =23 1/2”
*
Drivers side of 3/4 ton
Chevy Long Box Shown
King Pin Center approx.. 3- 1/2”
forward of Axle Center
Axle Center
Bed Sill
Front of
Vehicle
Angled Bracket
1/4 1.5-3
1/4 2
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc. Cequent
Performance Products, Inc. does its best to communicate tow vehicle manufacturer changes; however, it is ultimately the responsibility of the
installer to prevent damage due to installation.
Note: Pull wire provided, will be needed to install
hardware in brackets through frame.
IMPORTANT NOTES FOR THIS INSTALLATION:
1. Find parallel rows of bed sill spot welds in bed of truck. No drilling should be done in the approximately 4 ” between
parallel rows of spot welds where the bed sill sets.
Center
Hole
Center
Hole
Straight Bracket
Left, right angle and frame
brackets may be placed
wherever brackets fits best.
* Optional weld
pattern
